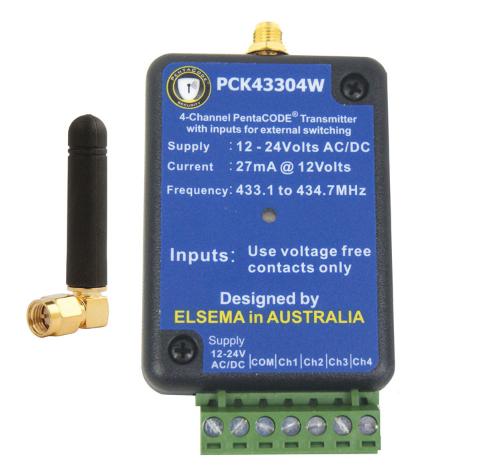

The PCK43304W is a 4-channel PentaCODE®transmitter with terminals to connect external normally open contact closures. You can wire in push buttons or easily integrate it into your existing equipment.
The PentaCODE®dual coding system gives the installer the option to use the classic 12-way dip switch coding or one of over 17 billion encrypted codes.

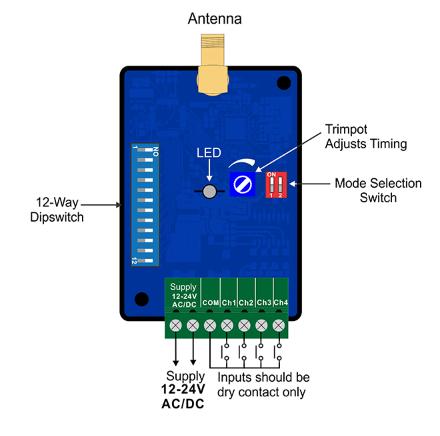

With the 12-way dip switch, just match the transmitters and the receivers dip switch and it’s coded. With the encrypted code you switch all the 12-way dip switches OFF and the remote and receiver automatically goes into the encrypted coding. Please see coding instructions for encrypted coding procedure.
2 to 24 Volts AC/DC supply
Operating range: 500 metres
12-way dipswitch or encrypted coding
Four external inputs (normally open type)
Compatible with all Penta series receivers
Frequency hopping between 433.100 to 434.700 MHz
Wireless push button, PLC controls or anywhere else you need a wireless signal to transmit a contact closure
