Flashview 2-Way 4K HDMI Splitter, 3D & 4K Video Support, 1 x HDMI In, 2 x HDMI Out

by Securview

SKU HDMI-SPL2P3

The HDMI-SPL2P3 distributes one HDMI source to multiple HDMI displays simultaneously. This HDMI splitter can support 2 signals simultaneously without compromising image quality, has full support for 4K UHD and 3D video. Its compact, light body makes installation easy. Great for retail environments, clubs, business foyers, security system display and data control centres.

Product Features:

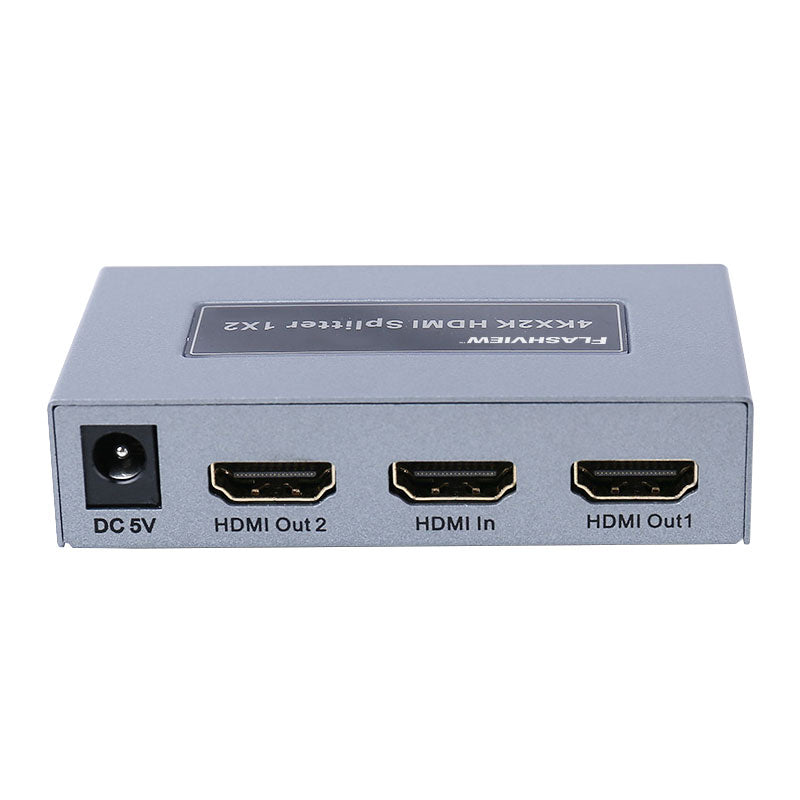

• Inputs: 1 x HDMI
• Outputs: 2 x HDMI
• Supports 4K Ultra HD and 4K x 2K resolution
• 3D video support
• Supports automatic recognition of EDID resolution

*Includes a 5VDC power supply

General

Resolution

4Kx2K@30Hz / 3D / 1920x1080 backwards compatible

Support Video Colour Format

24bit Deep Colour / 30bit / 36bit / 48bit

Support Audio Format

DTS-HD / Dolby-trueHD / LPCM7.1 / DTS / Dolby-AC3 / DSD / HD (HBR)

Input Cable Distance

<15m AWG24 HDMI standard cable

Output Cable Distance

<10m AWG24 HDMI standard cable

Environmental

Power

90VAC ~ 240VAC, 50-60HZ (5VDC power supply included)

Power Consumption

3.8W

Max Working Current

500mA

Operating Environment

-15 ~+75ºC

Dimensions

85 x 46 x 25mm (W x D x H)

Weight

N/A

Other

HDMI Bandwidth

340MHz / 3.4Gps

Warranty (Years)

Shipping Weight and Dimensions

Includes product packaging

Width

215 mm

Height

50 mm

Depth

152 mm

Weight

0.50 kg

Please Contact Zankap

Flashview HDMI Splitter Quick Start Guide (PDF) 0.34 MB

CE/ RCM Certificate

RoHS Certificate
