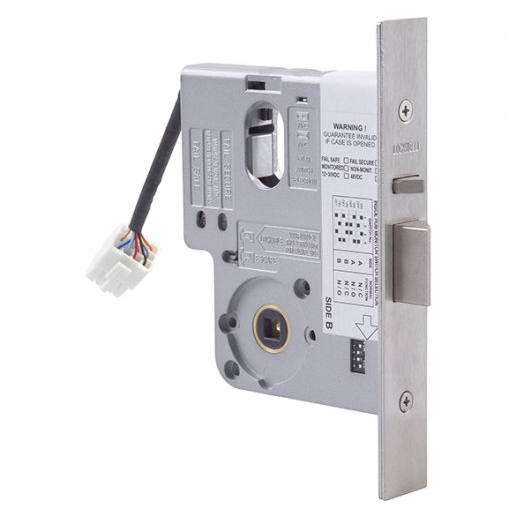

Voltage
12Vdc - 24Vdc Operating Voltage
Current
500mA (max) 80mA holding @ 12Vdc
275mA (max) 50mA holding @ 24Vdc
LED Current
When LED's are fitted, add 15mA (max) to total current draw
Monitoring
- Dual Key override
- Deadlatched
- Locked
- Door closed
- Request to exit
- Microswitches: 500mA (max) @ 30Vdc each circuit.
- Reedswitch: 100mA (max) @ 30Vdc
Environment
Operational temperature range -20c to + 60c
Case / Cover
High purity Zinc alloy construction
Backset
60mm standard, 89 & 127 mm available
Latch bolts
Reversible with Stainless Steel construction.
Door Clearance
3 - 6.5 mm
Door thickness
Standard applications 32 to 50mm.
Cylinder
Standard Lockwood oval shaped cylinders.
Cabling
1.6 metre length of cable with 12 pin socket supplied with each lock.
Recommended cable: 18AWG (0.82mm²) cable runs up to 30m.
Furniture
Compatible with Lockwood series door furniture.
Standard Finishes
Satin Chrome (SC) standard
Note: For detailed electrical specifications, refer to catalogue.
Specification Statement
The lock should be capable of operation on voltages between 12 - 24Vdc and have a current consumption not more than 80mA (holding) @12Vdc and 50mA (holding) @24Vdc.
Monitored locks must be capable of monitoring the following functions: Key override, door position / reed switch, selectable hub / Request to exit, & locking bar status.
All monitoring outputs must have the ability to be wired independently.
All settings - including: fail safe / fail secure, handing, hub selection must be field configurable.
_________________________________________________________
Dimensions
