ModelWXI-STWXI-AMWXI-RWXI-RAM

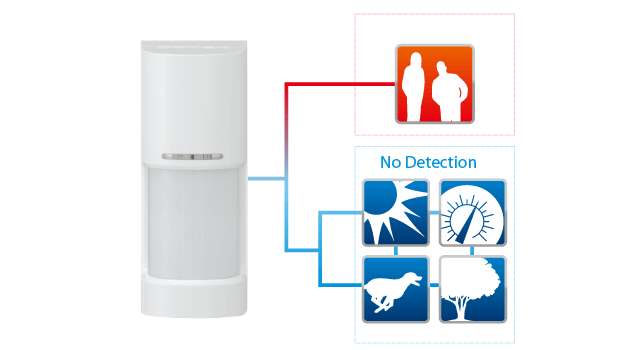

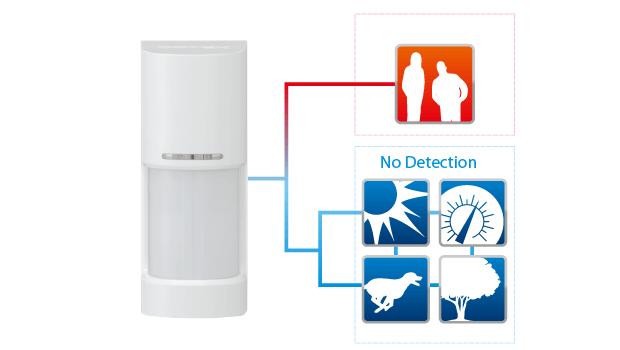

Detection methodPassive infrared
Coverage180° wide

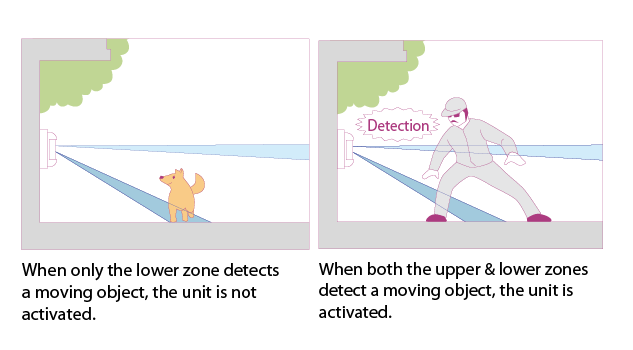

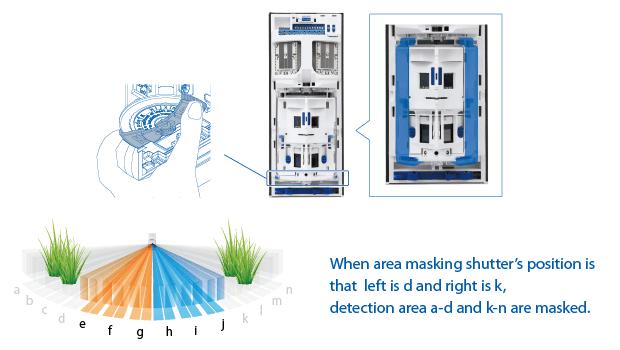

PIR zonesHorizontal 14 pairs, vertical 2 layers
PIR distance limit2.5 to 12 m (Stepless adjustment)
Detectable speed0.3 to 2.0 m/s (1' to 6'7"/s)
Sensitivity2.0 °C (3.6°F) at 0.6 m/s Selectable for each side individually
Power input9.5 – 18 VDC3 to 3.6 VDC lithium batteries
Current draw24 mA max. at 12 VDC23 mA max. at 12 VDC15 μA stand-by 4 max. at 3 VDC except walk test16 μA stand-by 4 max. at 3 VDC except walk test
Alarm period2.0 ±1 sec.
Warm-up periodApprox. 60 sec. (LED blinks)
Alarm output (Right)28 VDC 0.1 A max. [Individual : Right or General], [N.O. or N.C.] are selectableSolid State switch, 10 VDC 0.01 A max. [Individual : Right or General], [N.O. or N.C.] are selectable
Alarm output (Left)28 VDC 0.1 A max. [Individual : Left or General], [N.O. or N.C.] are selectableSolid State switch, 10 VDC 0.01 A max. [Individual : Left or General], [N.O. or N.C.] are selectable
Trouble output-N.C. 28 VDC 0.1 A max.Solid State switch, 10 VDC 0.01 A max. [N.O. or N.C.] is selectable
Tamper outputN.C. 28 VDC 0.1 A max. Open when either the cover, main or base unit is removedTamper output is shared with trouble output.
LED indicator (DIP switch ON or Walk test)Red LED : 1. Warm-up 2. AlarmRed LED : 1. Warm-up 2. Alarm 3. Masking detectionRed LED : 1. Warm-up 2. AlarmRed LED : 1. Warm-up 2. Alarm 3. Masking detection
Operating temperature-30 °C to +60 °C (-22°F to +140°F)-30 °C to +60 °C (-22°F to +140°F) except batteries
Environment humidity95% max.
IP ratingIP55
MountingWall, Pole (Outdoor, Indoor)
Mounting height0.8 – 1.2 m (2.64 ft – 3.94 ft)
Weight420 g (14.8 oz.)440 g (15.5 oz.)600 g (21.2 oz.)
AccessoriesMounting screw (4 x 20 mm) x 2, lock screw x 1Connector for POWER and ALARM (R), Connector for ALARM (L) Connector for TROUBLE, Velcro tape Mounting screw (4 x 20 mm) x 2, Lock screw x 1

Battery Life

ModelWXI-RWXI-RAM
Interval (sec.)12051205
Battery typeCR123A (3VDC, 1300 mAh)53.553.5
CR2 (3VDC, 750 mAh)3232
1/2AA (3.6VDC, 1000 mAh)42.542.5
