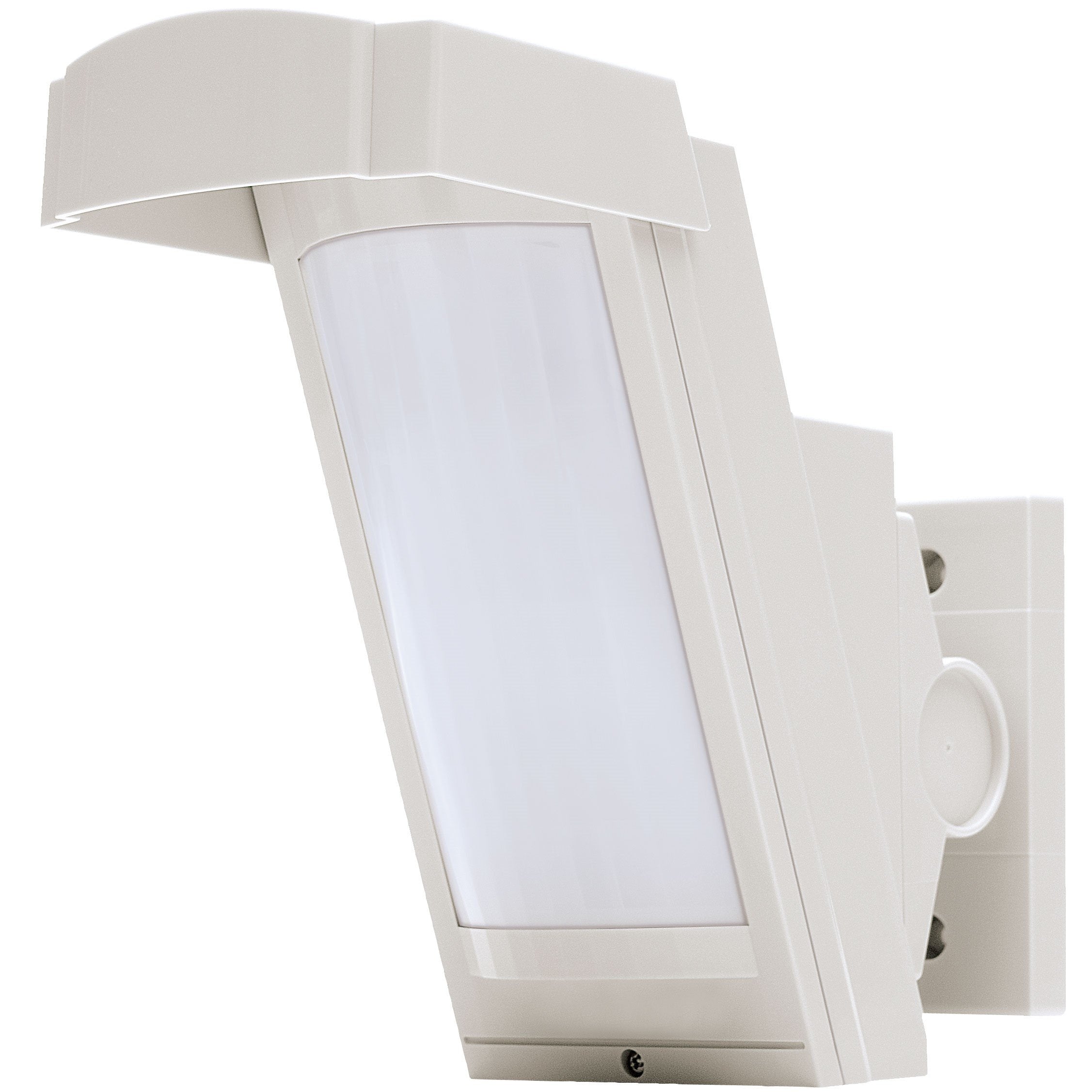

The HX-40 is a high mount outdoor detector for mid level to high end applications where reliability and performance is a must

  • Mounting height 8ft -10ft
  • Active IR digital anti-masking function
  • Unique pyro-element developed by Optex provides a multiple pattern detection with 94 high density detection zones
  • Intelligent and detection logic
  • Accurate discrimination function for spot temperature changes of moving objects
  • Double conductive shielding
  • Dual signal processing circuit
  • Vegetation sway analysis logic
  • Ideal detection area setting
  • Reduces false and missed alarms caused by severe outdoor environmental changes and provide a wide range of applications
Detection MethodPassive Infrared
PIR Coverage12m (40') 85° wide/94 zones
PIR Distance Limit4.0 m, 5.5m, 9.0m (13'1", 18'1", 29'6")
Detectable Speed0.3 m/s - 1.5 m/s (1'/s-4'11"/s)
Sensitivity2.0°C (3.6°F) at 0.6 m/s
Power Input9.5 - 18 V DC
Operating Voltage-
Current Draw35mA (max) at 12 V DC
Alarm period2.0 +/- 1sec
Warm-up periodApprox 60 sec (LED blinks)
Alarm outputForm C 28 V DC 0.2 A (max)
Tamper outputN.C. 28 V DC, 0.1 A (max) N.C. open when cover removed
Trouble output-
AUX inputN.C. 28 V DC, 0.1 A (max)
LED IndicatorRed: Warm-up, Alarm
RF InterferenceNo Alarm 10 V/m
Operating temperature-20°C – +60°C (-4°F – +140°F)
Environmental humidity95% (Max.)
Mounting Height2.5 - 3.0m (8'2" - 9'10")
Bracket adjust angleVertical: +/-20° Horizontal +/-95°
Weight600g (21.2oz)
AccessoriesBracket, Hood, Area masking seal, screw kit (3 x 10-2, 4 x 20-4)
