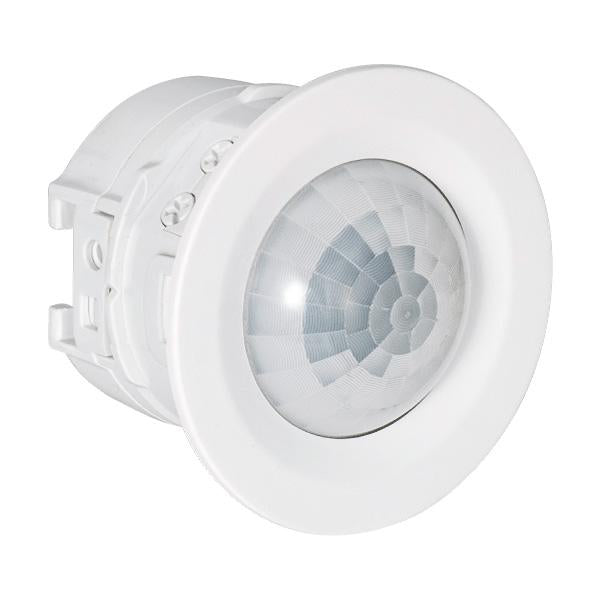

Optex Recessed Ceiling Mount 360 PIR Detector, 6M Coverage, 2.5-4.5M Mounting Height
by Optex
SKU AP-360B
Model | AP-360B(C) | AP-360BR(C) | AP-20NB(C) | AP-20NBR(C) |
---|---|---|---|---|
Detection method | Passive infrared | |||
Detection area | ø6 m (ø20’) at mounting height:4.5 m (14’9”) | < Ceiling mount > 6.0 m x 1.0 m (20’ x 3’3”) at 4.5 m (14’9”) height < Wall mount > 6.0 m x 4.5 m (20’ x 14’9”) at 1.5 m (4’11”) height | ||
Mounting type | Recessed ceiling mount 86-type box mount | Recessed ceiling mount 86-type box mount | ||
Sensitivity | 2.0℃ at 0.6 m/s (3.6°F at 2’/s) | |||
Detection speed | 0.3 to 3.0 m/s (1’/s to 9’10”/s) | |||
LED indicator | Warm-up upon power on: blinking Stand-by: off Alarm: solid on | Warm-up upon power on: blinking Stand-by: off Walk test: solid on Alarm: off | Warm-up upon power on: blinking Stand-by: off Alarm: solid on | Warm-up upon power on: blinking Stand-by: off Walk test: solid on Alarm: off |
Alarm cycle | 2 s to 120 s (variable) | Approx. 2 s | ||
Illuminance | 20 to 320 lux (variable/not detected) | - | ||
Battery saving timer | - | 120 s/ 5 s selectable | - | 120 s/ 5 s selectable |
Alarm output | N.O./N.C., 28 V DC 200 mA max. | N.O./N.C., 3.6 V DC 10 mA max. | N.O./N.C., 28 V DC 200 mA max. | N.O./N.C., 3.6 V DC 10 mA max. |
Tamper switch | N.C. 28 V DC 100 mA max. The contact opens once the casing is detached. | |||
Warm-up time | Approx. 60 s | |||
Power supply | 9.5 to 16 V DC | 2.7 to 3.6 V DC (CR123A battery) | 9.5 to 16 V DC | 2.7 to 3.6 V DC (CR123A battery) |
Current | 12 V DC Stand-by: 11mA, Max.: 13 mA | 3 V DC Stand-by: 10μA, Max.: 4 mA | 12 V DC Stand-by: 11mA, Max.: 13 mA | 3 V DC Stand-by: 10μA, Max.: 4 mA |
PIR sensitivity | H / M / L | |||
Weight | 50 g (1.76 oz) | |||
Operation temperature | -20 to +50℃ (-4°F to +122°F) | |||
Operation humidity | < 95% | |||
Location | Indoors | |||
Dimensions | < without switch box mount > ø52 x 42.5 mm (ø2.05 in. x 1.67 in.) < with 86-type box mount > 86 x 86 x 42.5 mm (3.39 x 3.39 x 1.67 in.) | < without switch box mount > ø52 x 35.5 mm (ø2.05 in. x 1.40 in.) < with 86-type box mount > 86 x 86 x 36.5 mm (3.39 x 3.39 x 1.44 in.) |
