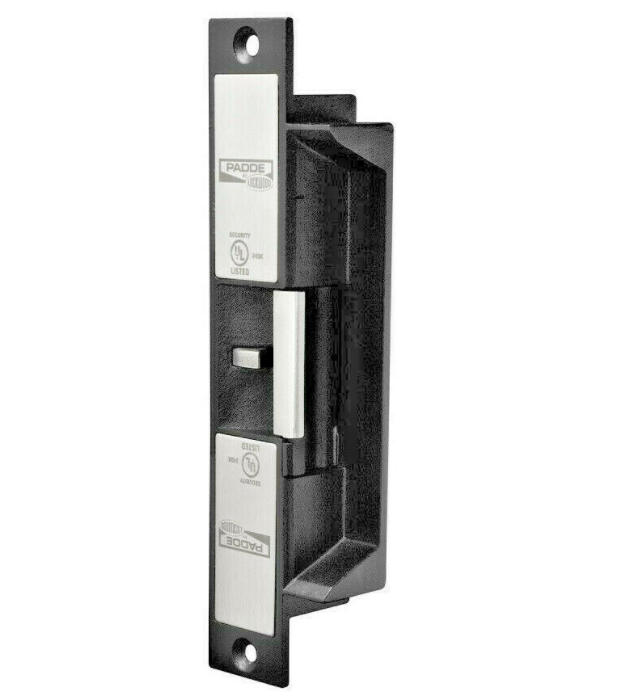

The ES2100 is the latest product to join the iconic Padde by Lockwood range of electric strikes. Tested in accordance with Australian standards this strike offers superior strength, and is durability tested to 1.5 million operations. Standard features include variable voltage, patented field selectable fail safe/fail secure mode change and a unique integrated door position switch.

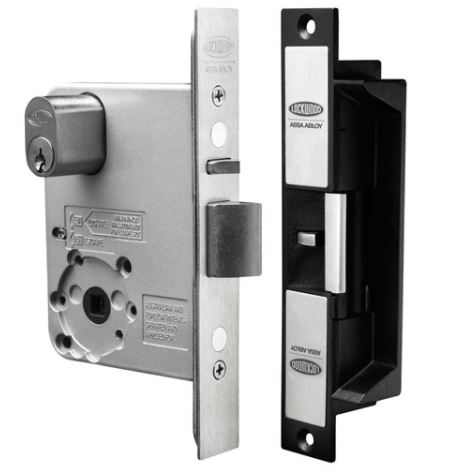

Integrated Door Position Switch The ES2100 now offers a unique new monitoring feature not available in other strikes on the market today. The strike has an integrated reed switch that when combined with a specialised Lockwood mortice lock, provides door position monitoring. The strike is supplied with a standard door magnet for use with cylindrical latches. Lockwood mortice locks and face plate accessories are sold separately.
Key Features
Patented field selectable fail safe/fail secure
Multi voltage 10-30Vdc
Fully monitored:
Integrated door position (reed) switch
Solenoid/Locked
Latch position
1000kg holding force
4hr fire rating
Mounting tabs as supplied standard
TRICARE® 5 Year Warranty
Weather Resistant (IP54)
Built in Protection Diode
Applications
High traffic areas
Fire rated door sets
Open in/open out doors
Suitable for use with all access control systems
Doors requiring additional door position monitoring
Standards and Compliance
SL8 (Security) Australian Lock Standard (AS4145.2.2008)
D8 (Durability) Australian Lock Standard (AS4145.2.2008)
Successfully fire rated up to 4hrs on fire door assemblies in accordance with AS1905.1. 2005
CE Approved
C-Tick Certified
SCEC Approved for Security Level 3
Voltage Variable 10 -30Vdc
Current 200mA @12Vdc - 120mA @ 24Vdc
Solenoids Rated for continuous use
Monitoring Latch Strike locked Door position (reed switch)
Holding force 1000kg static strength rating
Endurance Cycle tested to 1.5 million operations
Latch Suitable for 15mm latch bolt with 3mm door gap
Body Stainless Steel
Keeper Stainless Steel
Environment Operational temperature range -20ºC to +60ºC

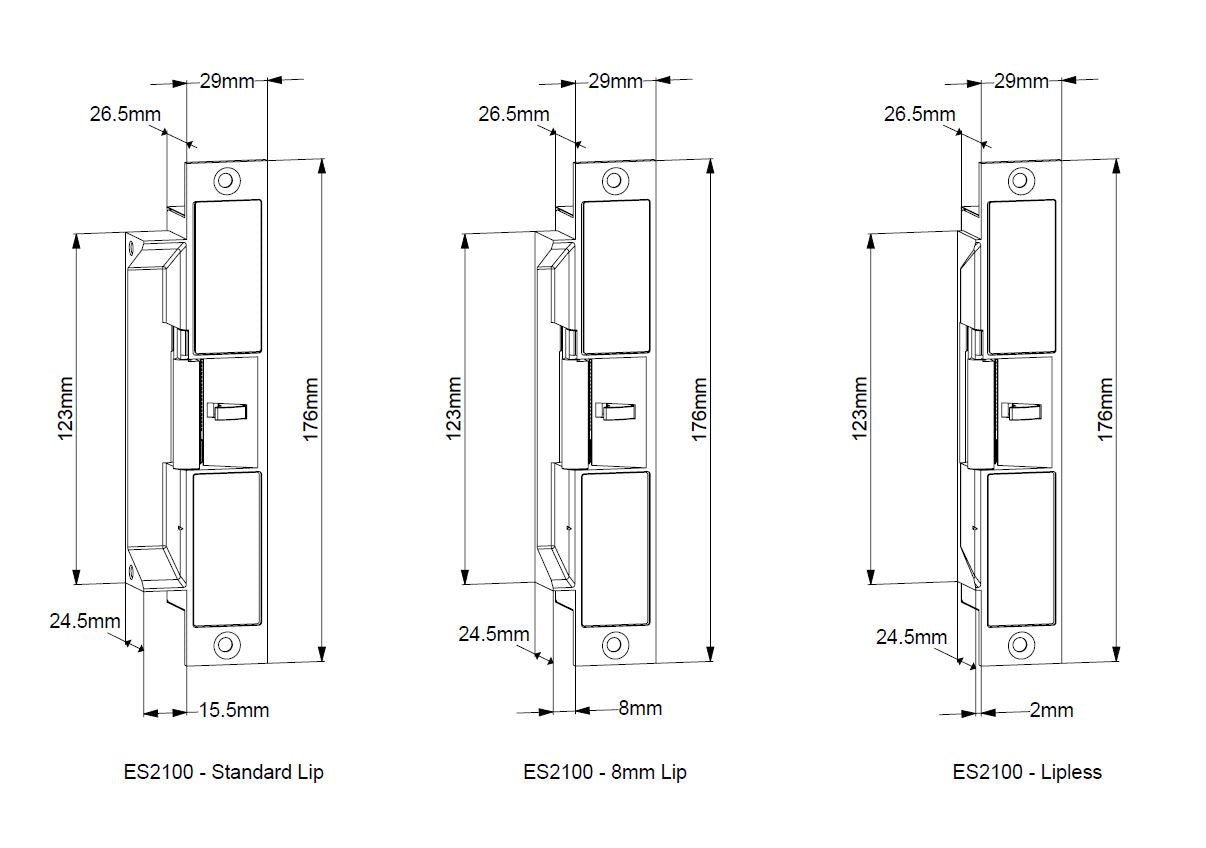

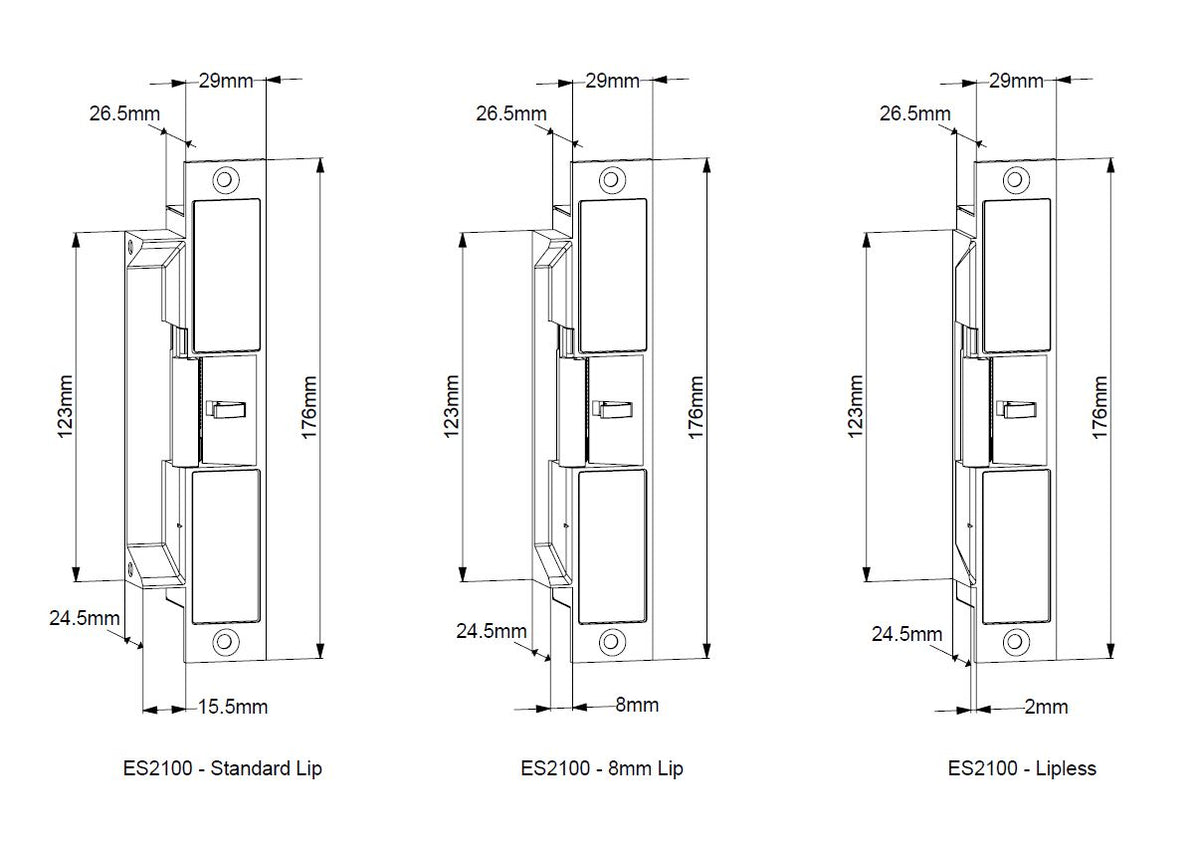

Refer to catalogue for STD Backset and Extended Backset dimensions.
Specification Statement The strike should be constructed of stainless steel, have a minimum holding force of 1000kg and an endurance rating of 1.5 million cycles. Monitoring must include independent latch and solenoid monitoring. The strike shall have an integrated reed switch for door position monitoring and used in conjunction with Lockwood 3572MAGSC mortice lock. Certifications must include CE, C-tick and 4 hr fire rating.
