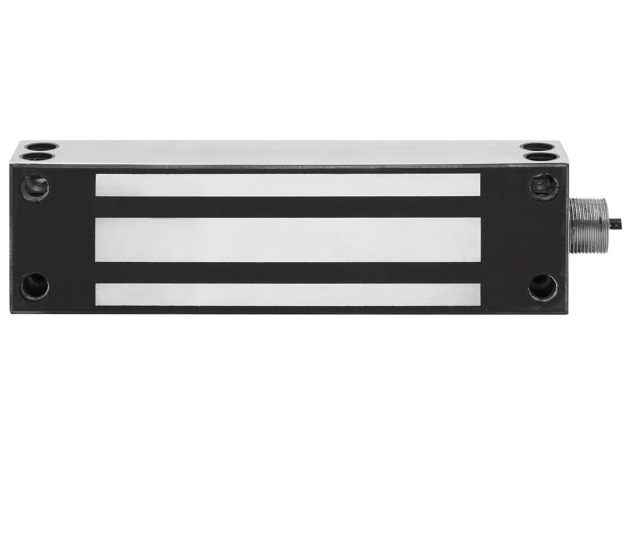

Padde Standard Mag Lock 12/24VDC Single Monitored Weather Resistant

Z8 Weather Resistant Electromagnet

Holding Force 550KG - 580KG
Voltage 12Vdc/ 24Vdc ±10%
Current 512mA @ 12Vdc 256mA @ 24Vdc
Monitoring Hall-Effect
Operating Temperature -10 to 55 Degrees
Operating Humidity 0-95%

Specification Statement
The Weather Resistant Series Electromagnetic Lock should be constructed in an aluminium case with heavy duty electromagnet. The range only operates in fail safe mode and relies on a secondary lock or battery backup system. In some cases the magnet armature plate pivots to accommodate door drop.

_________________________________________________________

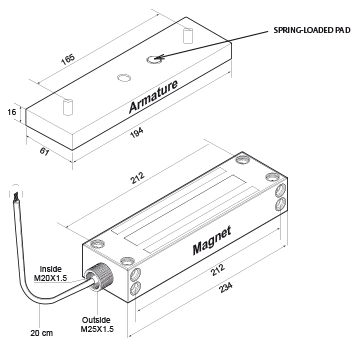

Dimensions

(L)230 x (H)67 x (D)43 mm
