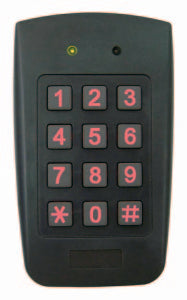

Rosslare’s standalone backlit PIN controller is use for indoor and outdoor systems where PIN credentials are required. This durable model can be easily programmed with up to 500 users, on a single door.

Main Features
  • Up to 500 users can be coded using Smart enroll and delete technology.
  • A mounting template and installation kit are provided.
  • Three user levels:
    • Normal – Requires single PIN code
    • Secure – Requires dual PIN codes
    • Master User
  • Three access levels:
    • Normal
    • Bypass
    • Secure
  • Suitable for mullion installations.
  • Programmable PIN code length of 4-digits to 8-digits.
  • Powered either by transformer (AC) or regulated power supply (DC).
  • IP65 water-resistant and UV-resistant.
  • Internal buzzer.
  • Two inputs: REX and Auxiliary.
  • Two Form C, 2 Amp outputs: Lock Strike and Auxiliary.
  • Two tri-colored status/programming LEDs.
  • Ten programmable auxiliary behavior modes including Door Ajar, Forced Door, Alarm Shunt, and Door Monitor.
  • Programmable chime and siren when using BL-D40 and ‘*‘ bell button.
  • Built-in optical back tamper.
