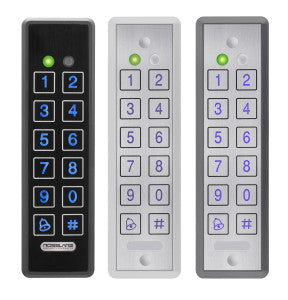

Rosslare* Ultraslim EM Prox & PIN Piezo Reader 2X6 Keypad Combo, Convertible, Backlit, Black With Black Antenna, Wiegand 26-Bit Output

SKU AYC-E65BB

Notify me when back in stock

A unique ultra-slim profile, smooth metallic surface and high sensitive piezoelectric keys, now combined with shiny illuminated digits and a Proximity card reader makes this unit highly attractive for all-weather PIN & Prox access applications. Fully potted in a metal housing, the

AYC-E65B/B/W/G offers highly attractive yet durable solution for any need. Part of the Convertible line of readers/controllers, this unit can be operated as a keypad reader with any standard controller, and converts into a secure 500-users controller when connected to the PS-x5T intelligent power supply/relay unit.
  • Supports 4 to 8-Digit PIN credentials and 125KHz EM type RFID cards and tags
  • Smooth, attractive design, with allweather indoor and outdoor operation
  • Large, high-visibility unique illuminated piezoelectric Keypad
  • 2 tri-colored LEDs and an integral sounder for programming and operation
  • User friendly menu system based on keypad, LED and sounder indicators
  • Optical Back tamper detection output
  • Automatically recognizes a connection to PS-X5T intelligent power supplies and converts into a 500 users stand-alone controller with secure relays
  • Available in three models: AYC-E65BG with gray antenna, AYC-E65BW with white antenna, and AYC-E65BB in black
  • 8 Selectable PIN transmission modes including options for Key stream, Binary, Parity, and 2×6 Matrix
  • Supports Wiegand or Clock & Data Transmission formats
  • 3 Security levels (controller mode): bypass (free entry), normal (card or PIN) required or Secure (card + PIN)
  • Comes with a mounting and drilling label
  • 60 cm (23.6 in.) shielded interface cable
