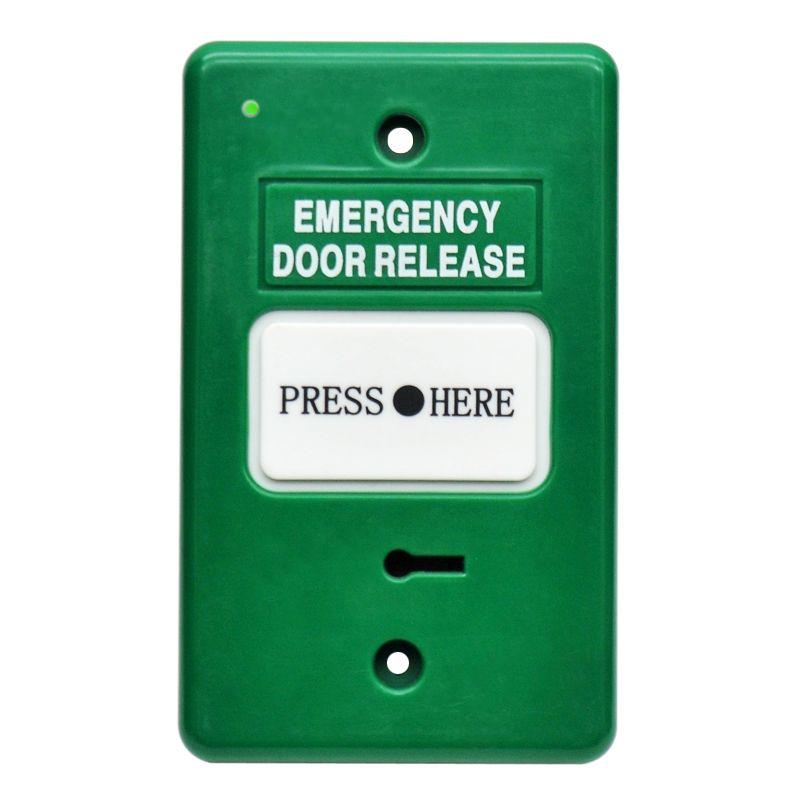

Secor Green Resettable Emergency Door Release, Resettable, LED Indicators & Buzzer, Two Isolated SPDT Outputs, IP55, Standard GPO Size (Protective Cover: DWS250C, Spare Key: WEB200KEY)

by Secor

Notify me when back in stock

  • Built in buzzer and LED as audible and visual confirmation of operation
  • Weather protection – IP55
  • Easy to reset with the metal key provided
  • Standard GPO size -fit into a standard mounting block
  • Two isolated SPDT outputs

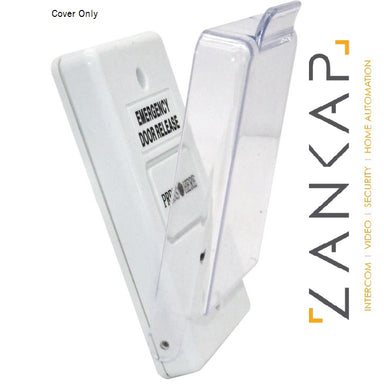

  • Protective cover available
  • Green available – DWS250B-GN
  • Hole plugs included
  • Warranty: 3 years
  • IP55
  • LED and buzzer built in
  • LED colour: standby green; activation red
  • Voltage: 12VDC; Current: 5-20mA
  • Contacts:
    • 2 x isolated SPDT
    • Voltage (max): 30VDC
    • Current (max): 2A
    • Contact resistance: 50mΩ
  • Dimensions: 70mm(W) x 115mm(H) x 21mm(D)
