Secor* Stainless REX, Illuminated Green No-Touch Sensor, Dual Colour LED, IP65, Medium Sized Plate (45mm X 115mm), 24VDC, 0.5-20S Door Open Time, Adjustable Sensing Range 4-12CM

by Secor
SKU WEM2261

Notify me when back in stock

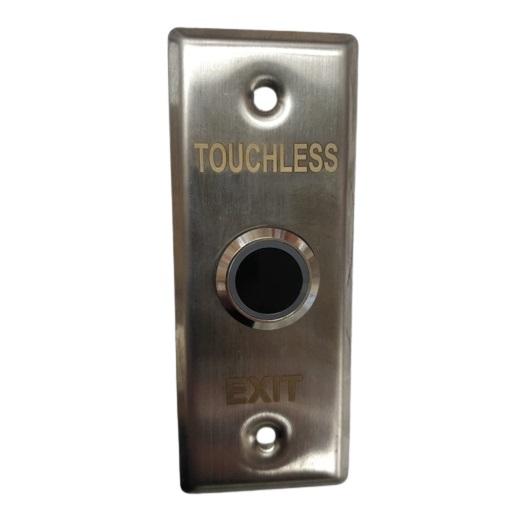

Stainless Medium Sized Plate (45mm X 115mm) REX, Illuminated Green No-Touch Sensor

  • Can be activated by simple hand wave or approach
  • Protect against interference from other source of infra-red
  • Weather proof – IP65
  • Compact design – fit into standard mounting blocks
  • Dual-colour LED as action confirmation
  • LED colour in standby mode selectable: red or green
  • Sensing range adjustable: 4 – 12cm (+-20%)
  • Door stay open time adjustable: 0.5 – 20sec
  • Momentary or latching selectable
  • IP65
  • Dual LED colour: standby red, action green or opposite – adjustable
  • Output: 1 NO and 1 NC; 1A @30VDC (max)
  • Power consumption: 35mA (max) @24VDC
  • Door stay open time adjustable: 0.5 to 20sec
  • Sensing range adjustable: 4-12cm (+-20%)
  • Mounting hole diameter: 22mm
  • Medium GPO size stainless steel plates: W45 x H115 x D28mm
  • Architrave style available: W30 x H75 x D28mm – P/n WES2261
