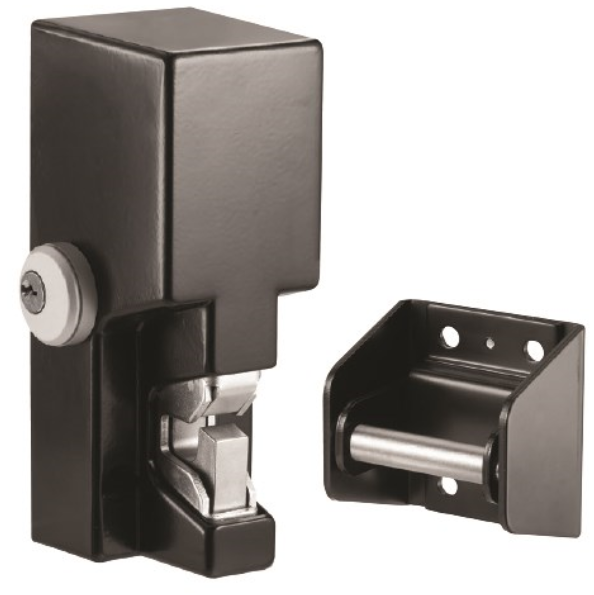

**SALE** Securitron Gate Lock, 12/24VDC, Fail Secure Monitored (4 Week Lead Time If No Stock On Hand)

SKU GL1-FLM

Notify me when back in stock

Electromechanical Gate Solution Offers One Ton of Holding Power

The heavy duty GL1 Electromechanical Gate Lock provides weather-resistant access control for a wide range of gate applications. The GL1 provides 2000lbs of holding force for electrical and manually operated indoor or outdoor gates where preload is a concern. Ideal for swinging or sliding Product features vehicle, pedestrian, or stock gate access control.

  • 2,000 lbs holding force
  • Operates under preload up to 100lbs
  • Automatic dual voltage - no field adjustment required
  • Accepts a standard mortise cylinder with Adams Rite MS cam for manual key override (not included, see spacer guide below)
  • Self-aligning receiver helps compensate for gate misalignment and sag
  • Tamper resistant cast housing
  • Optional latch status monitor
  • Surface mount

Holding Force: 2000lbs [907kg]

Dimensions: 2-3/4"L x 7-1/4"W x 3-1/4"D

Electrical:

     12 Volts Initial (Peak): (~1.0 sec.) @ 870mA - Reduced: 290mA

          Power Consumption: 3.5 Watts

     24 Volts Initial (Peak): (~1.0 sec.) @ 720mA - Reduced: 170mA

          Power Consumption: 4.1 Watts

Operating temperature: -58 to +167F [-50 to +75C] Indoor or outdoor use

Shipping Weight: 6lbs [2.72kg]

Finishes: Black Finish
