General
Image Sensor
1/2” 8.0 Megapixel CMOS
Max. Resolution
8.0 Megapixel
Effective Pixels
3840 (H) x 2160 (V)
Signal Noise Ratio
> 65dB
Camera
Lens
3.7mm ~ 11mm F1.5 Motorised Lens
Lens Type
Motorised Varifocal
Angle of View
112° (wide) ~ 46° (tele)
Focus
Fixed / 1.8m Min. Focus Distance
Minimum Illumination
0.005 Lux at F1.5 (Colour) / 0 Lux IR Active
Electronic Shutter
1/4s ~ 1/100,000s
Day/Night
Auto (ICR) / Manual
Infrared Range
60m
White Balance
Auto / Manual
Noise Reduction
2D / 3D
Gain Control
AGC
Lighting Compensation
BLC / HLC / WDR (120dB)
DORI Distance (Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.)
Detect (25px/m)
83m (wide) / 190m (tele)
Observe (63px/m)
33m (wide) / 76m (tele)
Recognise (125px/m)
17m (wide) / 38m (tele)
Identify (250px/m)
8m (wide) / 19m (tele)
Video
Resolution
8.0MP (3840 x 2160) to CIF (352 x 288)
Frame Rate
15fps (8.0MP) / 20fps (6.0MP) / 25fps (4.0MP and lower)
Transmission Distance
Rated for up to 700m via 75-3 coaxial cable (performed in ideal test conditions)
Interface
Audio Input
Built-in Microphone / 1 Input
Alarm Interface
N/A
Video Output
1 x HDCVI / AHD / TVI / Composite video output
Modes Supported
HDCVI, AHD, HDTVI & Composite

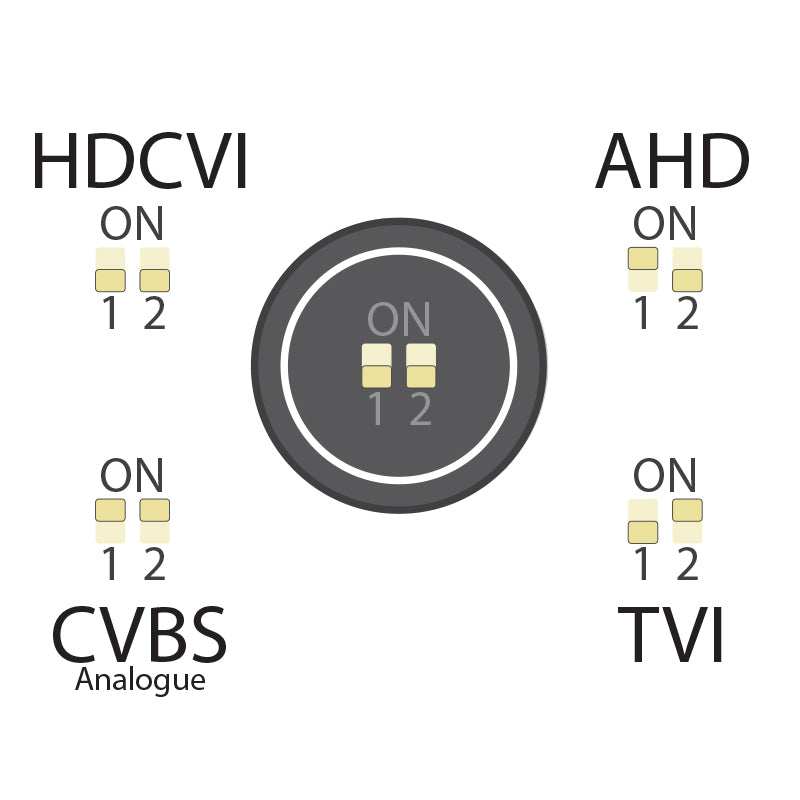

Mode Switching
DIP Switches
Synchronisation
Internal
OSD Menu
Support
Environmental
Ingress Protection
IP67
Vandal Resistant
N/A
Series
Professional Series
Housing
Aluminium

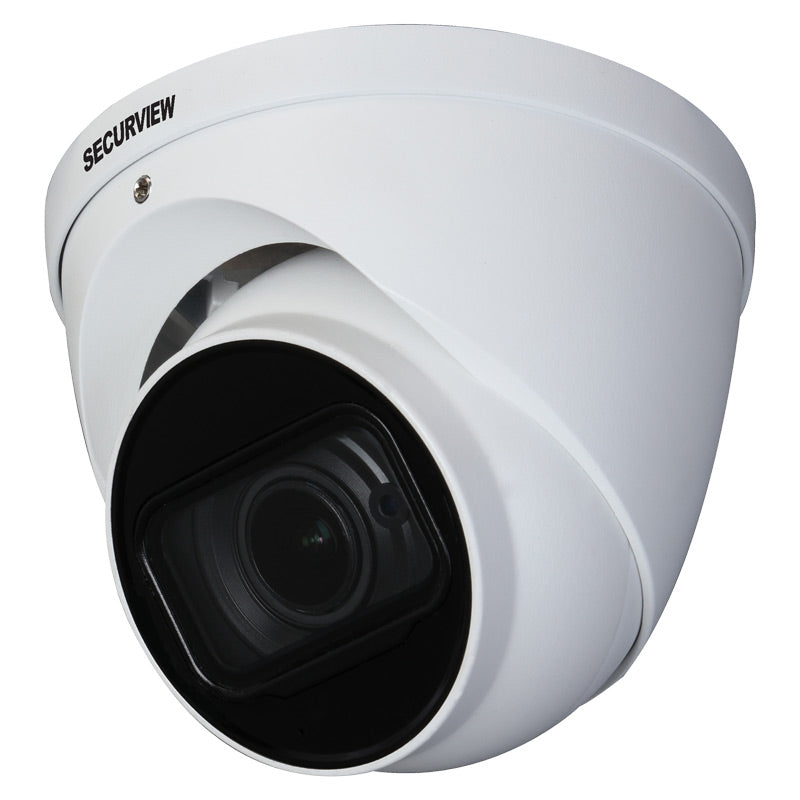

Camera Type
Dome
Tri-Axis Mounting
N/A
Power Input
12VDC
Power Consumption
< 9.5W

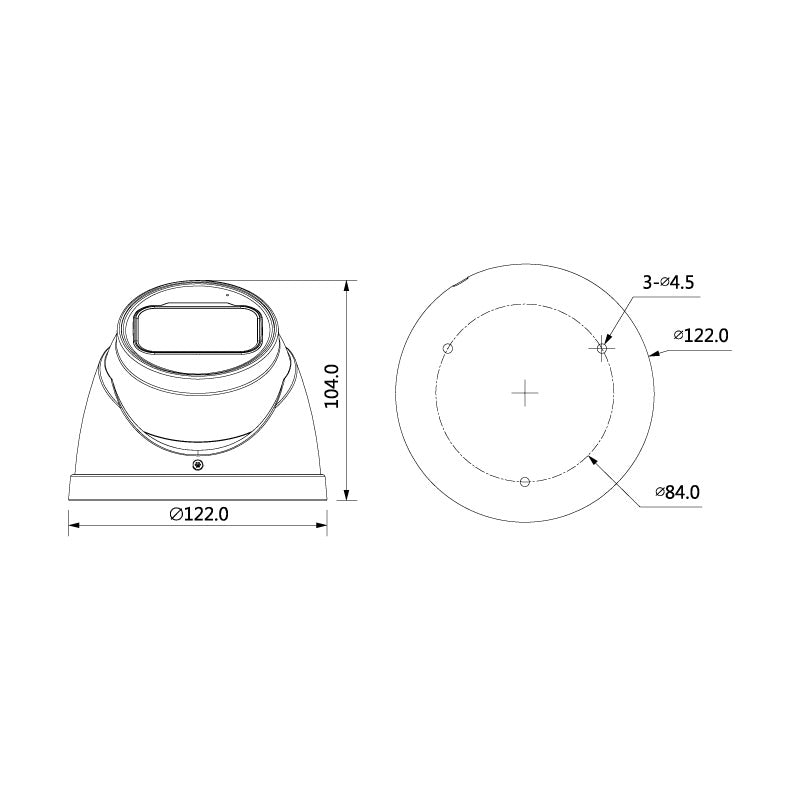

Dimensions
Ø122mm x 107mm
Weight
0.59kg
Operating Environment
-30° to 60°C / RH90% (max)
Warranty (Years)
4
