Tactical* 1.1MM Steel Powder Coated Enclosure Dimensions 385W x 404H x 174D MM - Colour Apo Grey - Removable Lid, Will House 5A, 6A Or 10A Power Module, 2 x PDM Modules And Has Space For Up To A 40Ah SLA Battery And Camlock

Tactical* 1.1MM Steel Powder Coated Enclosure Dimensions 385W x 404H x 174D MM - Colour Apo Grey - Removable Lid, Will House 5A, 6A Or 10A Power Module, 2 x PDM Modules And Has Space For Up To A 40Ah SLA Battery And Camlock

by Tactical
Please login to view price
SKU TPBOX-33-KIT
Please login to Add to Cart

Notify me when back in stock

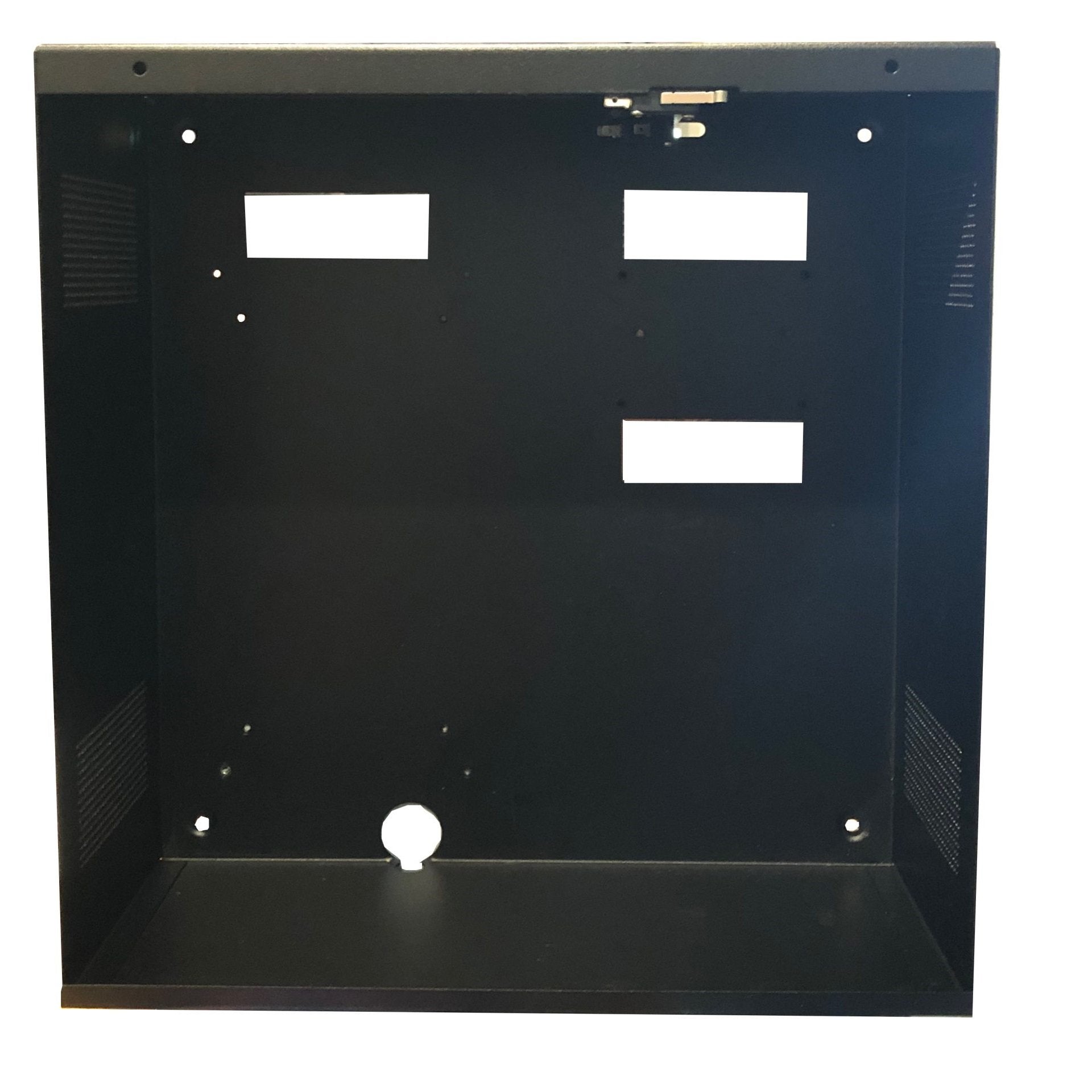

385W x 404H x 174D mm 1.1MM Steel Powder Coated Enclosure

  • Powder coated in Black texture finish
  • Been designed to house all Tactical 2.5A, 5A, 6A and 10A power modules with adequate space for 3 x 12V 7ah or 2 x 17ah or 1 x 40ah SLA (Sealed Lead Acid) battery
  • Threaded standoffs are fitted, allowing up to 2 x PDM  (Power Distribution Modules) to be mounted.
  • Each kit is supplied with two micro tamper switches, power modules mounting hardware, battery leads, camlock and mounting instruction
TPBOX-33-KITSPECIFICATIONS
Construction1.5mm Zinc Seal Steel
FinishBlack powder Coated-texture finish
Mounting4 attachment holes
Tamper SwitchesFront and rear microswitches
Module hardware4 x M4 x 6mm screw,
4 x M5 extermal tooth washers
Battery LeadsBlack and white 12A rated leads fitted with ring connector
Lid ClosureCam Lock 2 Keys
Cable Entry10 x 20mm knockouts
Dimensions385 W x 404 H x 174 D (mm)
Weight>5Kgs
Country of ManufactureAustralia
  •
