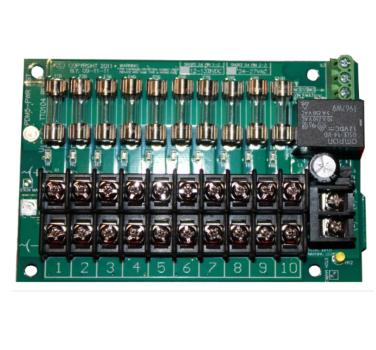

Tactical* 10 Way PDM 12VDC / 24VAC [Selectable] - 1A Fuses - With Common Fault Relay Output And 4 x 3M Mounting Feet


Notify me when back in stock

Suitable for either 12Vdc or 24Vac (on-board switch), the use of PDM5-1A minimises the likelihood of a total system shutdown in the event of a short circuit on any one single circuit run.

Featuring state-of-the-art Surface Mount Technology, 10 individual fused 1A M205 circuits with LED fuse status indication.

A SPDT common fault relay will change state in the event of a fuse failure.

Supplied with 4 x 3M adhesive standoffs.

The installer should assess the current draw of each connected device and fit a alternative fast-blow fuse of appropriate rating to suit that device if any of the channels require more than 1A, whilst not exceeding the rating of the connected power supply or maximum PCB rating of 10A.
Input Voltage24VacAC 50Hz or 10Vdc to 15Vdc
Input Current10A Max
Output VoltageInput Dependant
Output Channels10
Output per Channel1A
Fuse Type1A Polyswitch
Common fault relay- activates upon fuse faultSPDT 30V 6A
Working Temperature0 – 50°C
Dimensions110W x 81L x 34H mm
Mounting4 x 3M adhesive standoffs
Weight115g approx
EMC StandardsAS/NZS CISPR 11:2004 (Class B)
