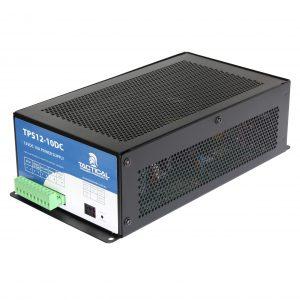

Tactical* 12VDC, 10A Switchmode Supply With High Output Charger, AC Fail & Low Batt Outputs - Module Only [275L x 145W x 83H MM]. Total Output 1.4A. Temperature Rating 0-50'C Above Ambient No Derating.


Notify me when back in stock

The TPS12-10DC power supply provides high quality, regulated 12Vdc at 10 Amps via its primary output channel (to power loads such as CCTV, Access Control & Alarm systems), whilst a separate 13.8Vdc 1.4A channel keeps standby batteries charged – making TPS12-10DC a 11.4A supply.

The advanced design of the TPS12-10DC provides outstanding performance in the field, whilst maintaining significantly low operating temperatures
due to switch mode design.

 TPS12-10DC features very low noise at full load with overload, short circuit and over voltage shutdown protection and is configured with a High Output battery charger. In the event of a mains power failure, standby battery voltage is re-regulated to 12Vdc, ensuring that voltage sensitive loads (such as some CCTV cameras) are not subject to higher than expected voltage.

A removable 10 way connector provides outputs for DC Load, Battery Charger, Mains Fail Relay & Low Voltage / Battery Fail Relay Output.

Equipped with an AC fail relay and Green LED indicator which changes state upon loss of 240V AC mains power, the low battery relay and Red LED indicator are only functional during a mains power failure and will operate when the battery voltage reaches 10.5V.

Input Voltage240Vac (+6% / -10%) 50 Hz
Input Current1.4A @ Full Load
Output Voltage12.4Vdc
Output Channels1
Output per Channel10A
Output Ripple<50 mVp-p @ full load

Battery Charger13.8Vdc @ 1.4A
AC Fault RelayC-NC SPST contacts rating 1A 30Vdc
AC On IndicatorGreen LED Illuminates Mains ok
Low Battery Fault RelayC-NC SPST contacts rating 1A 30Vdc
Low Battery Fault IndicatorRed LED Illuminates on fault
Working Temperature0 – 50°C “Without De-Rating”
Efficiency83% at rated output
Dimensions275L x 145W x 83H mm
Weight<2Kg approx
EMC StandardsAS/NZS CISPR 11:2004 (Class B)
Safety StandardsAS/NZS 60950.1:2015
Certificate of ApprovalASA-194021-EA
