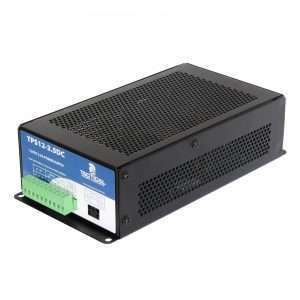

Tactical* 12VDC, 2.5A Switchmode Supply With 13.8V / 700Ma Charger, AC Fail & Low Batt Outputs [225L x 120W x 60H MM]. Total Output 3.2A. Temperature Rating 0-50'C Above Ambient No Derating.


Notify me when back in stock

TPS12-2.5DC provides switchmode regulated 12.4Vdc at up to 2.5 Amps via its primary output channel (to power loads such as voltage sensitive CCTV cameras), with a separate 13.8Vdc 700mA channel to keep your standby battery charged – making TPS12-2.5DC a 3.2A supply.

 In the event of a 240V mains failure, TPS12-2.5DC automatically re-regulates the 13.8V standby battery voltage to 12.4Vdc – ensuring that sensitive equipment is not subjected to higher, potentially damaging voltages.

 Incorporating short circuit and thermal overload protection, TPS12DC models have been designed and thoroughly tested to comply with stringent Australian & New Zealand Electrical Safety and EMC standards – in fact, TPS12-2.5DC models have such low conducted & radiated emissions that they comply with the extremely demanding CISPR11:2004 Class B standard, making them suitable for use in not only industrial installations, but domestic, scientific and medical applications.

Equipped with an AC fail relay and Green LED indicator which changes state upon loss of 240V AC mains power, the low battery relay and Red LED indicator are only functional during a mains power failure and will operate when the battery voltage reaches 10.5V.

Input Voltage240Vac (+6% / -10%) 50 Hz
Input Current400mA @ Full Load
Output Voltage12.4Vdc
Output Channels1
Output per Channel2.5A
Output Ripple<50 mVp-p @ full load

Battery Charger13.8Vdc @ 700mA
AC Fault RelayC-NC-NO SPDT contacts rating 1A 30Vdc
AC On IndicatorGreen LED Illuminates Mains ok
Low Battery Fault RelayC-NC-NO SPDT contacts rating 1A 30Vdc
Low Battery Fault IndicatorRed LED Illuminates on fault
Working Temperature0 – 50°C “Without De-Rating”
Efficiency83% at rated output
Dimensions275L x 145W x 83H mm
Weight1.2Kg approx
EMC StandardsAS/NZS CISPR 11:2004 (Class B)
Safety StandardsAS/NZS 60950.1:2015
Safety CertificateSAA200277
