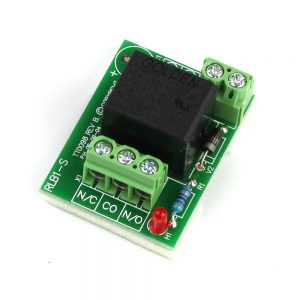

Tactical 12VDC SPDT Single Input, Non-Buffered Relay Board. [30VDC 6A Contacts]

by Tactical

SKU RLB1-S

The 12Vdc powered RLB1-SPDT relay board from Tactical Power Products is an individual dual buffered, Single Pole / Double Throw (SPDT) Relays. The relay features a transistor buffered input which may be triggered by any positive DC voltage over 5Vdc or by 0Vdc. (Inputs are provided for + or – trigger) An onboard LED illuminates when the relay is activated.

Relays	1
Input Voltage	11-15Vdc (must be constantly powered)
Current	Current draw 47 mA when relay is active
Positive Trigger	+ Trigger Input ( 5V to 12Vdc )
Negative Trigger	– Trigger Input ( 0V )
Contacts	C-NC-NO
Contact Current	6A 30Vdc
Dimensions	47L x 32W x 19H mm
Mounting	3M Double Sided Tape
Weight	300g approx
EMC Standards	AS/NZS CISPR 11:2004 (Class B)

Please Contact Zankap
