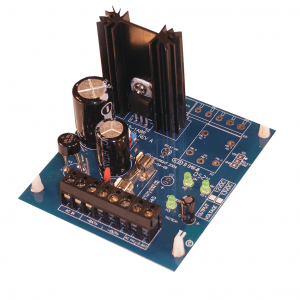

Tactical 13.5VDC, 1A Power Distribution Module, 250MA Battery Charger Including AC Fail & Low Battery Open Collector Outputs [82L x 72W x 60H mm]

by Tactical

SKU PS13-1A

The PS13-1A, Linear Regulated Power Supply Module and has been designed to provide 13.8V DC at 1A.

Featuring an on-board battery charger with LED indication to show the presence of DC and is equipped with AC Fail & Low Battery Outputs (solid state / open circuit collector).

This module is supplied with 4 x adhesive mounting stand-offs and requires an approved 16V AC 1.5A Plug Pack (not supplied) Tactical Part No: 16VPPM. Output is short circuit protected with a 1A, M205 Fuse .

Input Voltage	16.5V 50 Hz
Input Current	Dependant on load current
Output Voltage	13.8Vdc Nominal (11-15Vdc adjustable)
Output Channels	1
Output per Channel	1A
Battery Charger	13.8Vdc @ 150mA when output is adjusted to 13.8Vdc
Working Temperature	0 – 40°C
Dimensions	72W x 82L x 60H mm
Weight	80g approx
EMC Standards	AS/NZS CISPR 11:2004 (Class B)
