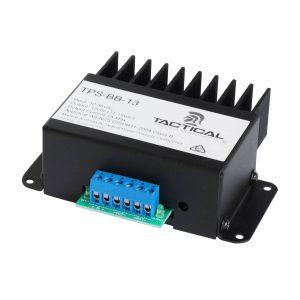

Developed to provide a regulated 11V-16Vdc output (adjustable), where input voltage ranges from 10V to 36Vdc, the TPS-BB-13 Buck Boost Converter is the answer.

If input voltage is either too high or too low at your equipment, the TPS-BB-13 can automatically buck (decrease) or boost (increase) the voltage to meet the device’s requirements.

There is no effect on the output during the transition from buck to boost (or vica-versa). This module also features an on-board battery charging facility when the output is adjusted to 13.8Vdc.

Input Voltage10Vdc to 36Vdc
Input CurrentDependant on load current
Output Voltage12Vdc
Output Channels1
Output per Channel1A
Output Ripple<20 mVp-p @ full load

Load Regulation<1% from 0 to 100% load
Battery Charger13.8Vdc @ 150mA
when output is adjusted to 13.8Vdc
Working Temperature0 – 50°C
Efficiency83% at rated output
Dimensions114W x 63L x 40H mm
Weight300g approx
EMC StandardsAS/NZS CISPR 11:2004 (Class B)
