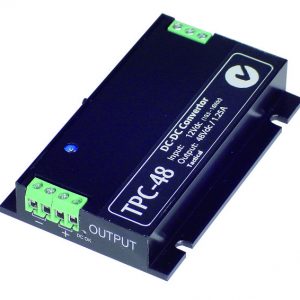

The TPC-48 is a low profile DC-DC Convertor of switchmode designed to convert 12Vdc (nominal) to 48Vdc @ 1.25A

Created with POE applications in mind, the TPC48  DC-DC Converter has been designed to convert either 12Vdc-16Vdc to a reliable, regulated output voltage of 48Vdc @ 1.25A.

NOTE: Input voltage must not exceed 18Vdc or permanent damage may result.

CAUTION:  Output voltage is factory set to 48Vdc. No battery charging facility is available on this model – DO NOT connect batteries to the output terminals.

Featuring output over current, short circuit and over temperature protection, TPC48 will automatically reset when the fault condition is rectified.

Input Voltage10Vdc to 16Vdc Max.
Input CurrentDependant on load current
Output Voltage48Vdc Nominal adjustable +/-5%
Output Channels1
Output per Channel1.25A
Output Ripple<20 mVp-p @ full load

Output ProtectionCurrent Limiting with Auto Recovery, Thermal Shutdown
Load Regulation<1% from 0 to 100% load
Dimensions100L x 65W x 18Hmm
Working Temperature0 – 50°C
Weight180g approx
EMC StandardsAS/NZS CISPR 11:2004 (Class B)
Please Contact Zankap
