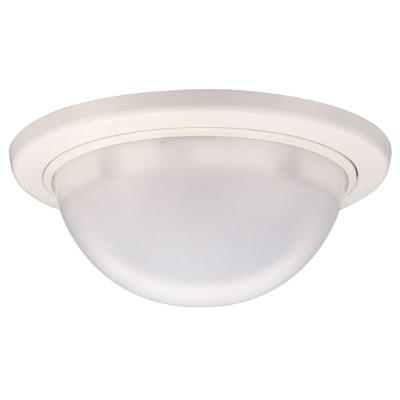

The PA-6800 series ceiling mount indoor PIR sensors combine a discreet compact appearance with outstanding performance at a low price. The sensor can be snapped in and out of the detachable base unit for easy installation in high places.

  • 2.0 to 4.9m Installation height
  • Detachable base unit with snap-in-out sensor design
  • Geared mirror array for precise area definition (PA-6812E/6820E)
  • Slim 47mm profile
Detection System
Passive infrared
CoverageWide Angle
12m Max.
∅15.2m Max.
∅4m Max.
Vertical Curtain
20m Max.
Sensitive zone17 pairs33 pairs9 pairs8 pairs
Supply voltage
10.5 - 28V DC (non-polarity)
Current consumption25mA Max. (+2mA at L/C use)
Alarm signal
Dry contact (Semi-Conductor) (NC/NO selectable)
Reset: Approx 2 sec., 24V (AC/DC) 0.25A
(protective resistor 3.3Ω)
Alarm memory
3 minutes flashing, 47 minutes lighting and automatically reset
Alarm LED
Flashing at warming up
Lighting at alarm (LED disabled)
Memory LED
Flashing at memory activated
Lighting at memory indication
Adustmentvertically 30°-vertically 30°
Horizontally : 25° (on mounting hole of base)
Count changeover
1 / 2 / 3 / 4 selectable-
Ambient temperature range
-15°C to +55°C without condensation
Mounting position
Indoor ceiling (wall mount with optional attachment BCW-401)
Wiring connection
Terminals on separate base unit
AppearanceBody : ABS resin / Cover : PE resin
