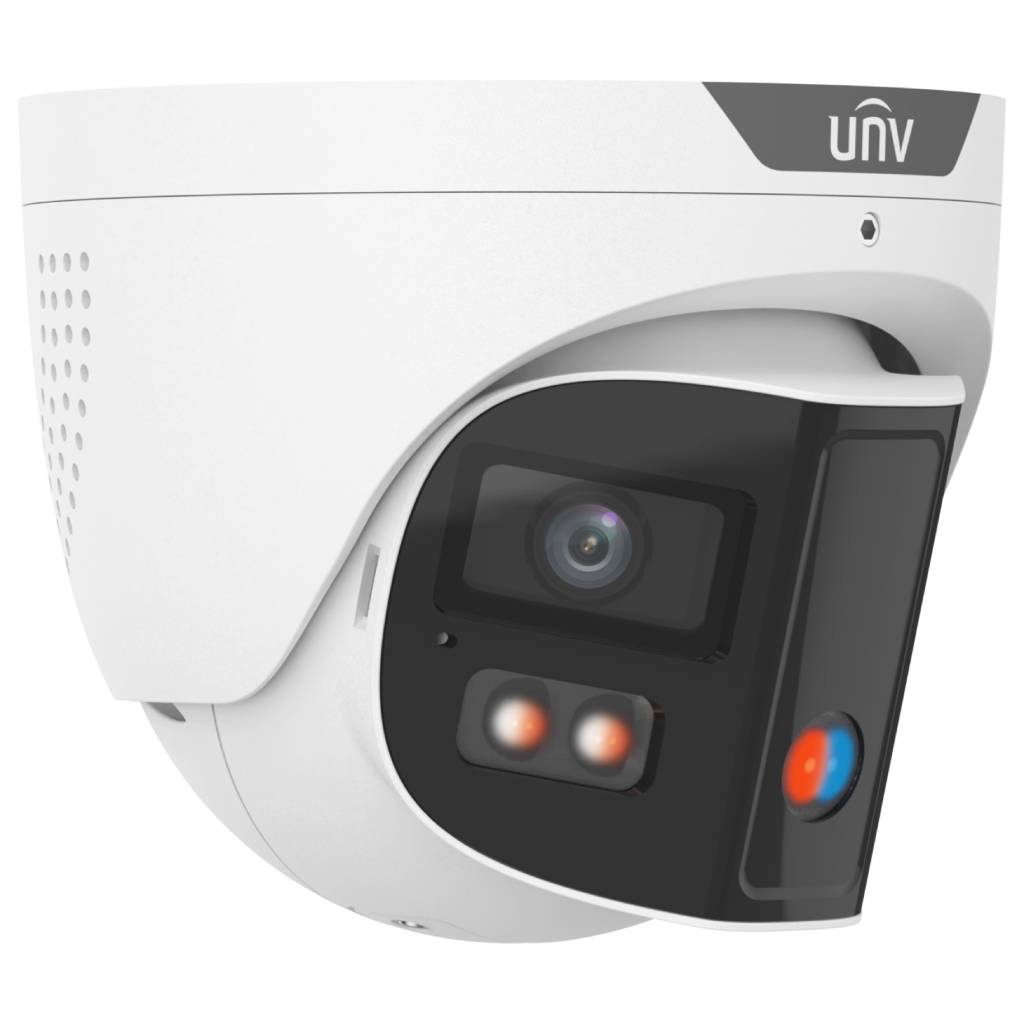

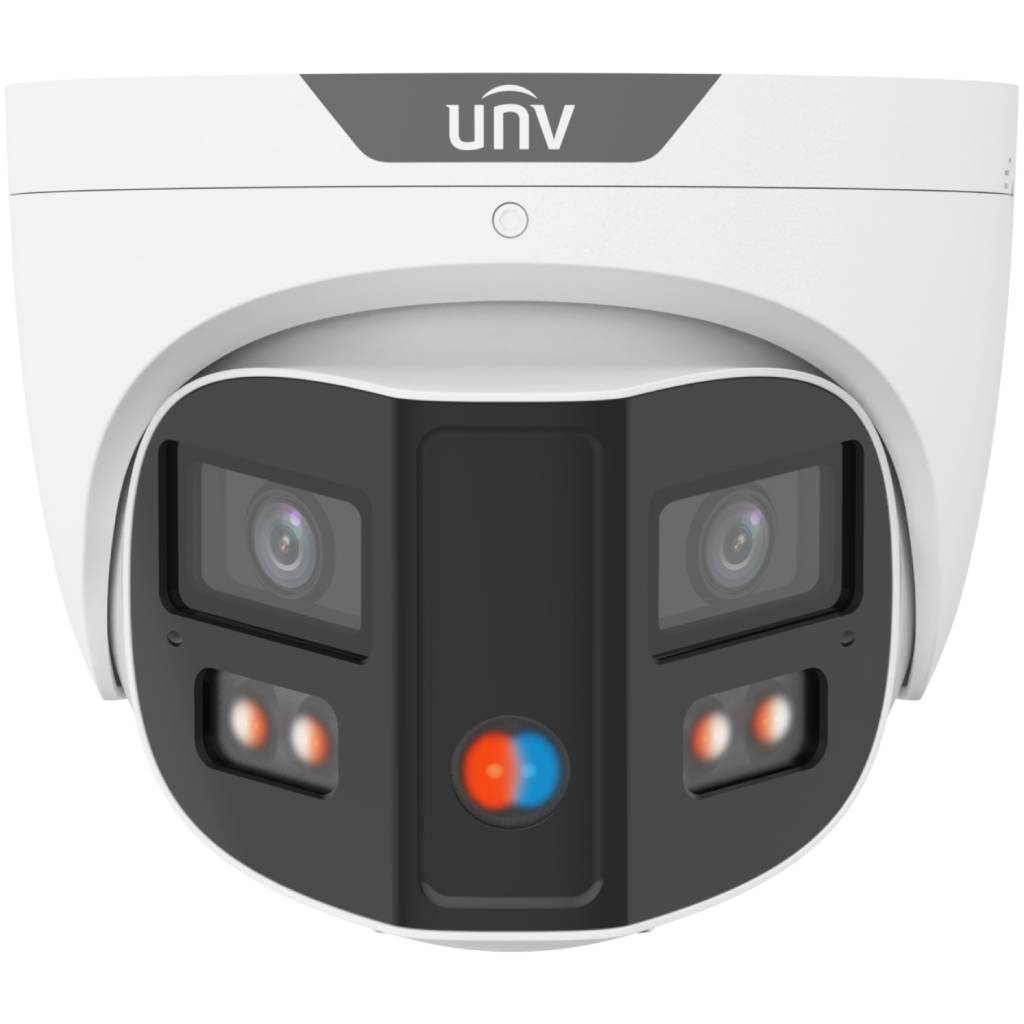

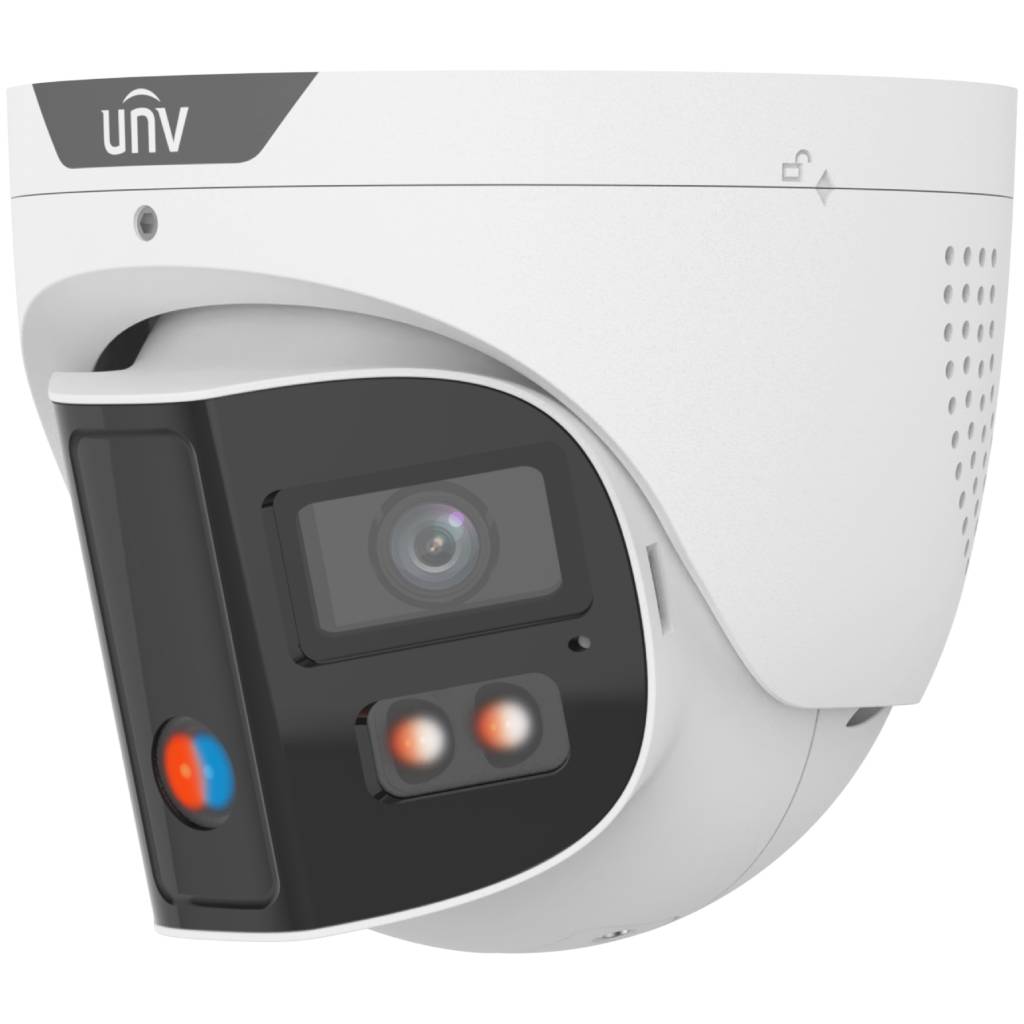

**NEW** Uniview 2 x 4MP IP Prime III Deep Learning AI Series 180 Degree Vandal Wide Angle Panoramic IR Tri-Guard Turret, Perimeter, ColorHunter, 2.8mm, 130dB WDR, 30m IR / White Light, POE / 12VDC, IP67, IK10, Built-in Mic / Speaker / Red / Blue Lights (W

**NEW** Uniview 2 x 4MP IP Prime III Deep Learning AI Series 180 Degree Vandal Wide Angle Panoramic IR Tri-Guard Turret, Perimeter, ColorHunter, 2.8mm, 130dB WDR, 30m IR / White Light, POE / 12VDC, IP67, IK10, Built-in Mic / Speaker / Red / Blue Lights (W

by Uniview
Please login to view price
SKU IPC3K28SE-ADF28KMC-DL-I0
Please login to Add to Cart

Notify me when back in stock

8MP Double-Light Alarm Binocular Duo-Lens Eyeball Tri-Guard Network Camera

  • High quality image with 8MP, 1/2.5"CMOS sensor
  • 8MP (4096*1860)@20fps
  • The double lens splicing technology is adopted to realize the horizontal viewing angle of 180°
  • Colorhunter technology ensures 24-hour full-colour images
  • Support red & blue warning light
  • 130dB true WDR technology enables clear image in strong light scene
  • Based on target classification, smart intrusion prevention significantly reduce false alarm caused by leaves, birds and lights etc., accurately focus on human and, motor vehicle and non-motor vehicle
  • Intelligent People Flow Counting and Crowd Density Monitoring
  • Smart intrusion prevention with Colour retrieval
  • Auto Scene Match (ASM)（Only WDR）
  • Alarm:1 in/1 out and Audio: 1 in/1 out
  • Built-in speaker and dual mics
  • Support 512 GB micro SD card


IPC3K28SE-ADF28KMC-DL-I0
Camera
Max Resolution8 MP
Sensor1/2.5" CMOS
Min. IlluminationColour: 0.0005 lux ( F1.0, AGC ON)
0 Lux with light
Day/NightIR-cut filter with auto switch (ICR)
ShutterAuto/Manual, 1 ~ 1/100000s
Adjustment AnglePan: 0° ~ 360°, Tilt: 0° ~ 75°, Rotate: 0° ~ 360°
S/N>52 dB
WDR130 dB
Lens
Focal Length2.8 mm
Iris TypeFixed
IrisF1.0
Field of View (H)180°
Field of View (V)65°
Field of View (D)180°
Lens TypeFixed
DORI
DORI Distance (Lens)2.8mm
DORI Distance (Detect)63.1m(206.7ft)
DORI Distance (Observe)25.2m(82.7ft)
DORI Distance (Recognize)12.6m(41.3ft)
DORI Distance (Identify)6.3m(20.7ft)
Illuminator
Supplemental LightDual light
Illumination Distance (IR)IR 30 m, Warm Light 30 m
Illumination Distance (Warm Light)IR 30 m, Warm Light 30 m
IR On/Off ControlAuto/Manual
Wavelength850 nm
Light On/Off ControlAuto/Manual
Video
Video CompressionUltra 265, H.265, H.264, MJPEG
H.264 Code ProfileBaseline profile, Main profile, High profile
Frame RateMain Stream: 8MP (4096*1860), Max 20fps;
Sub Stream: 2048*936, Max 20fps
Video Bit Rate128 Kbps to 16 Mbps
U-codeSupport
OSDUp to 8 OSDs
Privacy MaskUp to 4 areas
ROIUp to 8 areas
Video StreamDual Streams
Auto Scene Match (ASM)Support (Only WDR)
White BalanceAuto, Outdoor, Fine Tune, Sodium Lamp, Locked, Auto2
Digital Noise Reduction2D/3D DNR
Smart IRSupport
FlipN/A
DewarpingN/A
HLCSupport
BLCSupport
DefogDigital Defog
Image StabilizationN/A
Intelligent
Smart Intrusion PreventionCross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle)
Statistical AnalysisN/A
Attribute CollectionSIP with color retrieval
Events
Basic DetectionMotion Detection, Ultra Motion Detection, Tampering Alarm, Audio Detection
General FunctionWatermark, IP Address Filtering, Access Policy, ARP Protection, RTSP Authentication, User Authentication, HTTP Authentication, Alarm Input, Alarm Output
Audio
Audio CompressionG.711U, G.711A
Audio Bitrate64 Kbps
Two-way AudioSupport
SuppressionSupport
Sampling Rate8 kHz
Storage
Edge StorageMicro SD, up to 512 GB
Network StorageANR, NAS (NFS)
Network
ProtocolsIPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, SSL/TLS, SSH
Compatible IntegrationONVIF (Profile S, Profile G, Profile T),
API, SDK
User/HostUp to 32 users. 3 user levels: administrator, common user and operator
SecurityPassword Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF
ClientUNV-Link, UNV-Link Pro, EZStation
Web BrowserPlug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+, Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+
Interface
Audio I/O1 Input: impedance 35 kΩ, amplitude 2 V [p-p], 1 Output: impedance 600 Ω, amplitude 2 V [p-p]
Alarm I/O1/1
Serial PortN/A
Built-in MicBuilt-in two mics
Built-in SpeakerSupport
WIFIN/A
Network1 × RJ45 10 M/100 M Base-TX Ethernet
Video OutputN/A
Certification
EMCCE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 50130)
FCC (FCC 47 CFR part15 B)
SafetyCE-LVD (EN 62368-1)
CB (IEC 62368-1)
UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1)
EnvironmentCE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU)
ProtectionIP67 (IEC 60529)
IK10 (IEC 62262)
General
PowerDC 12V±25%, PoE (IEEE 802.3af)
Power ConsumptionMax 12.6W
Power InterfaceØ5.5 mm coaxial power plug
DimensionsØ128.7 x 109.9mm (Ø5.1”x 4.3”) (Ø x H)
Weight0.86kg (1.9lb)
MaterialMetal
Working Environment-30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing)
Storage Environment-30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing)
Surge Protection4 KV
Reset ButtonSupport
Web Client Language20 Languages: Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese

Datasheet
