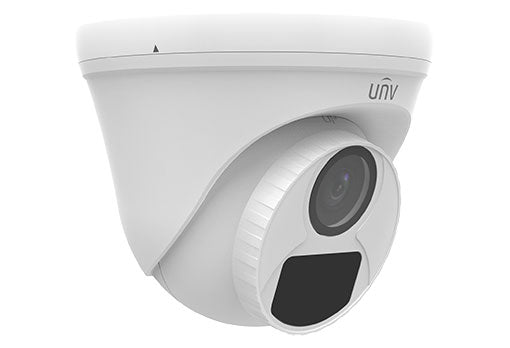

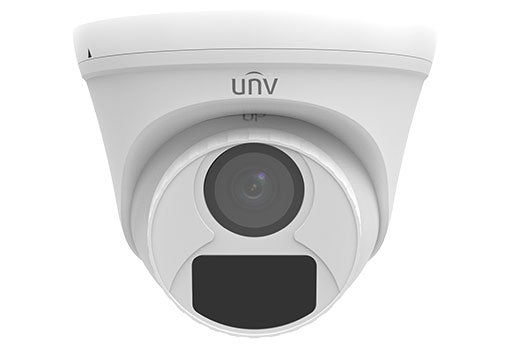

Uniview 2MP HDCVI IR Turret Camera, 2.8mm, DWDR, 20m IR, 12VDC, IP67 (Wall Mount: TR-WM03-D-IN, Junction Box: TR-JB03-I-IN)

Uniview 2MP HDCVI IR Turret Camera, 2.8mm, DWDR, 20m IR, 12VDC, IP67 (Wall Mount: TR-WM03-D-IN, Junction Box: TR-JB03-I-IN)

by Uniview
Please login to view price
SKU UAC-T112-F28
Please login to Add to Cart

Notify me when back in stock

2MP HD Fixed IR Turret Analog Camera

  • 2MP high quality image
  • TVI/AHD/CVI/CVBS
  • IR-cut filter with auto switch (ICR)
  • Supports 180° horizontal flip, 180° vertical flip
  • OSD configuration menu, easy to operate
  • IP67 waterproof and dustproof design, high reliability
  • OSD configuration menu in 11 languages
ModelUAC-T112-F28
Sensor
Pixel2MP
Size1/3"
Minimum illumination0.02 lux (F2.0, AGC ON)
0.00 lux (IR on)
Lens
Lens2.8mm
Lens mountM12
Angle of viewH: 90.5°  V: 49.6°  D: 109.5°
Illuminator
IlluminatorOne IR illuminator
Illumination distance20m
Lifetime≥60,000 hours
Resolution1080P: 1920(H)×1080(V)
720P: 1280(H) ×720(V)
Frame rateTVI/AHD/CVI: 1080P@30fps, 1080P@25fps; 720P@30fps, 720P@25fps
CVBS: PAL, NTSC
Shutter timePAL: 1/25s-1/50000s
NTSC: 1/30s–1/50000s
Exposure mode4 modes: Global (default), BLC, HLC, DWDR
Day/Night3 modes: Auto (default), Day, Night
Digital noise reduction2D
White balanceTwo modes: Auto (default), Manual
WDRDWDR
Smart IRSupport
FlipSupports 180° horizontal flip, 180° vertical flip.
Interface
Power5.5mm power interface
Video outputBNC, supports TVI/AHD/CVI/CVBS
Operating environment
Temperature-30℃ to 60℃(-22℉ to 140℉)
Humidity≤95% (RH, non-condensing)
Surge protection4KV
Ingress protectionIP67
General
PowerDC 12V(±25%), with reverse polarity protection and surge protection, Max 2.88W
MountSurface mount (default), optional backbox, wall mount bracket
DimensionsΦ118mm*96mm (diameter*height)
MaterialPlastic
Weight182g(0.401lb)
CertificationCB, CE, FCC

Datasheet
