| Decoding | Description |
| DecodingFormat | Ultra 265, H.265, H.264 |
| DecodingCapability | NVR504‑16B:Ultra 265/H.265: 2 x 16MP@30, 2 x 12MP@30, 4 x 4K@30, 6 x 5MP@30, 8 x 4MP@30, 10 x 3MP@30, 16 x 1080P@30 H.264: 2 x 16MP(4800*2688)@30, 2 x 12MP@30, 2 x 4K@30, 4 x 5MP@30, 6 x 4MP@30, 8 x 3MP@30, 14 x 1080P@30, 16 x 720P@30 NVR504‑32B:Ultra 265/H.265: 2 x 16MP@30, 2 x 12MP@30, 4 x 4K@30, 6 x 5MP@30, 8 x 4MP@30, 10 x 3MP@30, 16 x 1080P@30, 32 x 960P@25 H.264: 2 x 16MP(4800*2688)@30, 2 x 12MP@30, 2 x 4K@30, 4 x 5MP@30, 6 x 4MP@30, 8 x 3MP@30, 14 x 1080P@30, 30 x 720P@30, 32 x D1 |
| AudioCompression | G.711A, G.711U |
| Network | Description |
| IncomingBandwidth | 320Mbps |
| OutgoingBandwidth | 160Mbps |
| RemoteUsers | 128 |
| Protocols | TCP/IP;P2P;UPnP;NTP;DHCP;PPPoE;HTTP;HTTPS;DNS;DDNS;SNMP;SMTP;RTSP;802.1x;IPV6 |
| Browser(Plugin) | Windows:IE(IE10/11), Firefox (version 52.0 and above), Chrome(version 45 and above), Edge(version 79 and above) |
| Video/AudioInput | Description |
| IPVideoInput | NVR504‑16B:16‑ch NVR504‑32B:32‑ch |
| RCAAudioInput | 1‑ch |
| Video/AudioOutput | Description |
| HDMIOutput | HDMI:4K(3840x2160)/30Hz, 1920x1080/60Hz, 1920x1080/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz |
| VGAOutput | VGA:1920x1080/60Hz, 1920x1080/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz |
| RCAAudioOutput | 1‑ch |
| LiveviewDisplay | NVR504‑16B:1/4/6/8/9/16 NVR504‑32B:1/4/6/8/9/16/25/32 |
| CorridorModeScreen | NVR504‑16B:3/4/5/7/9/10/12/16 NVR504‑32B:3/4/5/7/9/10/12/16/32 |
| Two-wayAudio | Description |
| Two-wayAudio | 1‑ch, RCA(Using the audio input and output) |
| Snapshot | Description |
| FTP/Schedule/EventSnapshot | 4‑ch snapshot, up to D1 resolution |
| Recording | Description |
| RecordingResolution | 16MP/12MP/8MP/6MP/5MP/4MP/3MP/1080P/960P/720P/D1/2CIF/CIF |
| SynchronousPlaybackinLocal | 16‑ch |
| Smart | Description |
| VCADetectionbyIPC | Face Detection;Vehicle Detection;SIP(Intrusion Detection, Cross Line Detection, Enter Area, Leave Area);Ultra Motion Detection(UMD);Temperature Detection(Fire Detection, Smoking Detection, Temperature Measurement, Smoke and Fire Detection);People Counting(People Flow Counting, Crowd Density Monitoring);Video Metadata;Traffic Monitoring |
| VCASearch | Motor Vehicle Search;Non‑Motor Vehicle Search;Human Body Search;General Search;People Counting Report;Heat Map |
| SmartbyIPC | All channels (up to 8 images/s in total)Face Detection, Vehicle Detection, Temperature Detection, SIP, UMD, Video Metadata, Traffic Monitoring |
| Alarm | Description |
| GeneralAlarm | Defocus Detection;Scene Change Detection;Object Left Behind;Object Removed;Auto Tracking;Motion Detection;Tampering;Human Body Detection;Video Loss;Alarm Input;Audio Detection |
| AlertAlarm | IP Conflict;Network Disconnected;Disk Offline;Disk Abnormal;Illegal Access;Hard Disk Space Low;Hard Disk Full;Recording/Snapshot Abnormal |
| GUILanguage | Description |
| GUILanguage | 38 languages: Simplified Chinese, Traditional Chinese, English, Vietnamese, Thai, Turkish, Spanish (Latin America), Portuguese (Brazil), Spanish, Portuguese, French, German, Italian, Dutch, Polish, Czech, Hungarian, Slovak, Russian, Hebrew, Arabic, Ukrainian, Estonian, Bulgarian, Greek, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenia, Serbia, Korean, Japanese, Latvian, Lithuanian, Persian |
| HardDisk | Description |
| SATA | 4 SATA Interfaces |
| Capacity | Up to 16TB for each HDD(The maximum HDD capacity varies with environment temperature) |
| DiskGroup | Support |
| RedundantStorage | Support |
| DiskArrayType | RAID 1, 5 |
| ExternalInterface | Description |
| NetworkInterface | 2 RJ45 10M/100M/1000M self‑adaptive Ethernet Interface |
| USB | Front: 1 x USB2.0;Rear panel: 1 x USB2.0, 1 x USB3.0 |
| RS485 | 1 |
| RS232 | N/A |
| AlarmIn | 16‑ch |
| AlarmOut | 4‑ch |
| PowerSupply | DC 12V/5A |
| PowerSwitch | Support |
| WorkingEnvironment | Description |
| WorkingTemperature | ‑10 °C ~ 55 °C (14 °F ~ 131 °F) |
| WorkingHumidity | ≤ 90% RH (non‑condensing) |
| PowerConsumption(withoutHDD) | ≤ 20W |
| Dimensions | Description |
| Weight(withoutHDD) | ≤ 3.4Kg (7.50lb) |
| Dimensions | NVR504‑16B:440mm × 344mm × 48mm(17.3"×13.5"×1.9") NVR504‑32B:440mm × 344mm × 48mm (17.3"×13.5"×1.9") |
| Certification | Description |
| Certification | CE;FCC;UL;RoHS;WEEE |
| CE | EN 55032, EN 61000‑3‑3, EN IEC 61000‑3‑2, EN 55035 |
| FCC | Part15 Subpart B |

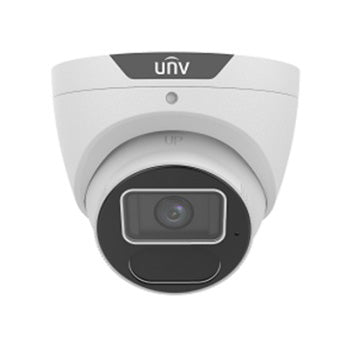

Uniview 6MP IP Prime II Deep Learning AI Series IR Turret Camera, Perimeter, LightHunter, 2.8mm, 130dB WDR, 40m IR, Triple Streams, Built-in Mic, P...
View full details

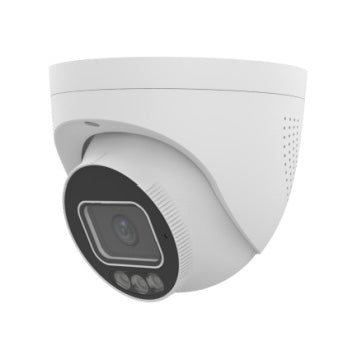

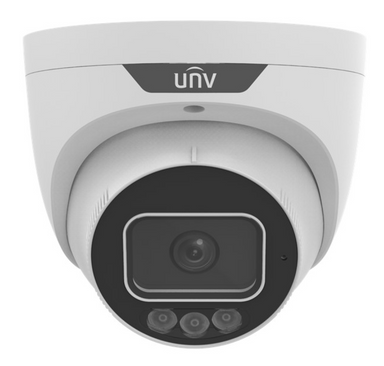

Uniview 6MP IP Prime II Deep Learning AI Series IR Tri-Guard 2.0 Turret, Perimeter, LightHunter, 2.8mm, 130dB WDR, 30m IR / White Light, Triple Str...
