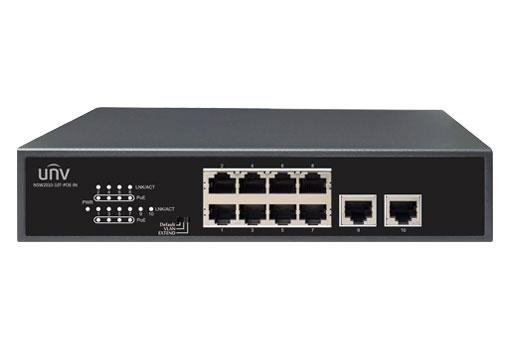

Uniview 8 x POE 10/100Mbps Ethernet Port Network Switch, 120W, Up to 250m Transmission Distance on EXTEND Mode, 2 x Uplink, Max 30W Per Port

by Uniview

Notify me when back in stock

Multiple working modes to address your business needs:Normal, Secure and Surveillance
Support port traffic control
Support for secure mode, all downlink ports can communicate only with uplink ports
Up to 250m transmission distance on surveillance mode
Support buffer optimization
All metal housing, safe and reliable
Ports10×100Mbps network ports (RJ45), including 8 PoE ports
Switching capacity2Gbps
Forwarding performance1.49Mpps
Packet Buffer2Mbit
Dimensions (W×D×H)220mm x 150mm x 44mm(8.7"×5.9"×1.7")
Power supplyAC: 100-240V, 50/60Hz
Max. PoE PowerMax capacity: 120W
Max capacity for single port: 30W
Switch Power122W
Surge ProtectionCommon mode ±6KV  Differential mode ±4KV
Electrostatic standardCommon mode ±6KV  Differential mode ±8KV
Cooling Fans0
Mean Time Between Failure(MTBF)>50000 hours
Operating temperature0°C-40°C (32°F-104°F)
Operating humidity10%~90% (noncondensing)
Storage humidity5%~90% (noncondensing)
Steady on: AC input is normal
Off: No AC input
Off: No PoE power supply
Steady on: PoE power supply is normal
Flashing: PoE power supply is abnormal
Off: No link
Steady: Linked at 10/100Mbps
Flashing: Transmitting data
Off: Linked at 10/100Mbps
On: Linked at 1000Mbps
Working ModeDefault(Normal mode) : All ports can communicate with each other.
VLAN(Secure mode): Downlink ports can communicate only with uplink ports.
EXTEND(Surveillance mode): Transmission distance up to 250 meters ,also downlink ports can communicate only with uplink ports.
