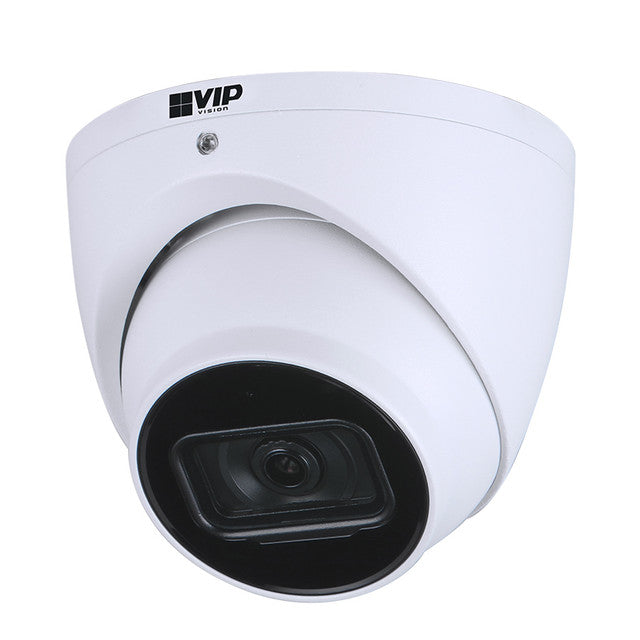

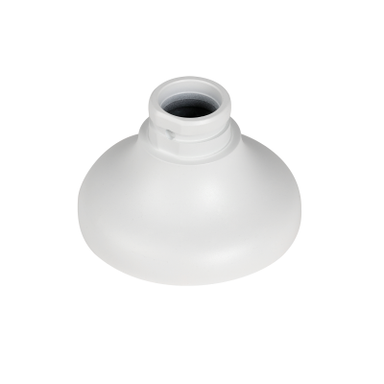

VIP* 6MP IP Professional AI Series Motorised IR Eyeball, Low Light, 2.7-13.5mm Lens, 120dB WDR, 40m IR, POE or 12VDC, IP67, MicroSD (Junction Box: VSBKTA130E)

SKU VSIPP-6DIRMG-I2

Notify me when back in stock

Please Contact Zankap
Camera
Image Sensor
1/2.7’’ 6.0MP Progressive Scan CMOS
Max. Resolution
6.0 Megapixel
Effective Pixels
3072 (H) x 2048 (V)
RAM / ROM
1GB / 128MB
Min Illumination
0.005 Lux/F1.5 (Color)
S/N Ratio
> 56dB
Infrared System
2 x Infrared LED, 40m range, Auto/manual on/off control
Lens
Lens Type
Motorised Varifocal
Lens / Iris
2.7 ~ 13.5mm F1.5 Motorised Varifocal Lens with Fixed Iris
Field of View
Horizontal: 99°~28°, Vertical: 71°~21° (5x Optical Zoom)
Focus
Auto Focus / 0.8m Min. Focus Distance
DORI
Detect (25px/m)
64m (wide) / 210m (tele)
Observe (63px/m)
26m (wide) / 84m (tele)
Recognise (125px/m)
13m (wide) / 42m (tele)
Identify (250px/m)
6m (wide) / 21m (tele)
Video
Resolution
6.0MP (3072 × 2048) to CIF (352 x 288)
Frame Rate (Main)
6.0MP (1 ~ 25fps)
Frame Rate (Sub)
D1 (1 ~ 25fps)
Frame Rate (Third)
1080p (1 ~ 25fps)
Video Compression
H.265 / H.264 / H.264H / H.264B / MJPEG
Bit Rate
H.265: 3 ~ 8192Kbps / H.264: 3 ~ 8192Kbps
Bit Rate Control
Constant bit rate (CBR) / Variable bit rate (VBR)
Day/Night
Auto (ICR) / Color / B&W
Lighting Compensation
BLC / HLC / WDR (120dB) / AI SSA
Smart Scene Adaptive (SSA)
Yes
White Balance
Auto / Natural / Street Lamp / Outdoor / Manual / Regional Custom
Gain Control
Auto
Noise Reduction
3D DNR
Picture Control
Mirror / Flip (0°, 90°, 180°, 270°)
IVS
Intelligent Functions
Motion Detection (4 zones), Region of Interest (4 zones), Privacy Masking (4 zones), Smart Infrared
Perimeter Protection
Tripwire & Intrusion (Add recognition of humans & vehicles)
Face Detection
N/A
Face Attributes
N/A
People Counting
N/A
Heat Map
N/A
Event Trigger
N/A
Intelligent Search
Via NVR Smart Search, Search tripwire/ intrusion events by people or vehicle
Network
Ethernet
RJ-45 (10/100Base-T)
Protocol
IPv4; IPv6; HTTP;TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP
Streaming Method
Multicast
Max. User Access
20 Users
Interface
Video Interface
N/A
Audio Interface
Built-in Mic / Audio Compression - G.711a; G.711Mu; G726
Alarm Interface
N/A
RS485
N/A
Edge Storage
MicroSD Card (up to 256GB) / NAS
Interoperability
ONVIF / P2P / CGI / Milestone / Genetec
Environmental
Power Supply
12VDC / PoE (802.3af)
Power Consumption
<8.9W
Operating Conditions
-30°C ~ +60°C / ≤95% RH
Ingress Protection
IP67
Vandal Resistance
N/A
Series
Professional AI Series
Camera Type
Turret
Housing
Metal
Pan/Tilt/Rotation
Pan: 0° ~ 360°, Tilt: 0° ~ 78°, Rotation: 0° ~ 360°
ePoE
No
Dimensions
Ø122mm x 108mm
Net Weight
0.715kg
Warranty (Years)
4
