VIP* Vision Passive HDCVI / Analogue Balun Pair With Video Transmission Range Up To 250M (At 1080P) Or 400M (At 720P)

by VIP Vision

SKU VSBALHDP

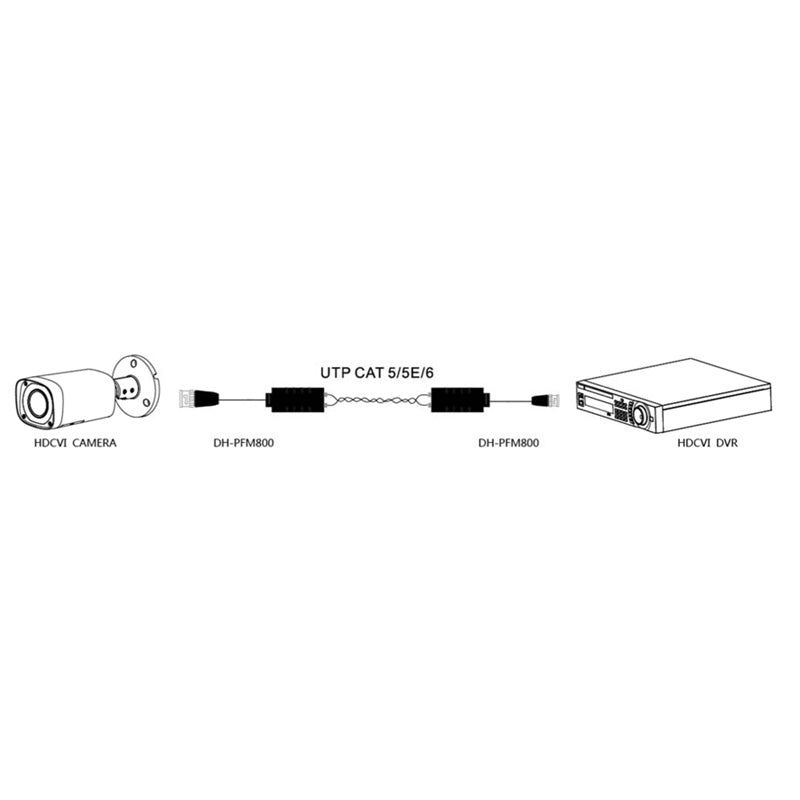

The VSBALHDP allows installer to minimise the cost of wiring for surveillance camera installations by using network cabling such as CAT6 or CAT5e instead of Coax Cable. Video transmission range from up to 100m (at 4K Ultra HD), 250m (at 1080p), 200m (at 4.0MP) or 400m (at 720p).

General

Resolution

720p/1080p/4.0MP/4K

Compatible Format

HDCVI

Category Type

UTP CAT 5E/6 (R＜10Ω/100M)

ESD

1a contact discharge electricity level 3, 1b air discharge electricity level 3, Per:IEC61000-4-2

MTBF

＞10000H

BNC Male

75 ohms

Anti-Interference

＞60db

UTP Cable

100 ohms

Connectors

Coaxial Cable Connector

2KV(common-code) Per:IEC61000-4-5

Coaxial Video Connector

BNC-M

Twisted-pair Video Connector

Push-terminal

UTP Cable Connector

2KV(different-code),4KV(common-code),Per:IEC61000-4-5

Transmission

Transmission Distance

720p: 400M (max) , 1080p: 250M (max), 4.0MP: 200M (max), 4K: 100M (max)

Transmission Signal

1 channel

Environment

Operating Temperature

-10~55℃

Operating Humidity

0~95%(non-condensing)

Storage Temperature

-20~70℃

Dimensions

53mm*20mm*17mm (L*W*H)

Warranty (Years)

Shipping Weight and Dimensions

Includes product packaging

Width

150 mm

Height

120 mm

Depth

30 mm

Weight

0.06 kg

Please Contact Zankap

VSBALHDP Product Brochure (PDF) 0.09 MB

CE/ RCM Certificate

RoHS Certificate
