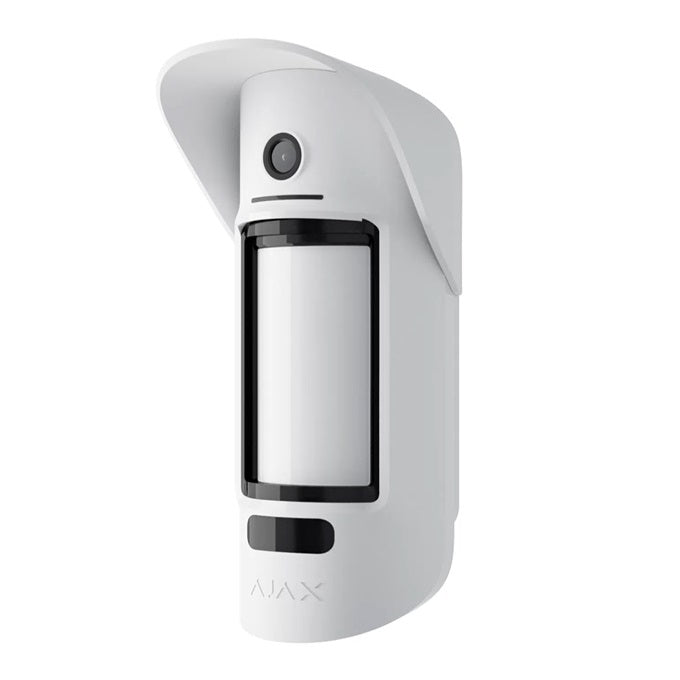

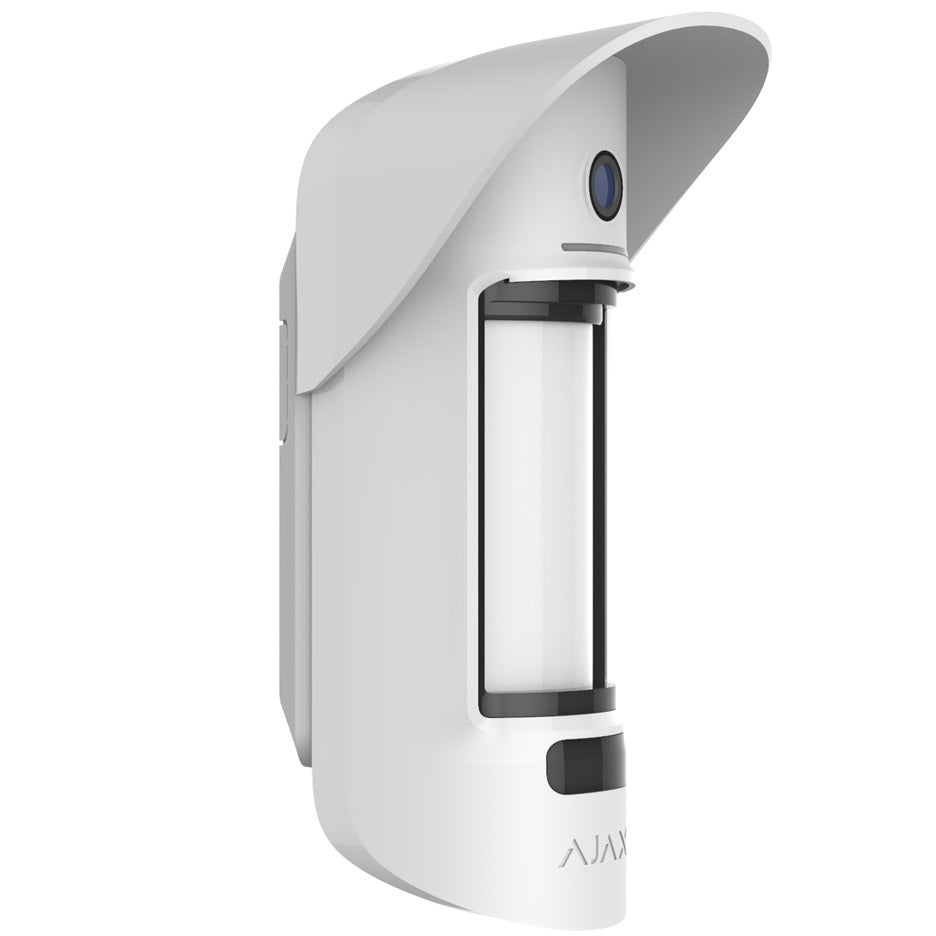

Ajax MotionCam Outdoor WHITE - 2 Way Wireless Pet Immune Dual PIR Motion Detector With Photo Verification / Anti-Mask / Outdoor Hood / Adjustable Detection Range 3-15m

Classification

Electro-optical radio channel security detector

Type of detector

Wireless

Installation method

Outdoors/indoors

Recommended installation height

0,8 – 1,3 m

Compatibility

Hub 2, Hub 2 Plus

Does not work with ReX radio signal range extender

Sensing element

2 × PIR sensor

Motion detection distance

Adjustable, from 3 to 15 m

Pet immunity

Animals up to 80 cm tall

Sensitivity

Adjustable, 3 levels

Motion detector’s viewing angle

Horizontal 88,5°

Vertical 80°

Camera’s angle

Horizontal 105°

Vertical 102°

Distortion

Barrel, –77%

Photo in case of alarm

Photo resolution:

• 320 × 176 pixels (by default)
• 640 × 352 pixels

Shooting series up to 5 photos

Infrared light for shooting in the dark

Available

Power supply

4 × CR123A batteries

Supply voltage

3 V

Battery life

Up to 3 years (up to 2.5 years if “Delay when entering” setting is activated)

Jeweller radio technology

Communication range with the hub — up to 1,700 m in an open space

Two-way communication between hub and device

Operating frequencies — 868.0–868.6 MHz⁴

Self-adjusting RF output power — up to 20 mW

Block encryption with a dynamic key

Detector polling period — 12−300 s

Frequency hopping

Alarm delivery time

0.15 s

Wings radio technology

Transmission of a series of photos

Photo delivery time with a default settings: up to 9 seconds

Temperature sensor

Available

Operating temperature range

From −25°С to +60°С

Operating humidity

Up to 95%

Protection class

IP55

Anti-sabotage

Anti-masking

Protection against forgery

Jamming detection

Tamper-resistant

Remote configuration and testing

Available

CMS compatibility

CMS connectivity: Contact ID, SIA (DC-09)

CMS software supporting visual alarms verification

Dimensions

206 × 108 × 93 mm

Weight

470 g

Warranty

24 months from the date of sale

Complete set

MotionCam Outdoor motion detector

SmartBracket mounting panel

4 × CR123A batteries (pre-installed)

Installation kit

User's guide
