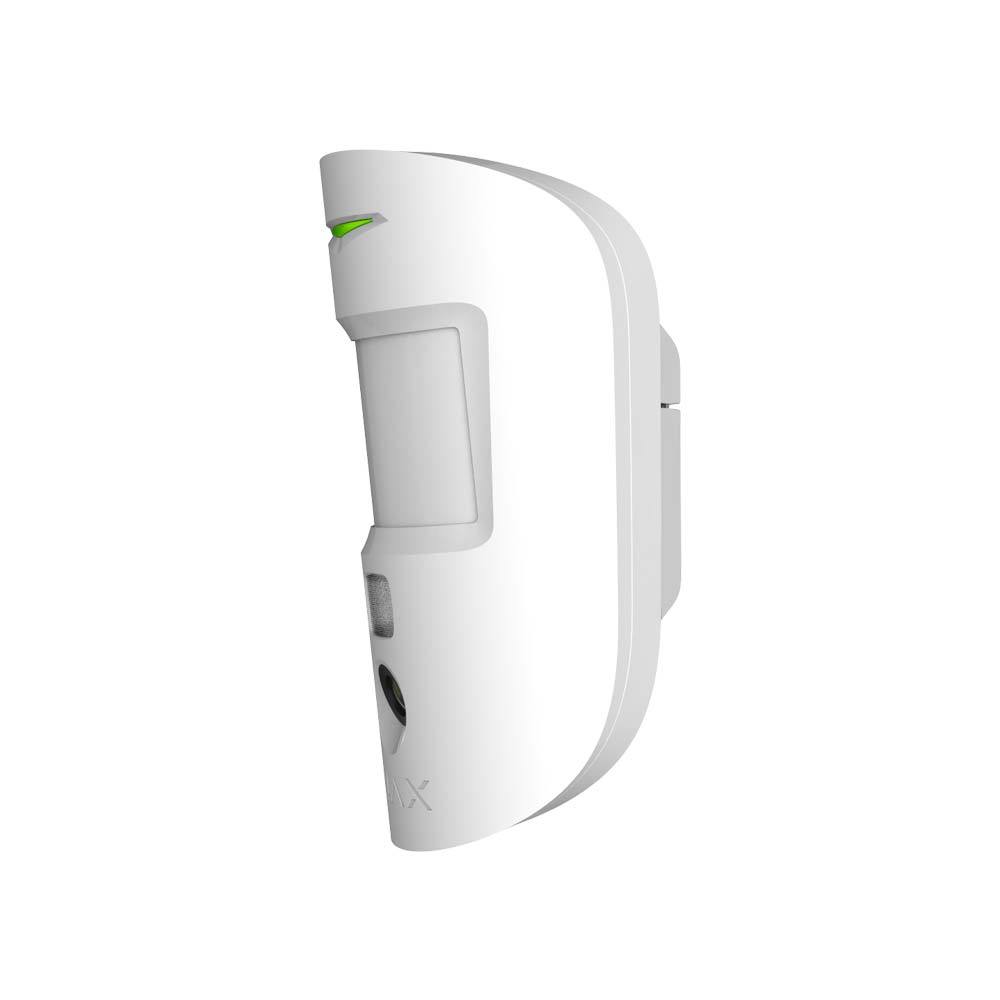

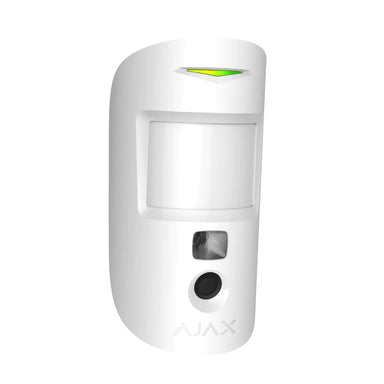

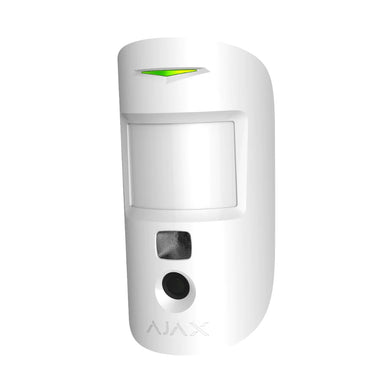

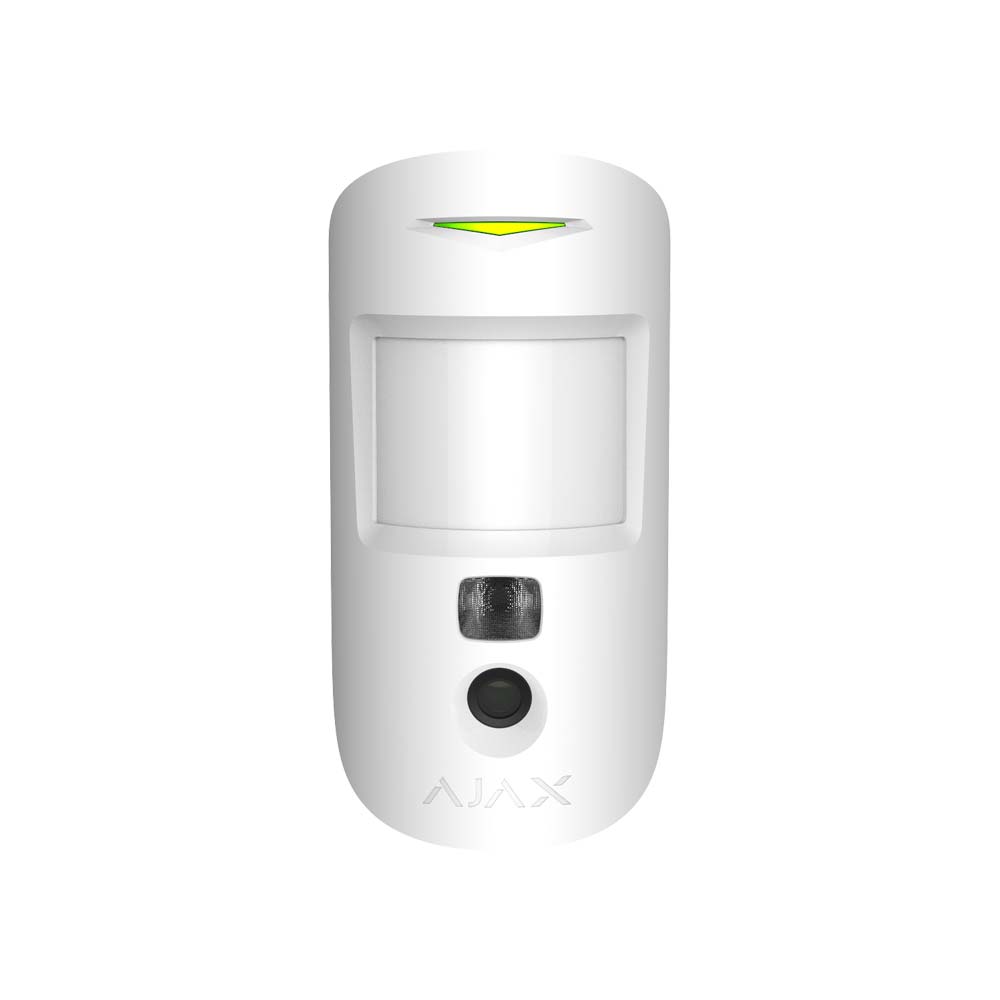

Classification | Electro-optical combined radio channel security detector with a photo camera |
Detector type | Wireless |
Installation | Indoors |
Motion detection distance | Up to 12 m |
Pet immunity | Weight: up to 20 kg Height: up to 50 cm |
Compatibility | Only with Hub 2, Hub 2 Plus |
Sensing element | PIR-sensor |
Alarm signal delivery time | 0.15 sec |
Detection angles | Horizontal β 88.5Β° Vertical β 80Β° |
Camera view angle | 90Β° |
Photo verification | Time to deliver a photograph with default settings: up to 9 sec Photo quality: up to 640 Γ 480 Pictures in a series: 1-5 pcs |
IR-backlight for night mode pictures | Available |
Sensitivity | Adjustable, 3 levels |
Recommended installation height | 2.4 m |
Power supply | Batteries: CR123A (x2) Power supply voltage: 3 V Battery life: up to 4 years (up to 2.5 years if βDelay when enteringβ setting is activated) |
Jeweller radio technology | Communication range with detectors: up to 1,700 m in the line of sight Two-way communication between devices Operating frequencies: 868.0-868.6 MHz Self-adjusting RF output power: up to 20 mW Block encryption based on AES algorithm Detector polling period: 12β300 s Frequency hopping
|
Wings radio technology | Transmission of visual alarm verifications |
Temperature sensor | Available |
Operating temperature range | From 0Β°C to +40Β°C (manufacture date up to June 1, 2020) From -10Β°C to +40Β°C (manufacture date from June 1, 2020) |
Operating humidity | Up to 75% |
Anti-sabotage | Fraud protection Jamming notification Tamper-resistant |
CMS compatibility | Motion alarms are transmitted to CMSs that support SIA (DC-09) and Contact ID protocols. Visual alarm verifications are transmitted to the Manitou, ABsistemDC(NG),WBB, Horus, V1/F1, Kronos, eLipse, Sentinel, MASterMind, Stages and SBN CMS, and Ajax PRO Desktop app |
Remote configuration and testing | Yes |
Protection class | IP50 |
Dimensions | 135 Ρ
70 x 60 mm |
Weight | 167 g |
Warranty | Replacement and repair for a period of 24 months from the date of sale. The warranty does not cover batteries.
|
Complete Set | MotionCam motion detector SmartBracket mounting panel x2 CR123A batteries (pre-installed) Installation kit Quick Start Guide |
Certification | Security Grade 2, Environmental Class II in conformity with the requirements of EN 50131 |
