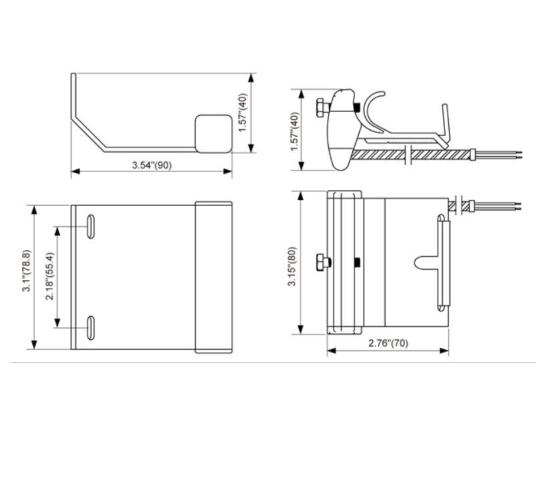

SALE Tane* Channel Mount Fixed Panel Roller Shutter Reed Switch

by Tane

SKU TANE-66WG

Extreme protection for Home & Commercial High value properties.

The High Security Field is created by balancing the external and internal magnetic fields.

Attempting to bring an external magnet to defeat the security switch triggers the alarm.

Part Number	Gap Inch (mm)	Loop Open/Closed	Reed Form	Max. Contact Rating (W)	Max. Initial Contact Resistance (mΩ)	Max. Switching Voltage (V)	Max. Switching Current (A)
FM-102 HS	.39″~.79″ (10~20)	CLOSED	Normally Open	3	100	30	0.2
FM-106 HS	.39″~.98″ (10~25)	CLOSED	Normally Open	3	100	30	0.2
TANE-55 HS	.47″~.94″ (12~24)	CLOSED	Normally Open	3	100	30	0.2
SM-35 HS	.39″~.98″ (10~25)	CLOSED	Normally Open	3	100	30	0.2
TANE-60 QC HS	.2″~.59″ (5~15)	CLOSED	Normally Open	3	100	30	0.2
TANE-50 HS	.31″~.79″ (8~20)	CLOSED	Normally Open	3	100	30	0.2
GP-23 HS	.39″~.94″ (10~24)	CLOSED	Normally Open	3	100	30	0.2
SS-40 HS	.59″~1.1″ (15~28)	CLOSED	Normally Open	3	100	30	0.2
MET-200 HS	.59″~1.38″ (15~35)	CLOSED	Normally Open	3	100	30	0.2
MET-200AR HS	.59″~1.38″ (15~35)	CLOSED	Normally Open	3	100	30	0.2
SM-20 HS	.59″~1.77″ (15~45)	CLOSED	Normally Open	3	100	30	0.2
TANE-66WG HS	.39″~1.97″ (10~50)	CLOSED	Normally Open	3	100	30	0.2
TANE-96BI HS	.39″~2.17″ (10~55)	CLOSED	Normally Open	3	100	30	0.2
TANE-96BI LG HS	.39″~2.17″ (10~55)	CLOSED	Normally Open	3	100	30	0.2
