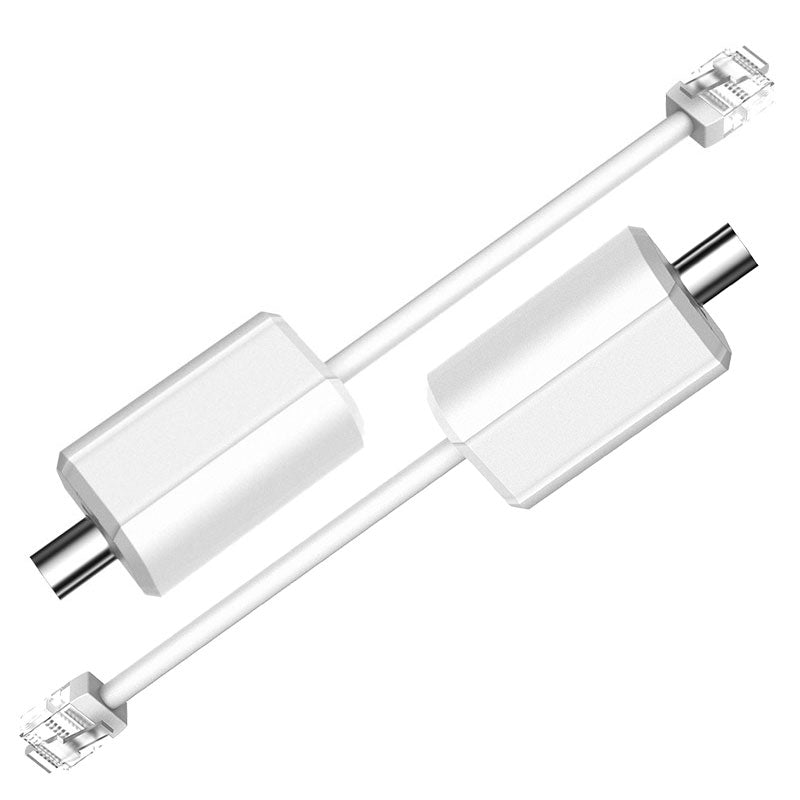

Secureview Ethernet Over Coax RJ45 Converter Pair - Network Connections To And From Coaxial Cable

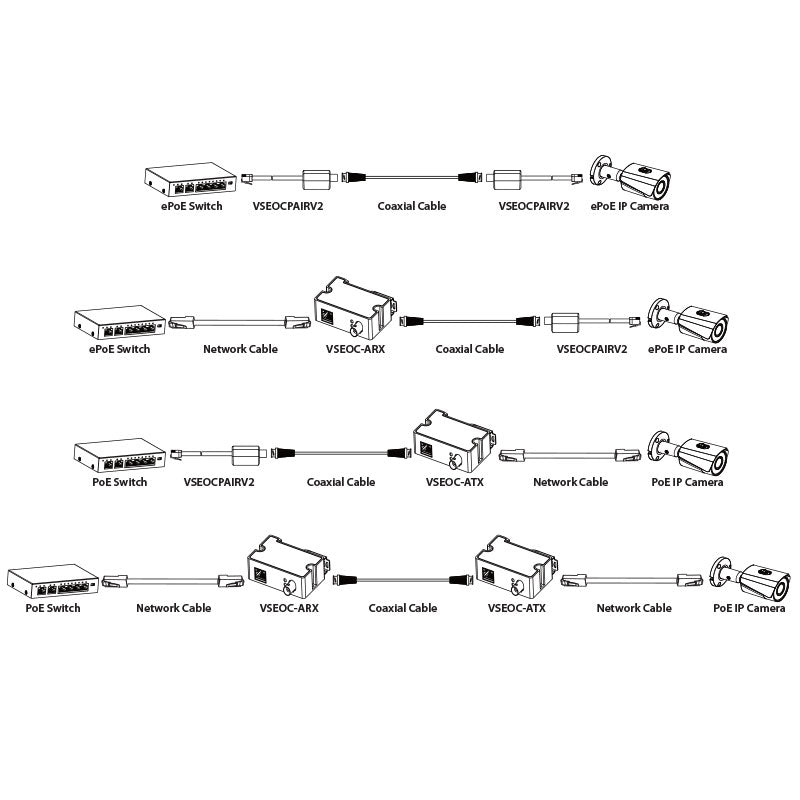

With these converters, you can repurpose existing coaxial cabling to be used with IP security systems

  • 1 x RJ45 10/100Mbps port, 1 x BNC port
  • Supports IEEE802.3 & IEEE802.3u standards
  • Supports RG59 coaxial cable: 400m/100Mbps, 1000m/10Mbps
  • Supports MDI/MDIX self-adaption
  • Supports long range power supply transmission via coaxial cable
  • Two converters included
Dimensions
56mm x 27mm x 21mm
Network Protocol
IEEE802.3, IEEE802.3u
Operating Environment
-40°C-60°C / <95% RH
PoE Protocol
Based on the power input from the ePoE switch
Ports
1 x 10/100 Mbps Base-TX, 1 x BNC
Power Consumption
<1W
Surge Protection
Common Mode: 6KV / Differential Mode: 2KV
Transmission Bandwidth
RG59 coaxial cable: 400m/100Mbps, 1000m/10Mbps
Weight
28g
Warranty (Years)
4

Shipping Weight and Dimensions

Includes product packaging

Width
130 mm
Height
72 mm
Depth
80 mm
Weight
0.10 kg







CE/ RCM Certificate

RoHS Certificate
