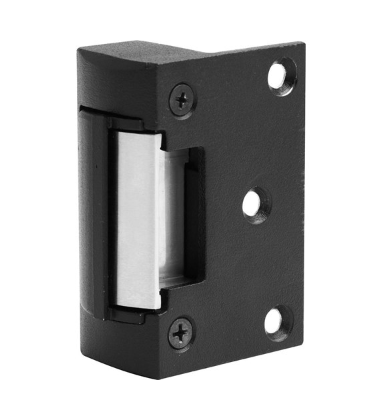

ES150 Surface Mounted Weather Resistant Electric Strike With Rim Or Surface Type Dead Latches

Key Features

  • Configure to fail safe or fail secure
  • Easy installation suitable for steel and wooden door frames
  • Can be simply controlled by a keypad, keyswitch or integrated into any access control system
  • Stainless steel striker for extra strength and durability
  • Multi Voltage 12Vdc & 24Vdc
  • Solenoid rated for continuous use
  • IP56 weather resistant version available
  • TRICARE 5 Year Warranty


  • Surface or rim mounted applications
  • Suitable for use with all access control systems
  • Can be easily installed on steel and wooden door frames
  • Exposed areas

Standards and Compliance

  • CE Approved
  • C-Tick Certified
  • IP56 Rated

12Vdc & 24Vdc

250 mA @ 12Vdc - 125mA @ 24Vdc

Solenoids rated for continuous use.


Holding Force
680kg Static Strength Rating

Cycle tested to 1,000,000 operations

Operational temperature range - 20°C to +60°C
Weather resistant construction available (IP56)

Solid Stainless Steel Construction

Stainless Steel

Specification Statement
The electric strike must be suitable for surface mount applications for use with rim or surface mount door locks. Where Power To Lock and Power To Open functions may be required in the same building, an individual strike is interchangeable from either "Power to Lock" or "Power to Open" on site.

The electric strike should not consume current greater than 243mA @ 12Vdc or 187mA @ 24Vdc. Certifications must include CE and C-Tick.

The strike should be tested to 1 million operations and have a minimum holding force not less than 680kg.
