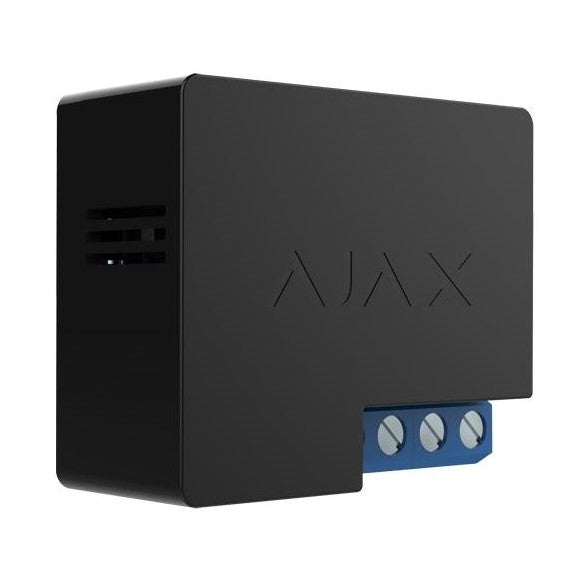

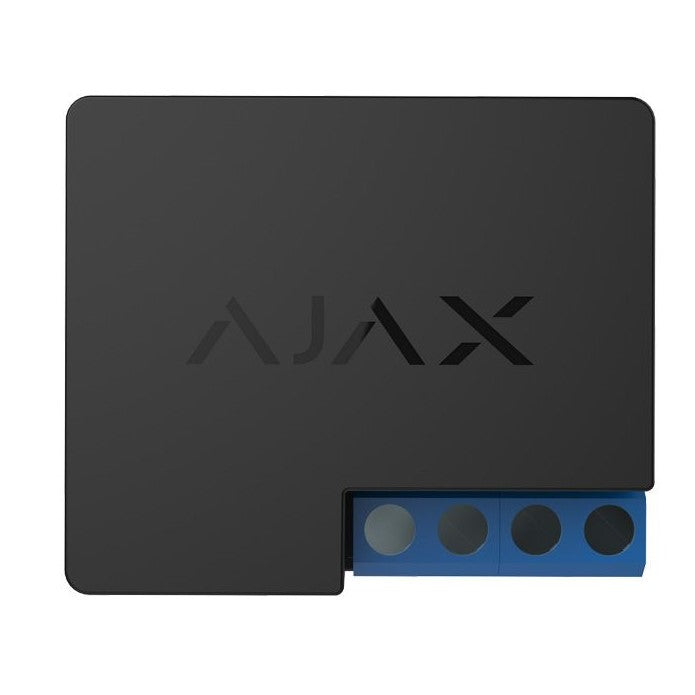

Ajax Relay - 2 Way Wireless Dry Contact Relay 7-24VDC To Control Garage Doors And Other Low Voltage Devices

Ajax Relay - 2 Way Wireless Dry Contact Relay 7-24VDC To Control Garage Doors And Other Low Voltage Devices

by Ajax
Please login to view price
SKU RELAY
Please login to Add to Cart

Notify me when back in stock

Two Way Wireless Dry Contact Electromagnetic Relay 7-24VDC

  • Voltage protection: is activated if the relay supply voltage exceeds the range of 6.5–36.5 V⎓. Protects Relay from voltage surges
  • Temperature protection: is activated if the relay heats up to temperatures above 65°C. Protects relay from overheating
  • The Ajax security system can transmit alarms and events to the PRO Desktop monitoring app as well as the central monitoring station (CMS) via SurGard (Contact ID), SIA DC-09 (ADM-CID), ADEMCO 685, and other proprietary protocols



Actuating elementElectromagnetic relay
Number of switchings⩾ 200,000
Supply voltage range7 – 24 V⎓
Voltage protectionMinimum — 6.5 V⎓
Maximum — 36.5 V⎓
Maximum load current5 A at 24 V⎓
13 A at 230 V~
Operating modePulse or bistable
Pulse duration0.5 to 255 s
Maximum current protectionNo
Parameter controlVoltage
Energy consumption in standby modeUp to 1 W
Radio communication protocolJeweller

Learn more
Radio frequency band866.0 – 866.5 MHz
868.0 – 868.6 MHz
868.7 – 869.2 MHz
905.0 – 926.5 MHz
915.85 – 926.5 MHz
921.0 – 922.0 MHz

Depends on the sales region.
CompatibilityAll Ajax hubs and radio signal range extenders
Maximum radio signal strengthUp to 25 mW
Radio signal modulationGFSK
Radio signal range1,000 m (in an open space)

Learn more
Polling interval12–300 s (36 s by default)
Protection classIP20
Operating temperature range-20°C to +64°C
Maximum temperature protectionOver +65°C at the place of installation
Over +85°C inside Relay
Operating humidityUp to 85% with no condensation
Dimensions39 × 33 × 18 mm
Weight25 g
Service life10 years
  •
