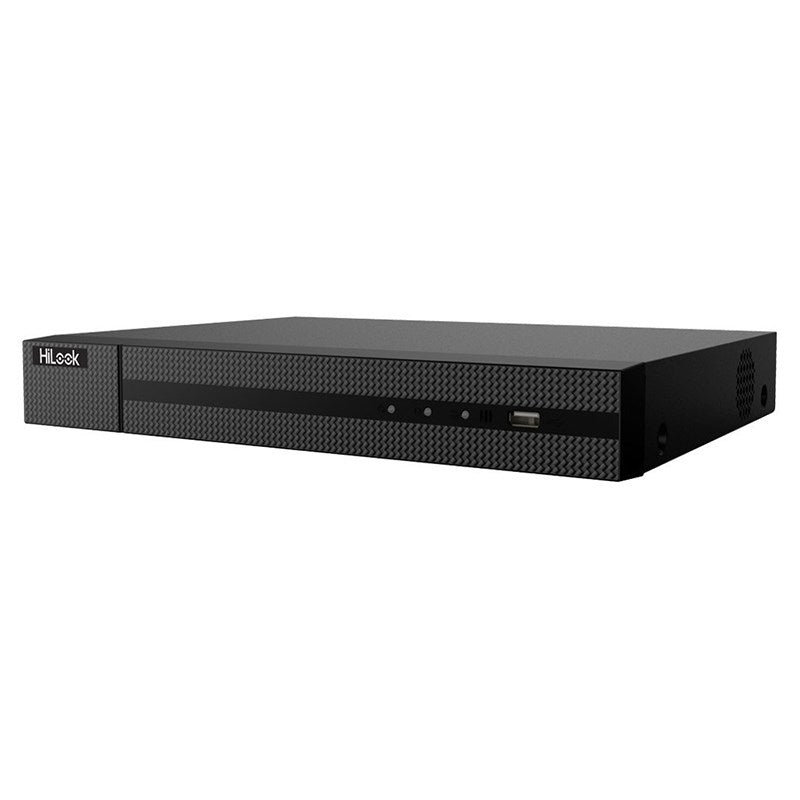

HiLook 4 Channel Value Series NVR, 80MB, 1 x HDMI / 1 x VGA, 1 x HDD, 1 x Gigabit NIC, 4 x POE, 1RU **NO HDD INSTALLED**

HiLook 4 Channel Value Series NVR, 80MB, 1 x HDMI / 1 x VGA, 1 x HDD, 1 x Gigabit NIC, 4 x POE, 1RU **NO HDD INSTALLED**

by HiLook
Please login to view price
SKU NVR-104MH-C-4P
Please login to Add to Cart

Notify me when back in stock

HiLook 4-ch Mini 1U 4 PoE 4K NVR

  • Up to 4-ch IP camera inputs
  • H.265+/H.265/H.264+/H.264 video formats
  • Up to 1-ch@8 MP/3-ch@4 MP/6-ch@1080p decoding capacity
  • Up to 40 Mbps incoming bandwidth

  • Video And Audio
  • IP Video Input4-ch
  • Incoming Bandwidth40 Mbps
  • Outgoing Bandwidth80Mbps
  • HDMI OutputHDMI:,4K (3840 × 2160)/30Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz,VGA: ,1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz,
  • VGA Input1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
  • Video Output ModeHDMI/VGA simultaneous output
  • Audio Output1-ch, RCA (Linear, 1 KΩ)
  • Two-Way Audio1-ch, RCA (2.0 Vp-p, 1kΩ)
  • Decoding
  • Decoding FormatH.265+,H.265,H.264+,H.264,MPEG4
  • Recording Resolution8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/ 720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
  • Synchronous Playback4-ch
  • Decoding Capability1-ch @ 8 MP / 4-ch @ 1080p
  • Network
  • Remote Connection32
  • Network ProtocolTCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
  • Network Interface1, RJ-45 10/100 Mbps self-adaptive Ethernet interface
  • PoE
  • Interface4-ch, RJ-45 10/100 Mbps self-adaptive Ethernet interface
  • Power≤ 50 W
  • StandardIEEE 802.3 af/at
  • Auxiliary Interface
  • SATA1 SATA interface
  • CapacityUp to 8 TB capacity for each disk
  • USB Interface2 × USB 2.0
  • General
  • Power Supply48 VDC, 1.35 A
  • Consumption≤ 10 W (without HDD and PoE off)
  • Working Temperature-10 to +55° C (14 to 131° F)
  • Working Humidity10% to 90%
  • Chassis1U
  • Dimension (W × D × H)265 × 225 × 48 mm (10.2" × 8.9" × 1.9")
  • Weight≤ 1 kg (without HDD, 2.2 lb.)
  •
