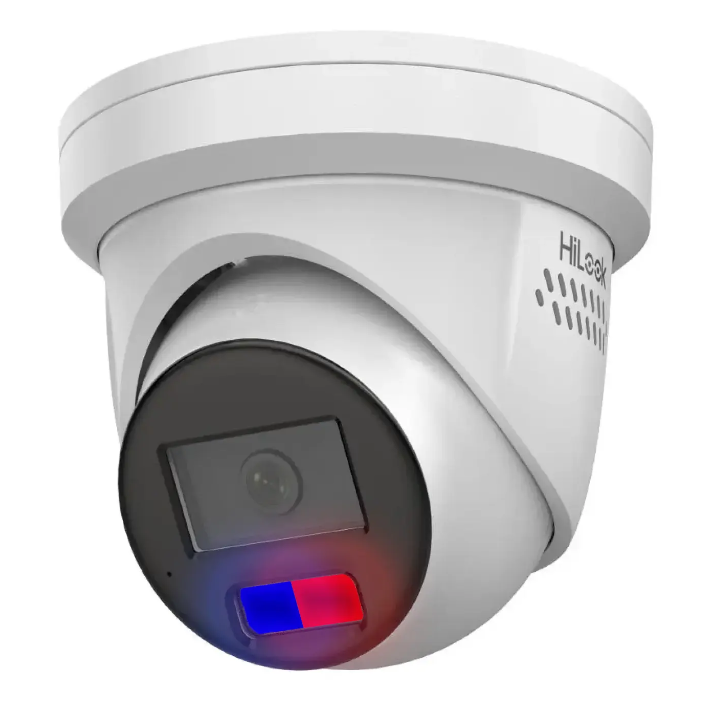

HiLook 6MP IP Pro Series All-In-One IR Camera, 2.8mm, Intellisense, Perimeter, 120dB WDR, 30m IR / White Light, POE / 12VDC, IP67, MicroSD, Built-in Mic / Speaker, Red / Blue Lights (Wall Mount: DS-1273ZJ-140, Junction Box: DS-1280ZJ-DM21)

SKU IPC-T269H-MU/SL

Notify me when back in stock

HiLook 6MP IP Pro Series All-In-One IR Camera, 2.8mm, Intellisense, Perimeter, 120dB WDR, 30m IR / White Light, POE / 12VDC, IP67, MicroSD, Built-in Mic / Speaker, Red / Blue Lights (Wall Mount: DS-1273ZJ-140, Junction Box: DS-1280ZJ-DM21)
  • Camera
  • Image Sensor1/2.4" Progressive Scan CMOS
  • Max. Resolution3200 Γ— 1800
  • Min. IlluminationColor: 0.003 Lux @ (F1.6, AGC ON),0 Lux with white light B/W: 0 Lux with IR
  • Shutter Time1/3 s to 1/100,000 s
  • Day & NightIR cut filter
  • Angle AdjustmentPan: 0Β° to 360Β°,tilt: 0Β° to 75Β°,rotate: 0Β° to 360Β°
  • Lens
  • Lens TypeFixed lens, 2.8, 4, and 6 mm optional
  • Iris TypeFixed
  • Focal Length & FOV

    2.8 mm, horizontal FOV 105Β°, vertical FOV 55Β°, diagonal FOV 127Β°;

    4 mm, horizontal FOV 78Β°, vertical FOV:38Β°, diagonal FOV 96Β°;

    6 mm, horizontal FOV 51Β°, vertical FOV 26Β°, diagonal FOV 59Β°

  • ApertureF1.6
  • Lens MountM12
  • Illuminator
  • Supplement Light TypeWhite light & IR
  • Supplement Light RangeIR Range: Up to 30m ; White light Range: Up to 30m
  • Smart Supplement LightYes
  • Video
  • Main Stream

    50 Hz: 25 fps (3200 Γ— 1800, 2688 Γ— 1520, 1920 Γ— 1080, 1280 Γ— 720)

    60 Hz: 30 fps (3200 Γ— 1800, 2688 Γ— 1520, 1920 Γ— 1080, 1280 Γ— 720)

  • Sub-Stream50 Hz: 25 fps (640 Γ— 480, 640 Γ— 360) 60 Hz: 30 fps (640 Γ— 480, 640 Γ— 360)
  • Third Stream

    50 Hz: 10 fps (1920 Γ— 1080, 1280 Γ— 720, 640 Γ— 480, 640 Γ— 360)

    60 Hz: 10 fps (1920 Γ— 1080, 1280 Γ— 720, 640 Γ— 480, 640 Γ— 360),

    *Third stream is supported under certain settings.

  • Video Compression

    Main stream: H.265+/H.265/H.264+/H.264,

    Sub-stream: H.265/H.264/MJPEG,

    Third stream: H.265/H.264 (*Third stream is supported under certain settings.)

  • Video Bit Rate32 Kbps to 16 Mbps
  • H.264 TypeBaseline Profile,Main Profile,High Profile
  • H.265 TypeMain Profile
  • Bit Rate ControlCBR,VBR
  • Scalable Video Coding (SVC)H.264 and H.265 encoding
  • Region Of Interest (ROI)1 fixed region(s) for main stream and sub-stream
  • Audio
  • Environment Noise FilteringYes
  • Audio Sampling Rate8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
  • Audio CompressionG.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC
  • Audio Bit Rate64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC)
  • Network
  • Simultaneous Live ViewUp to 6 channels
  • APIOpen Network Video Interface (Profile S, Profile G, Profile T),ISAPI,SDK
  • ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP
  • User/HostUp to 32 users 3 levels: administrator, operator, and user
  • Network StorageSupports microSD/SDHC/SDXC card (256 GB) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
  • ClientiVMS-4200,Hik-Connect
  • Web BrowserPlug-in required live view: IE 10+ Plug-in
