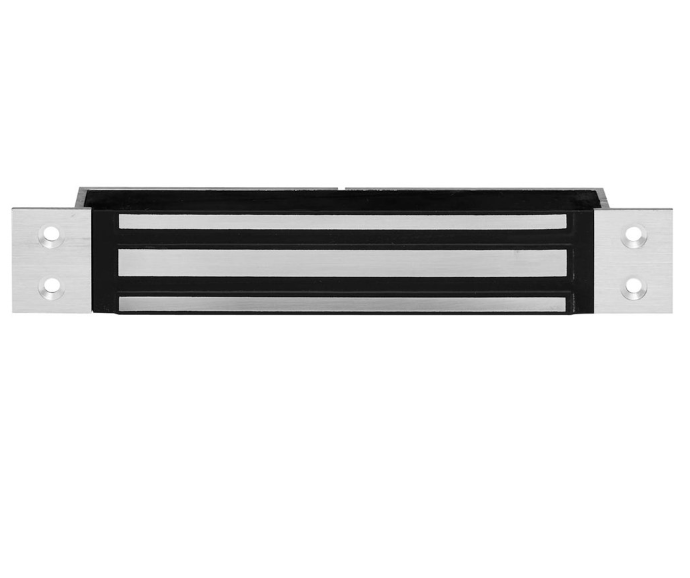

Padde Mini Mag Lock 12/24VDC Recessed Single Monitored

The Z4 Recessed Electromagnetic Locks operate with holding forces up to 280kg. Covering a range of applications these magnets are ideal for situations where the magnet needs to be recessed such as swing and sliding doors. With fixing options including wood, aluminium and steel constructions, the range caters to most needs.

The Electromagnets are available in both Monitored and Non Monitored models, using Hall-Effect monitoring on some models.

Key Features

• Fail-safe: unlocks when power is removed
• Easy installation: suitable for both new and retrofit usage
• High holding force: refer to the technical data overleaf
• Self-alignment: armature plate pivots to accommodate door drop
• Silent operation: no humming or buzzing
• Dual voltage: site selectable 12 or 24 Vdc
• Monitored versions: Hall-Effect status monitoring available on some models

Applications

• Various sliding door applications

Standards and Compliance

• CE Approved
• C-Tick Certified
