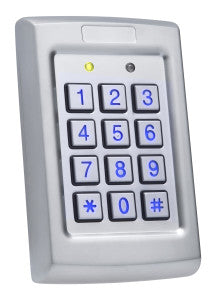

Rosslare Convertible Series Keypad Anti-Vandal Backlit, 500 User, Wiegand 26-Bit Output (3x4)

Part of the Convertible line of readers / controllers, this unit can be operated as an outdoor backlit keypad reader, which connects to any standard controller, or else it converts into a fully featured, 500-users stand-alone controller when connected to Rosslare’s PS-x5 family of intelligent power supply/relay units. This unit provides a most effective solution for indoor and outdoor access systems where PIN credentials are required. This attractive looking yet robust model features unique shiny blue illuminated metal keys on a metallic, epoxy filled, sealed housing.

• Supports 4 to 8-Digit PIN credentials
• Smooth, attractive design, with all-weather indoor and outdoor operation
• Large, highly-visible BLUE Backlit Keypad
• 2 tri-colored LEDs and an integral sounder for programming and operation
• User friendly menu, based on keypad, LED and sounder indicators
• Back and Cover Optical tamper detection and output
• Automatically recognizes Rosslare’s
• PS-x5 intelligent power supply family converting it into a 500-user stand-alone controller with secure relays
• 8 Selectable PIN transmission modes including options for Key stream, Binary, Parity, and 3×4 Matrix
• Comes with a mounting and drilling label, security screw, and tool set to prevent unauthorized opening
• 60 cm (23.6 in.) shielded interface cable
• Meets IP65 for outdoor use
