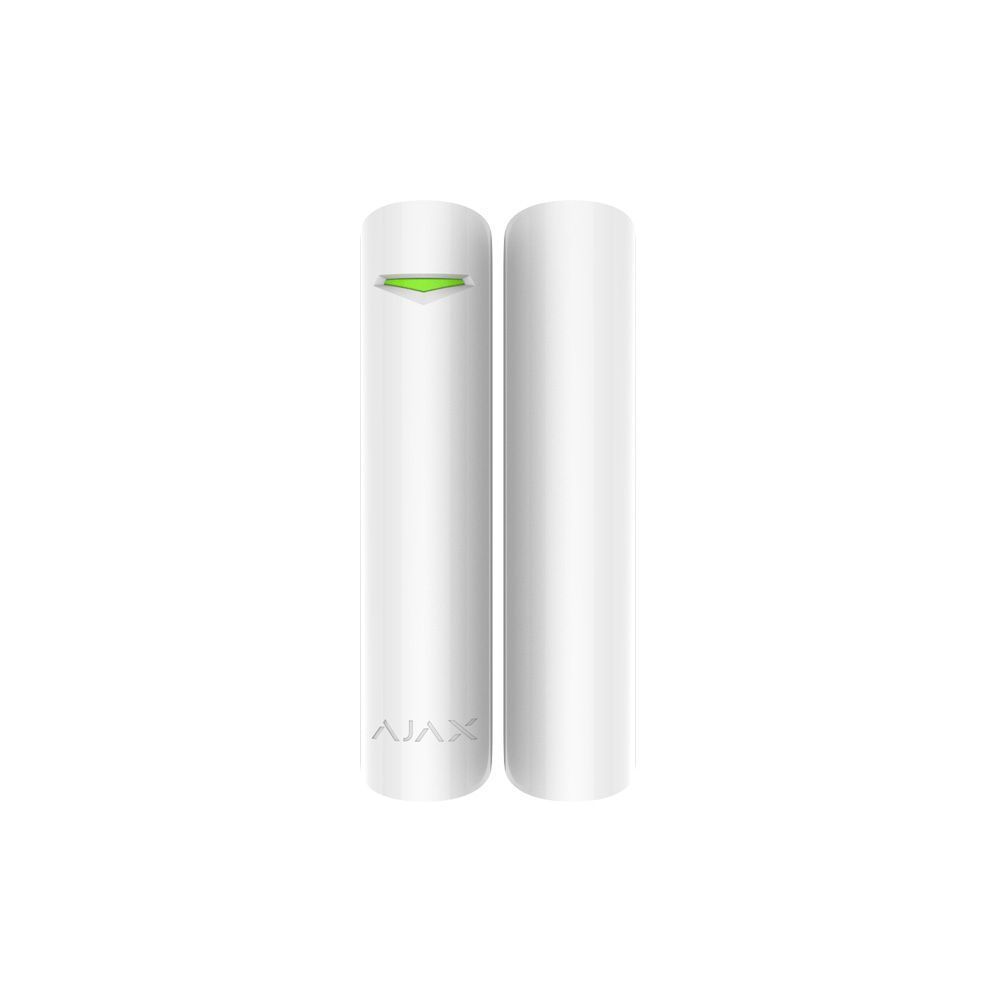

Ajax DoorProtect Plus WHITE - 2 Way Wireless Door / Window Reed Sensor With Universal Input / Shock Detector / Tilt Sensor

Classification

Combined point magnetic contact and vibration radio channel security detector

Type of detector

Wireless

Installation method

Indoors

Compatibility

Operates with all Ajax hubs, and range extenders

Sensing element

Reed switch, accelerometer

Alarm signal delivery time

0.15 s

Activation threshold

Small magnet — 1 cm

Big magnet — 2 cm

Tilt: more than 5°

Power supply

Battery: CR123A battery

Power supply voltage: 3 V

Battery life — up to 5 years

Jeweller radio technology

Communication range with central unit — up to 1,200 m in an open space

Two-way communication between devices

Operating frequencies — 868.0-868.6 MHz

Self-adjusting RF output power — up to 20 mW

Block encryption based on AES algorithm

Detector polling period — 12−300 s

Temperature sensor

Available

Operating temperature range

From -10°С to +40°С

Permissible humidity

Up to 75%

Anti-sabotage

Protection against fraud

Jamming detection

Tamper-resistant

Remote setting and testing

Yes

Dimensions

Diameter: 20 mm

Height: 90 mm

Weight

29 g

Certification

Grade 2, CE

Warranty

Replacement and repair within 24 months of the date of sale. Batteries are not covered under warranty.

Complete set

DoorProtect Plus opening detector

SmartBracket mounting panel

Two magnets

CR123A battery (pre-installed)

External contact

Installation set

User’s guide
