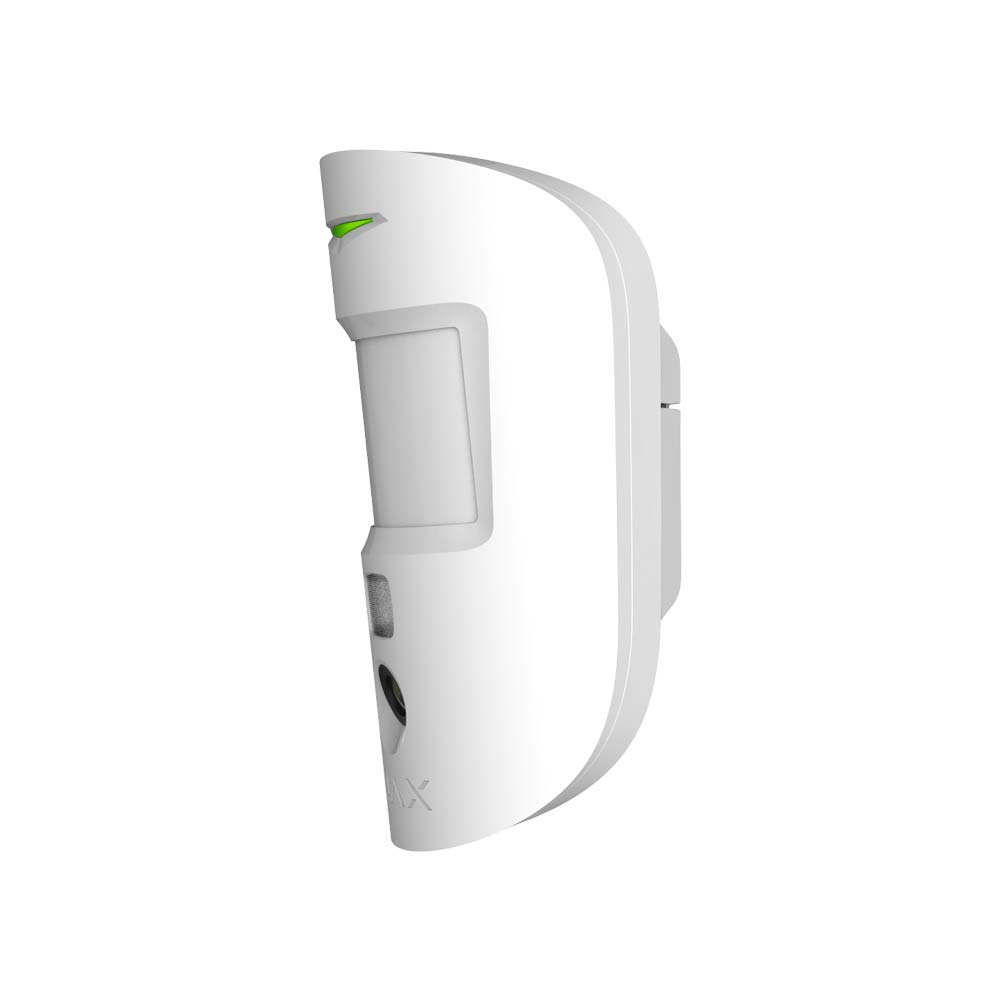

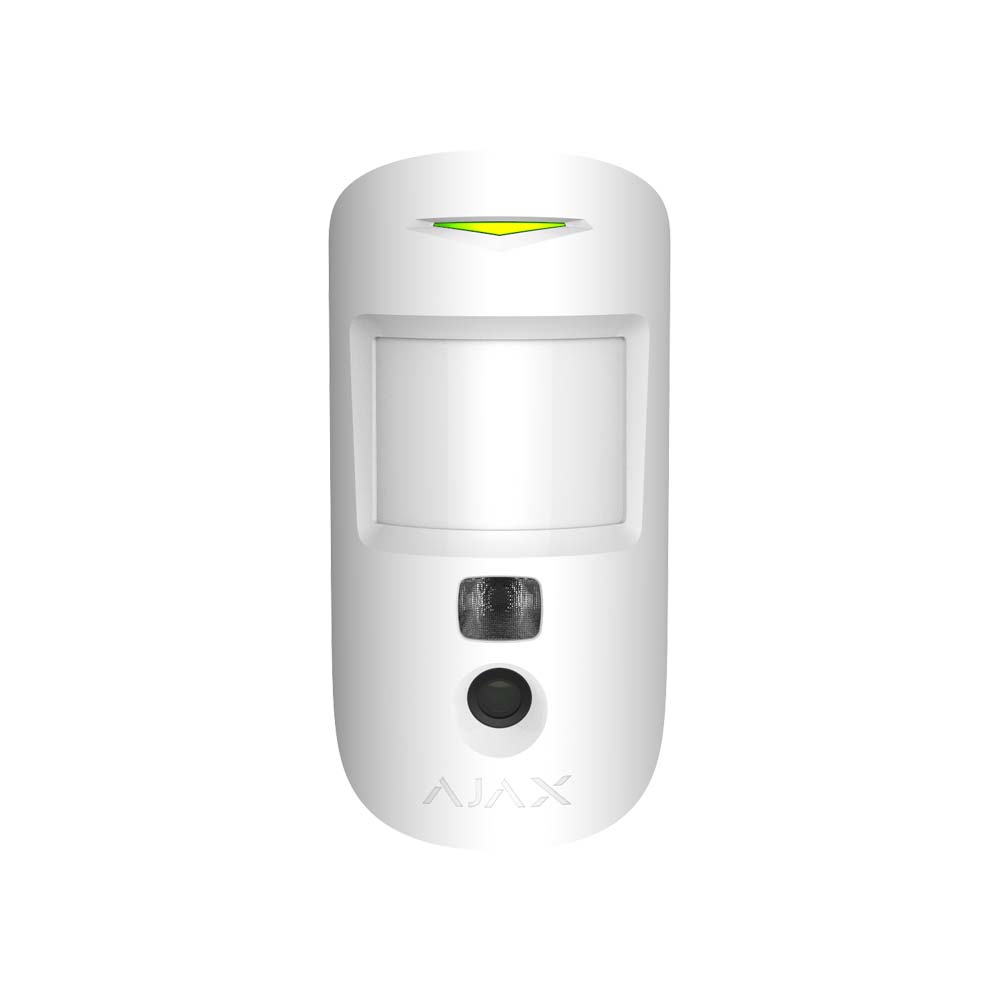

White Motion detector with a photo camera to verify alarms

  • Transmits a photograph in under 9 sec
  • Sees in the dark
  • Operates up to 4 years on the pre-installed batteries
  • Operates on a distance of up to 1700 m from the hub
  • MotionCam detector requires Hub 2 or Hub 2 Plus for operation
  • Classification

    Electro-optical combined radio channel security detector with a photo camera

    Detector type




    Motion detection distance

    Up to 12 m

    Pet immunity

    Weight: up to 20 kg

    Height: up to 50 cm


    Only with Hub 2Hub 2 Plus

    Sensing element


    Alarm signal delivery time

    0.15 sec

    Detection angles

    Horizontal — 88.5°

    Vertical — 80°

    Camera view angle


    Photo verification

    Time to deliver a photograph with default settings: up to 9 sec

    Photo quality: up to 640 × 480

    Pictures in a series: 1-5 pcs

    IR-backlight for night mode pictures



    Adjustable, 3 levels

    Recommended installation height

    2.4 m

    Power supply

    Batteries: CR123A (x2)

    Power supply voltage: 3 V

    Battery life: up to 4 years (up to 2.5 years if “Delay when entering” setting is activated)

    Jeweller radio technology

    Communication range with detectors: up to 1,700 m in the line of sight

    Two-way communication between devices

    Operating frequencies: 868.0-868.6 MHz

    Self-adjusting RF output power: up to 20 mW

    Block encryption based on AES algorithm

    Detector polling period: 12−300 s

    Frequency hopping

    Wings radio technology

    Transmission of visual alarm verifications

    Temperature sensor


    Operating temperature range

    From 0°C to +40°C (manufacture date up to June 1, 2020)


    From -10°C to +40°C (manufacture date from June 1, 2020)

    Operating humidity

    Up to 75%


    Fraud protection

    Jamming notification


    CMS compatibility

    Motion alarms are transmitted to CMSs that support SIA (DC-09) and Contact ID protocols.


    Visual alarm verifications are transmitted to the Manitou, ABsistemDC(NG),WBB, Horus, V1/F1, Kronos, eLipse, Sentinel, MASterMind, Stages and SBN CMS, and Ajax PRO Desktop app

    Remote configuration and testing


    Protection class



    135 х 70 x 60 mm


    167 g


    Replacement and repair for a period of 24 months from the date of sale. The warranty does not cover batteries.

    Complete Set

    MotionCam motion detector

    SmartBracket mounting panel

    x2 CR123A batteries (pre-installed)

    Installation kit

    Quick Start Guide


    Security Grade 2, Environmental Class II in conformity with the requirements of EN 50131
