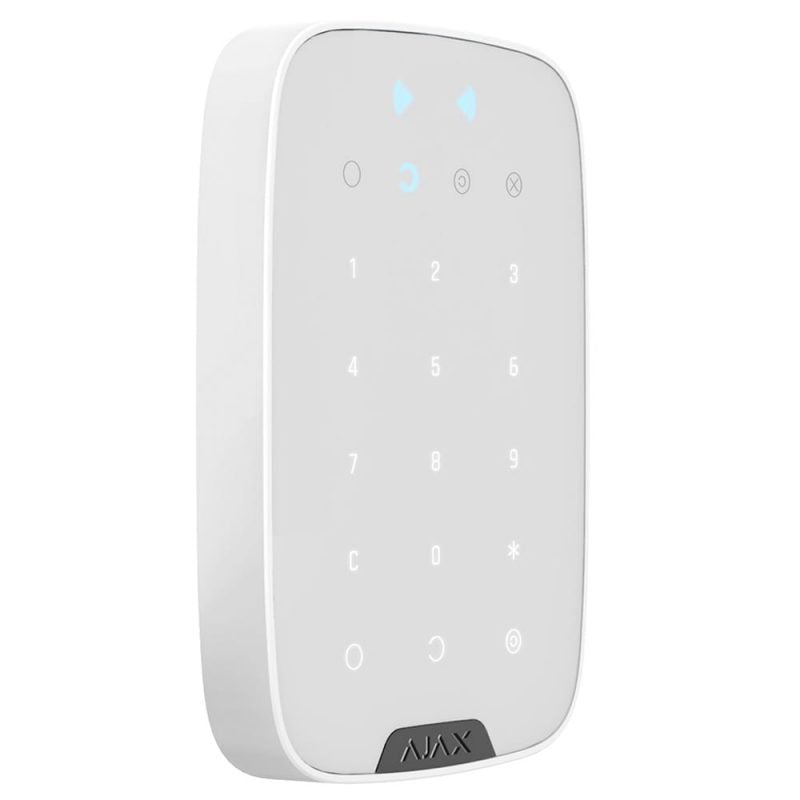

White 2 Way Wireless touch keypad supporting encrypted contactless cards and key fobs

  • support up to 200 Tag key fobs or Pass cards
  • 99 keypad access code
  • Touch-sensitive keypad
  • Personal codes
  • Event log
  • Two-way communication at a distance of up to 1,700 meters
  • 5 radio signal range extenders in a system
  • Adjustable ping interval from 12 seconds
  • KeyPad supports code types as follows:

    • Keypad Code — general code that is set up for the keypad. When used, all events are delivered to Ajax apps on behalf of the keypad.
    • User Code — personal code that is set up for users connected to the hub. When used, all events are delivered to Ajax apps on behalf of the user.
    • Keypad Access Code — set up for a person who is not registered in the system. When used, events are delivered to Ajax apps with a name associated with this code.


CompatibilityHub Plus
Hub 2
Hub 2 Plus
ReX 2
InstallationIndoor only
Keypad typeTouch-sensitive
Sensor typeCapacitive
Contactless accessDESFire EV1, EV2
ISO14443-А (13.56 MHz)
Tamper protectionYes
Code guessing protectionYes.
The keypad is locked for the time set in the settings if an incorrect code is entered three times
Protection against attempts to use not bound to the system pass/tagYes.
The keypad is locked for the time defined in the settings
Radio communication protocol with hubs and range extendersJeweller
Learn more
Radio frequency band866.0 – 866.5 MHz
868.0 – 868.6 MHz
868.7 – 869.2 MHz
905.0 – 926.5 MHz
915.85 – 926.5 MHz
921.0 – 922.0 MHz
Depends on the region of sale.
Radio signal modulationGFSK
Maximum radio signal strength6.06 mW (limit up to 20 mW)
Radio signal rangeUp to 1,700 m (without obstacles)
Learn more
Power supply4 lithium batteries AA (FR6)
Voltage 1.5V
Battery lifeUp to 3.5 years (if pass/tag reading is enabled)
Up to 4.5 years (if pass/tag reading is disabled)
Operating temperature rangeFrom -10°C to +40°C
Operating humidityUp to 75%
Dimensions165 × 113 × 20 mm
Weight267 g
Service life10 years
Warranty24 months
