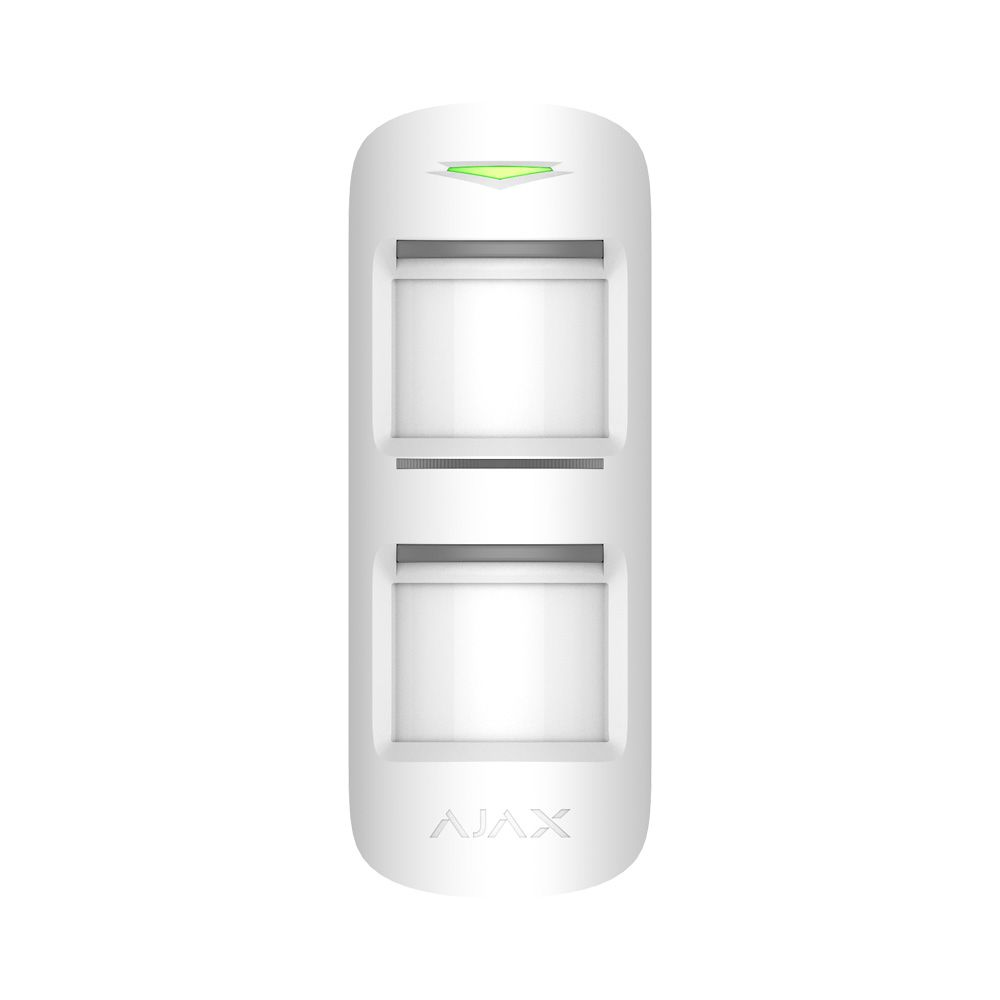

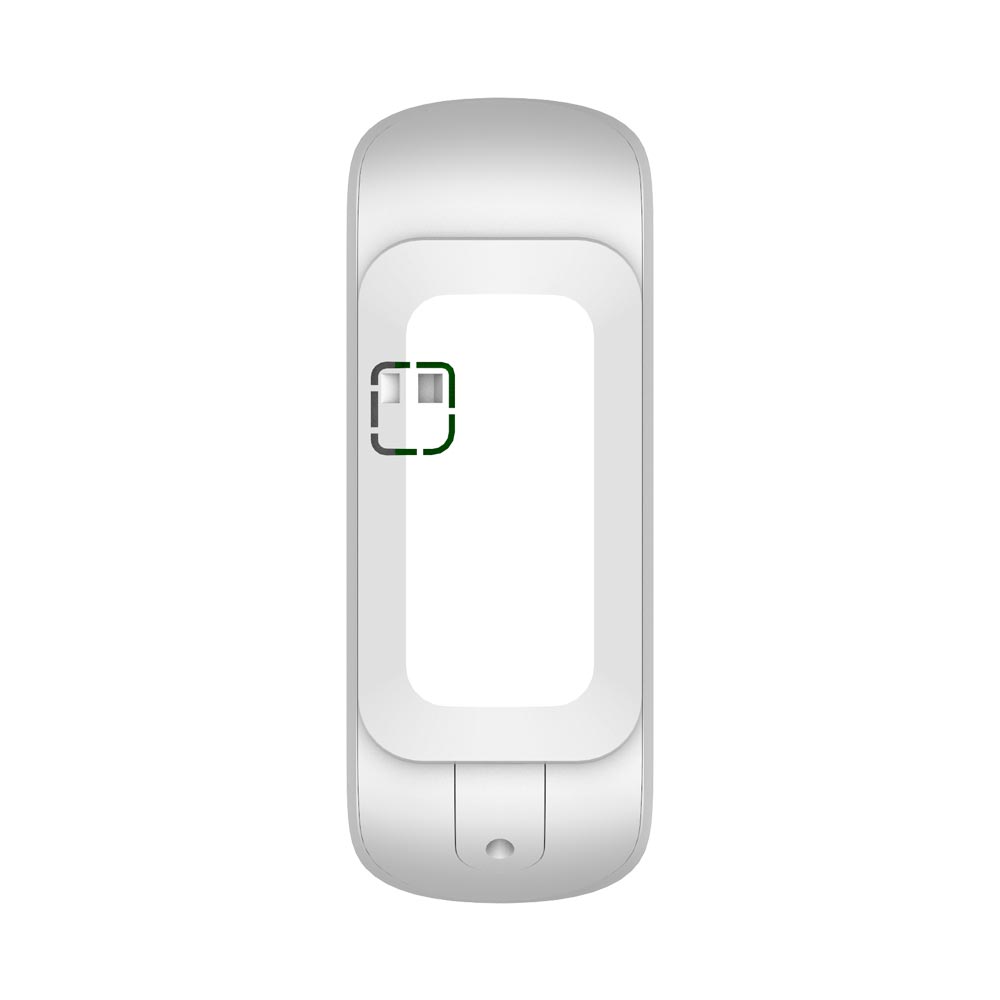

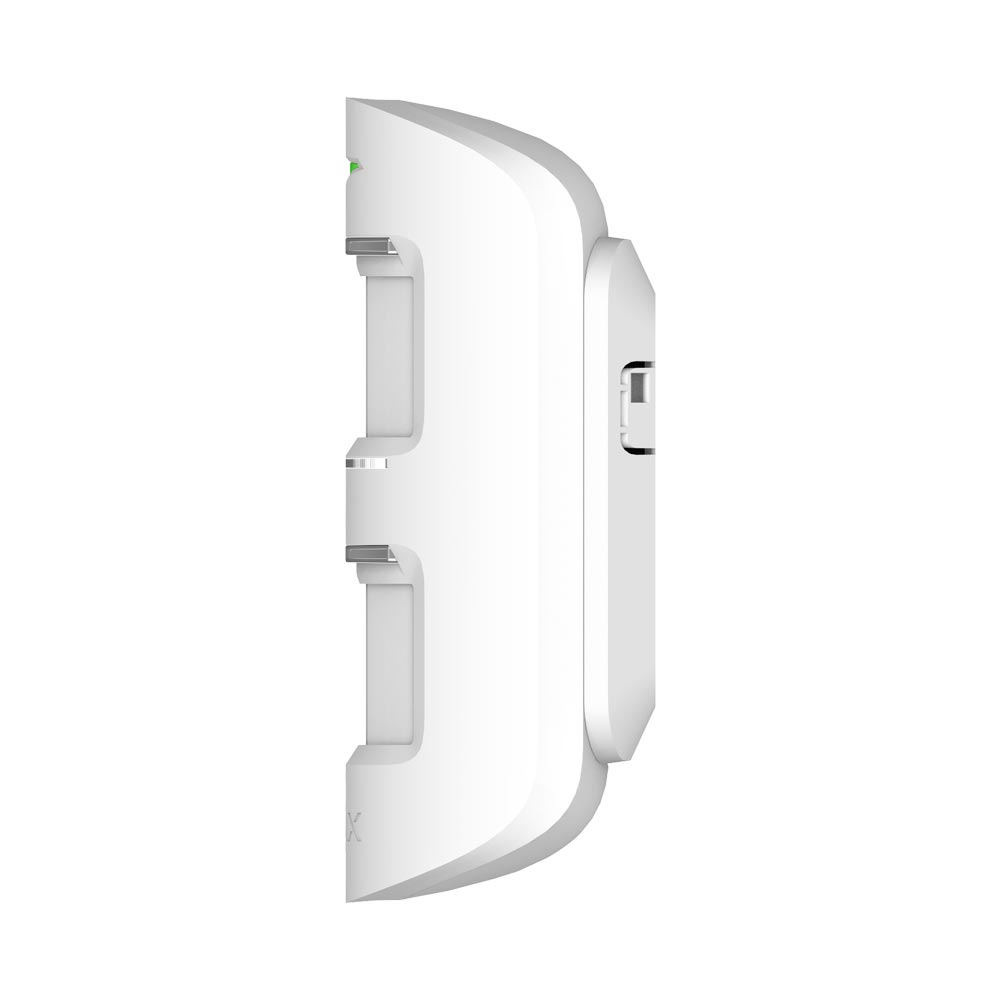

Ajax MotionProtect Outdoor WHITE - 2 Way Wireless Pet Immune Dual PIR Motion Detector With Anti-Mask /Adjustable Detection Range 3-15m

by Ajax

Notify me when back in stock

Wireless outdoor motion detector with an advanced anti-masking system and pet-immunity

  • Intelligent anti-masking system
  • Two-way communication at a distance of up to1,700 meters
  • Alarms delivered in0.15 seconds
  • Adjustable ping interval from12 seconds
  • Resists the heat up to +60°С
  • Withstands the cold up to −25°С
  • Protected from dust and water jets IP55
  • Up to 5 years of battery life


Sensing elementPIR sensor, 2 pcs
Detection angle, horizontal90°
Time for motion detectionFrom 0.3 to 2 m/s
Motion detection distanceAdjustable, 3–15 m when the detector is

installed at 1 m height
Protection against maskingYes
Pet ignoring functionYes, height up to 80 cm when the detector is installed at 1 m height

Why motion detectors react to animals and how to avoid it >
Protection against false triggeringYes, algorithmic analysis
Radio communication protocolJeweller

Learn more
Radio frequency band866.0 – 866.5 MHz

868.0 – 868.6 MHz

868.7 – 869.2 MHz

905.0 – 926.5 MHz

915.85 – 926.5 MHz

921.0 – 922.0 MHz

Depends on the region of sale.
CompatibilityOperates only with all Ajax hubs, and radio signal range extenders
Maximum radio signal powerUp to 20 mW
Radio signal modulationGFSK
Radio signal rangeUp to 1,700 m (where there are no obstacles)

Learn more
Power supply2 × CR123A, 3 V
Battery lifeUp to 5 years
External power5 – 28 V DC, 200 mA
Body protection levelIP55
Anti-tamper switchYes
Installation methodOutdoors/indoors
Operating temperature rangeFrom -25°С to +60°С
Operating humidityUp to 95%
AccessoriesHood for MotionProtect Outdoor
Overall dimensions183 × 70 × 65 mm
Weight322 g
Service life10 years
