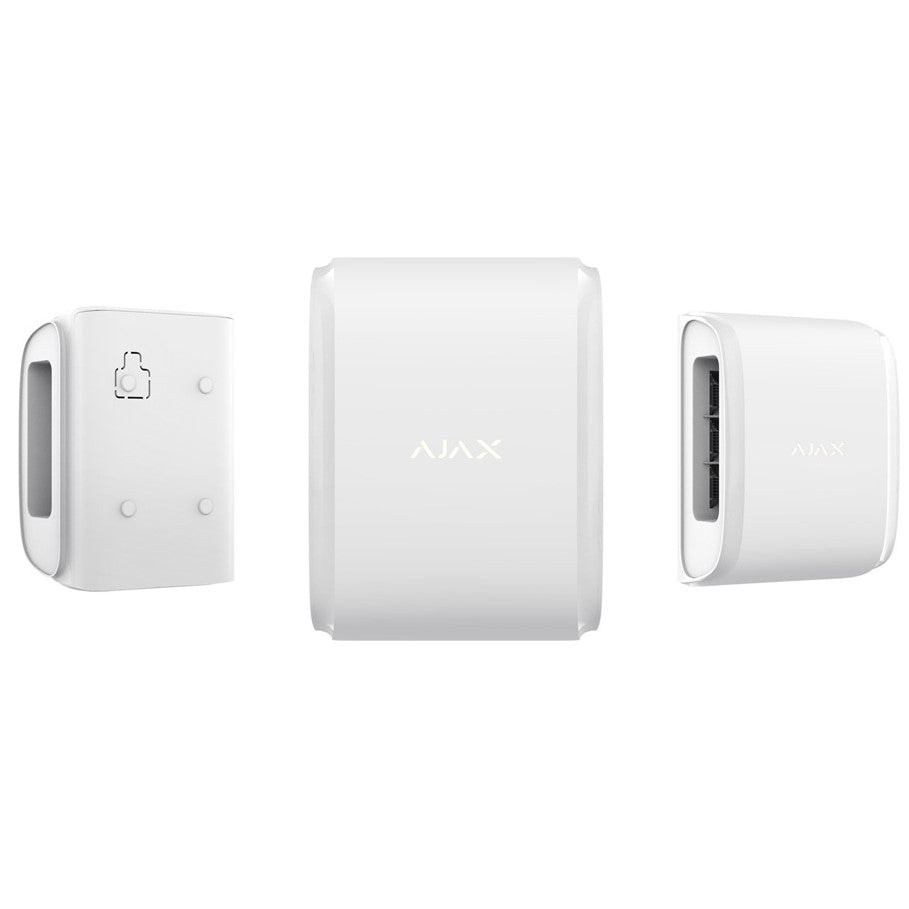

Ajax DualCurtain Outdoor WHITE - 2 Way Wireless Bi-Directional Curtain PIR Motion Detector With Adjustable Beam Direction / Detection Range 2 x 4-15m

by Ajax
SKU DUALCURTAINOUTDOOR-W

Notify me when back in stock

Please Contact Zankap

Classification

Electro-optical radio channel security detector

Type of detector

Wireless

Installation method

Indoors/outdoors

Compatibility

Hub Plus, Hub 2, Hub 2 Plus, ReX with OS Malevich 2.11 and higher

Sensing element

4 x PIR sensor

Motion detection distance

From 4 to 15 m (depending on settings) for each optical system

Protection against false alarms

Available, alarm in case of detection of two sensors and ELSA software algorithm

Alarm signal delivery time

0.15 s

Detection angle

Horizontal — 6°

Vertical — depending on settings

Time for motion detection

From 0.3 to 2 m/s

Sensitivity

Adjustable, 3 levels

Power supply

2 x CR123А batteries, 3 V

Battery life

Up to 4 years

Temperature sensor

Available

Jeweller radio technology

Communication range with the central unit — up to 1,700 m line-of-sight

Two-way communication between devices

Operating frequencies — 868.0−868.6 MHz

Self-adjusting RF output power — up to 20 mW

Block encryption based on AES algorithm

Detector polling period — 12–300 s

Frequency hopping

Operating temperature range

From −25°С to +60°С

Permissible humidity

Up to 95%

Protection class

IP54

Anti-sabotage

Protection against forgery

Jamming detection

Tamper-resistant

Dimensions

174 x 123 x 88 mm

Weight

615 g

Warranty

24 months from the date of sale

Complete set

DualCurtain Outdoor motion detector

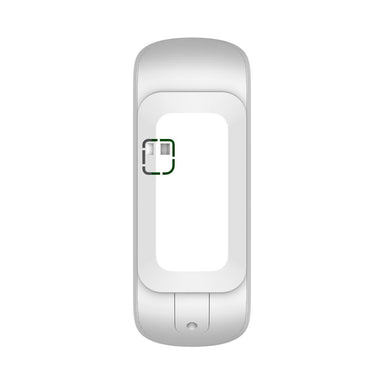

SmartBracket mounting panel

2 x CR123A batteries (pre-installed)

Installation kit

User's guide
