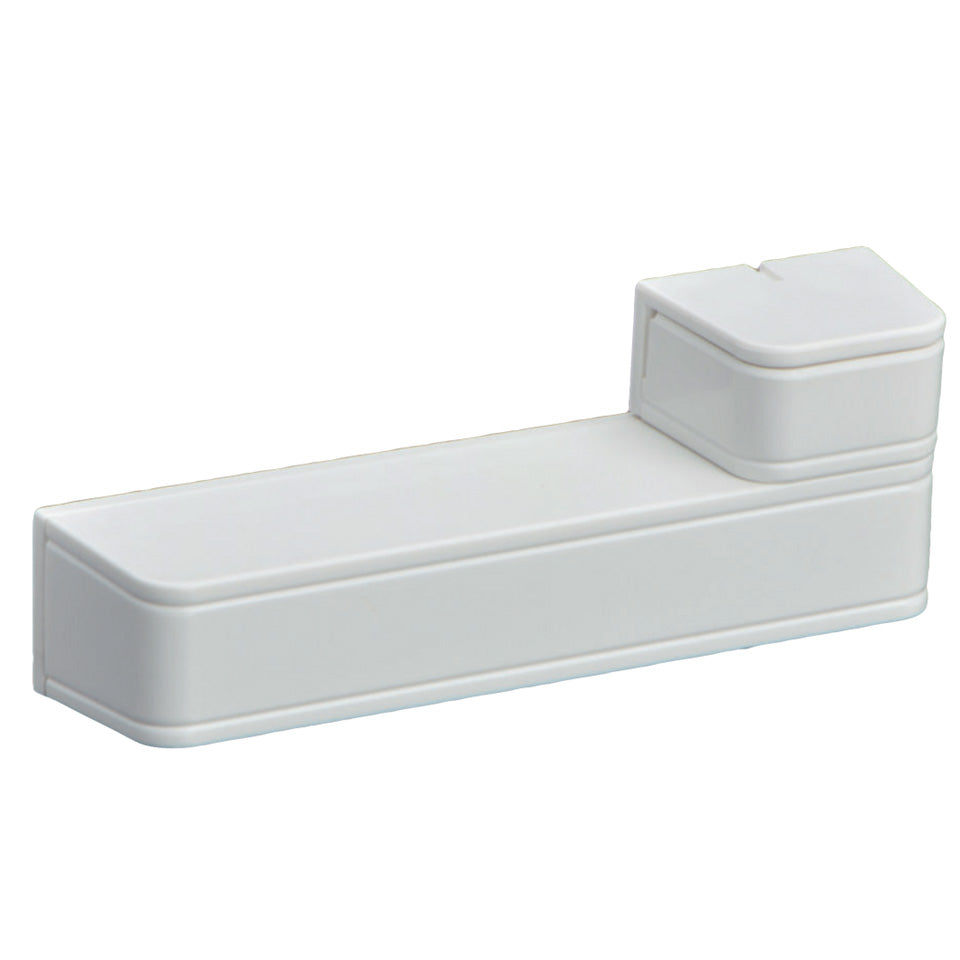

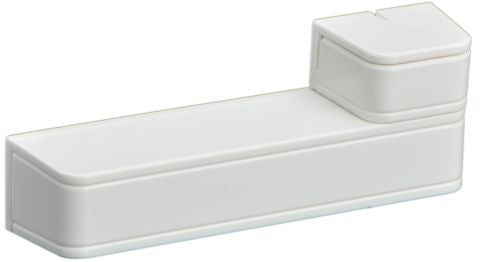

RADION Wireless surface mount contact  |  F.01U.253.611

  • Internal magnetic reed switch contact
  • Operational up to 5 years using a single, user replaceable Lithium AAA battery
  • Supervised for low-battery, cover-tamper, and removal from mounting surface tamper conditions
Dimensions:Transmitter19.5 mm x 82.55 mm x 12.8 mm (0.76 in x 3.25 in x 0.50 in)
Dimensions:Magnet18.5 mm x 24.5 mm x 12.5 mm (0.72 in x 0.97 in x 0.49 in)
Power/Voltage:1.5 VDC
Battery type:AAA Lithium
Battery life:Up to 5 years
Temperature:Functional range: -10゚C to +49゚(+14゚F to +120゚F) EN 50130-5 Class II only: -10゚C to 40゚C (+14゚F to +104゚F
EnvironmentComplies with EN50130-5 Class II
Relative Humidity:Up to 93% non-condensing
Cover and Wall Tamper Switch:Transmits a tamper switch signal when the detector is removed from its base, or the unit is pulled away from the ceiling.
Frequency:433.42 MHz
Use:Intended for indoor use.
