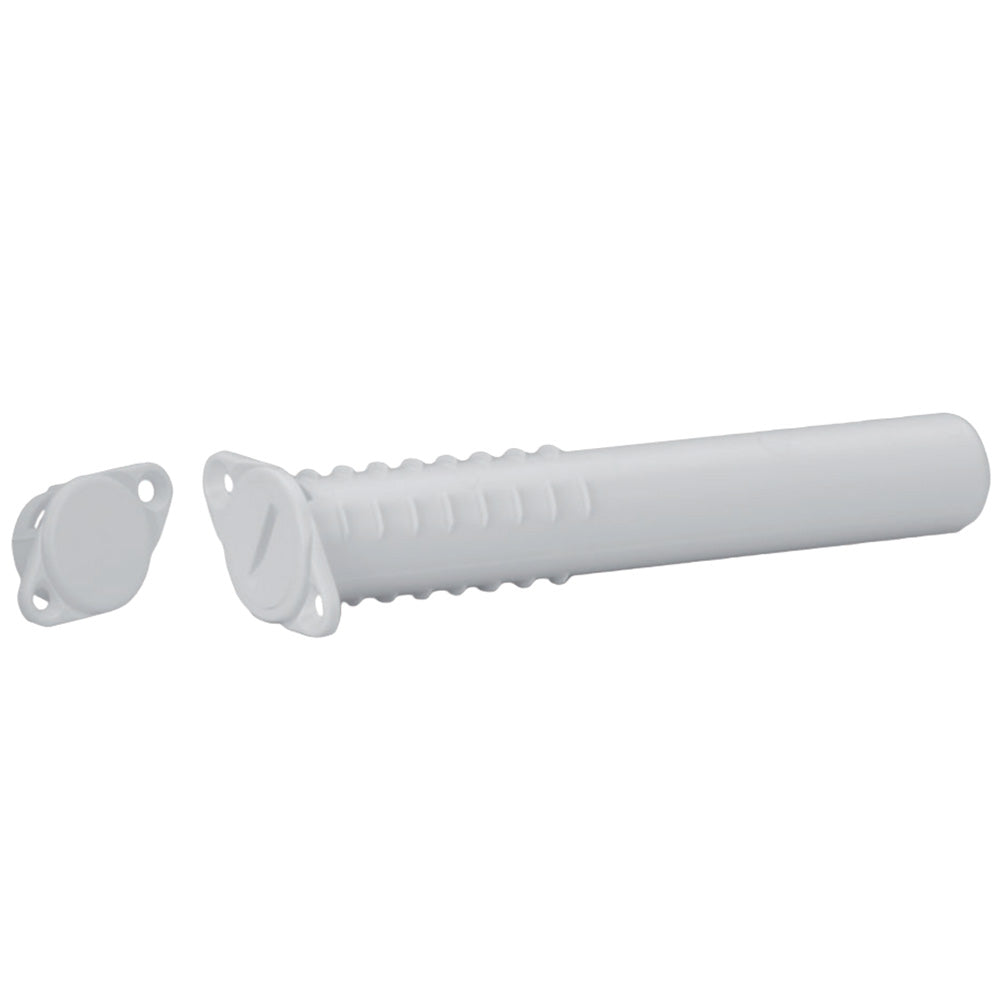

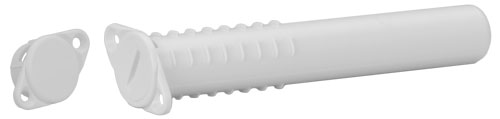

RADION Wireless Recessed Door / Window Contact

  • Self-contained transmitter with magnetic reed switch contact
  • Concealed, recessed mounting in doors or windows for unobtrusive security
  • Operational up to 5 years using a single, user replaceable Lithium AAA battery
  • Supervised for low-battery and cover-tamper conditions
Transmitter dimensions15.4 mm x 104.7 mm (0.60 in x 4.2 in)
Magnet dimensions22 mm x 28 mm x 15 mm (0.87 in x 1.10 in x 0.59 in)
Power/voltage1.5 VDC
Battery typeAAA Lithium
Battery lifeUp to 5 years
TemperatureFunctional range: -10゚C to +49゚(+14゚F to +120゚F) EN 50130-5 Class II only: -10゚C to 40゚C (+14゚F to +104゚F
EnvironmentComplies with EN50130-5 Class II
Relative humidityUp to 93% non-condensing
Cover tamper detectionTransmits a tamper switch signal when the cover is removed from the detector.
Frequency433.42 MHz
UseIntended for indoor use.
