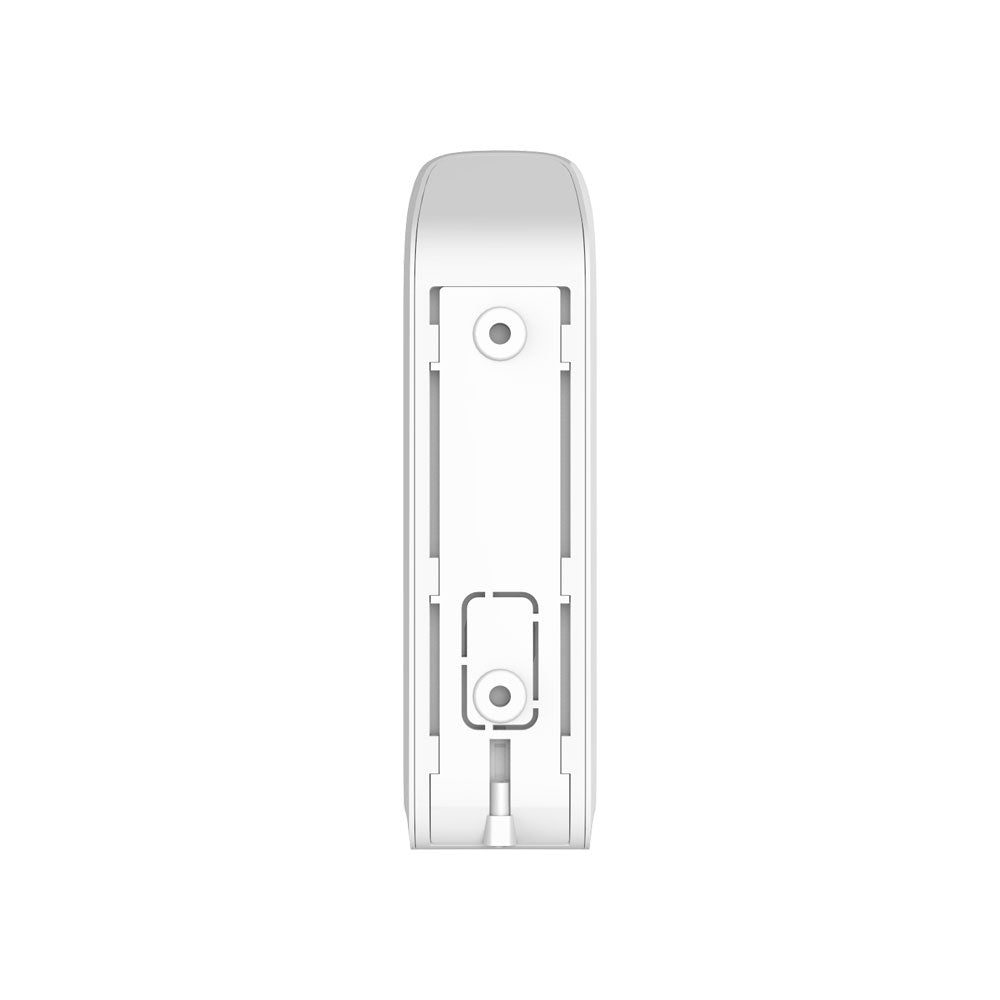

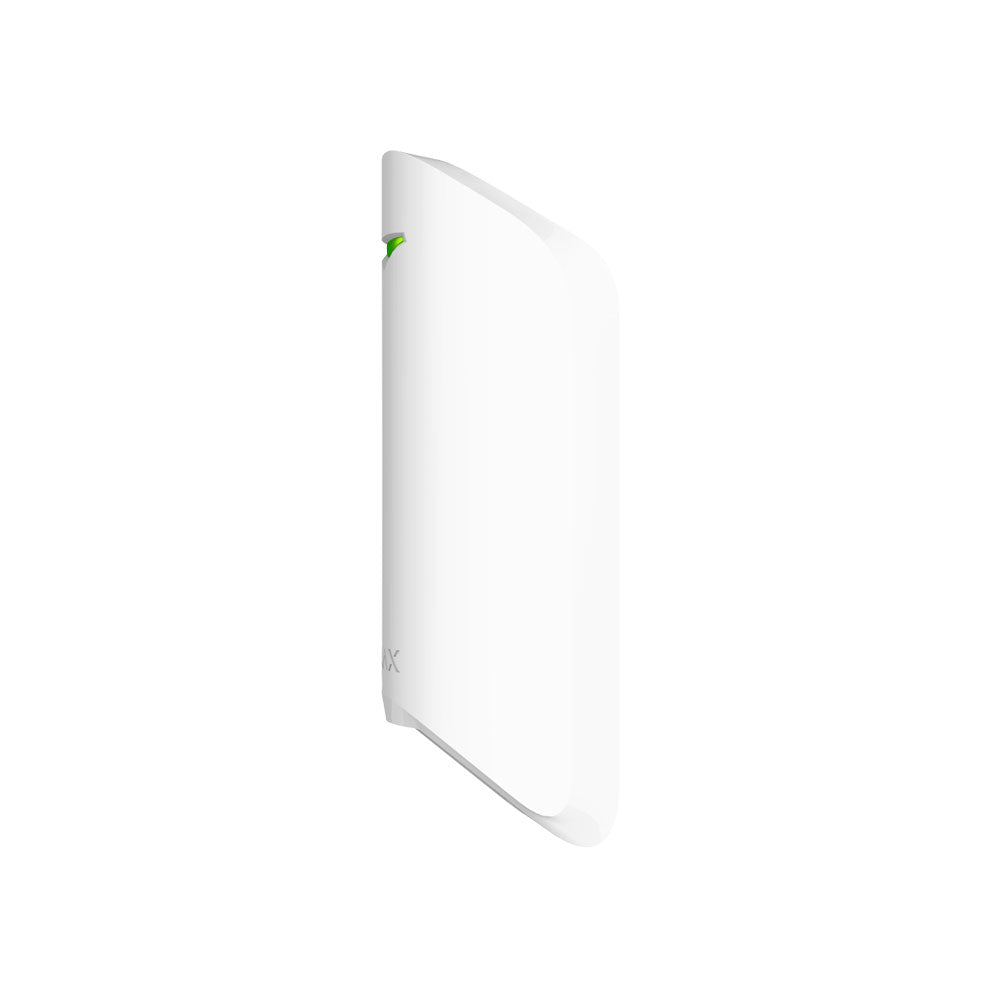

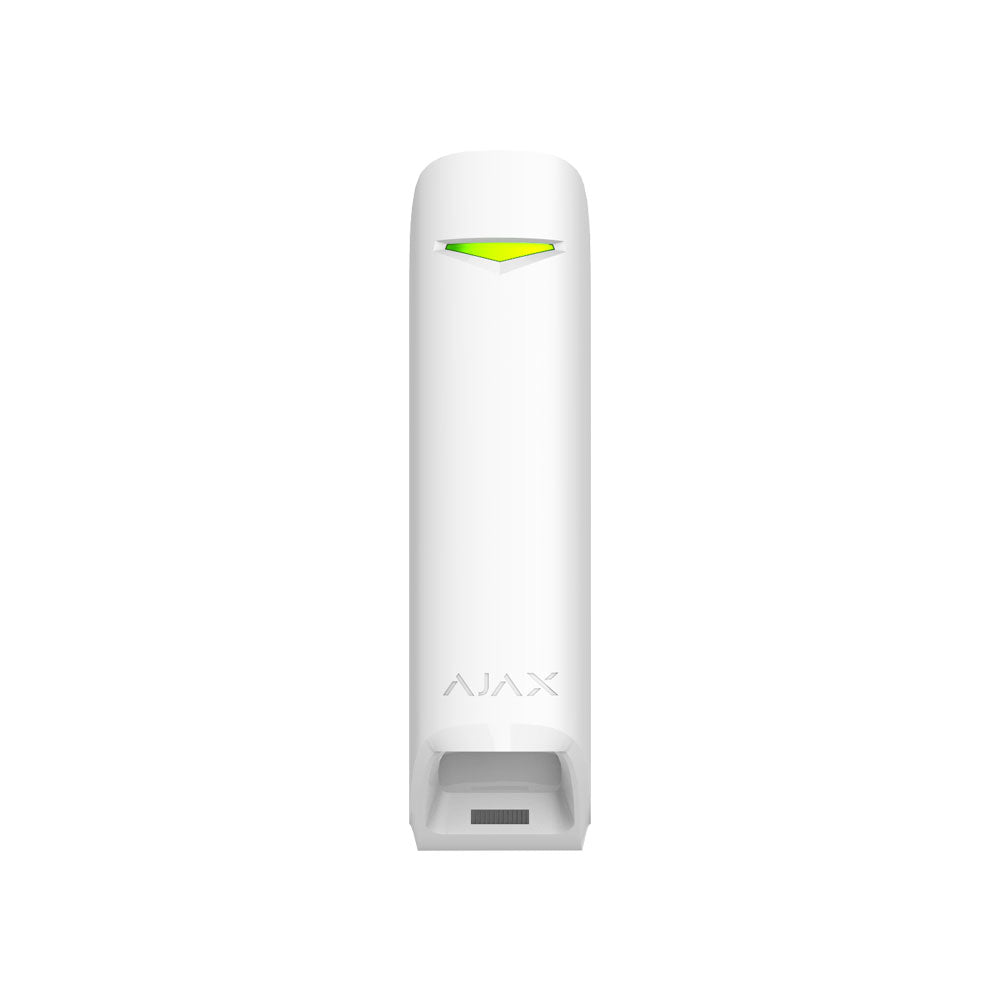

Ajax MotionProtect Curtain WHITE - 2 Way Wireless Indoor Curtain PIR Motion Detector, Adjustable Detection Range 6-15m

by Ajax

Notify me when back in stock

White 2 Way Wireless indoor narrow beam curtain PIR Motion Detector

  • Protects windows, doors, and valuables
  • Detects motion with a range of up to 15 meters
  • Works up to 3 years on the pre-installed battery
  • Transmits alarms at a distance of up to 1,700 meters away from the hub


SensorPIR sensor, 2 pcs
Detection anglesHorizontal — 6°; vertical — 90°
Time for motion detectionFrom 0.3 to 2 m/s
PlacementIndoor only
Motion detection rangeUp to 15/13/11 m (up to 8/7/6 m with Correlation Signal Processing enabled depending on sensitivity settings)
False alarm reductionAvailable — Correlation Signal Processing
Tamper ProtectionAvailable — detector body detachment and damage
Radio communication protocolJeweller
Learn more
Radio frequency band866.0 – 866.5 MHz
868.0 – 868.6 MHz
868.7 – 869.2 MHz
905.0 – 926.5 MHz
915.85 – 926.5 MHz
921.0 – 922.0 MHz
Depends on the region of sale.
CompatibilityOperates only with all Ajax hubs, and radio signal range extenders
RF signal strengthUp to 20 mW
Radio signal modulationGFSK
Radio signal rangeUp to 1700 m line-of-sight
Power supply1 battery CR123A, 3 V
Battery lifeUp to 3 years
Installation methodIndoors only
Operating temperature rangeFrom -10°С to +40°С
Protection classIP54
Overall dimensions134 × 44 × 34 mm
Weight118 g
Service life10 years
