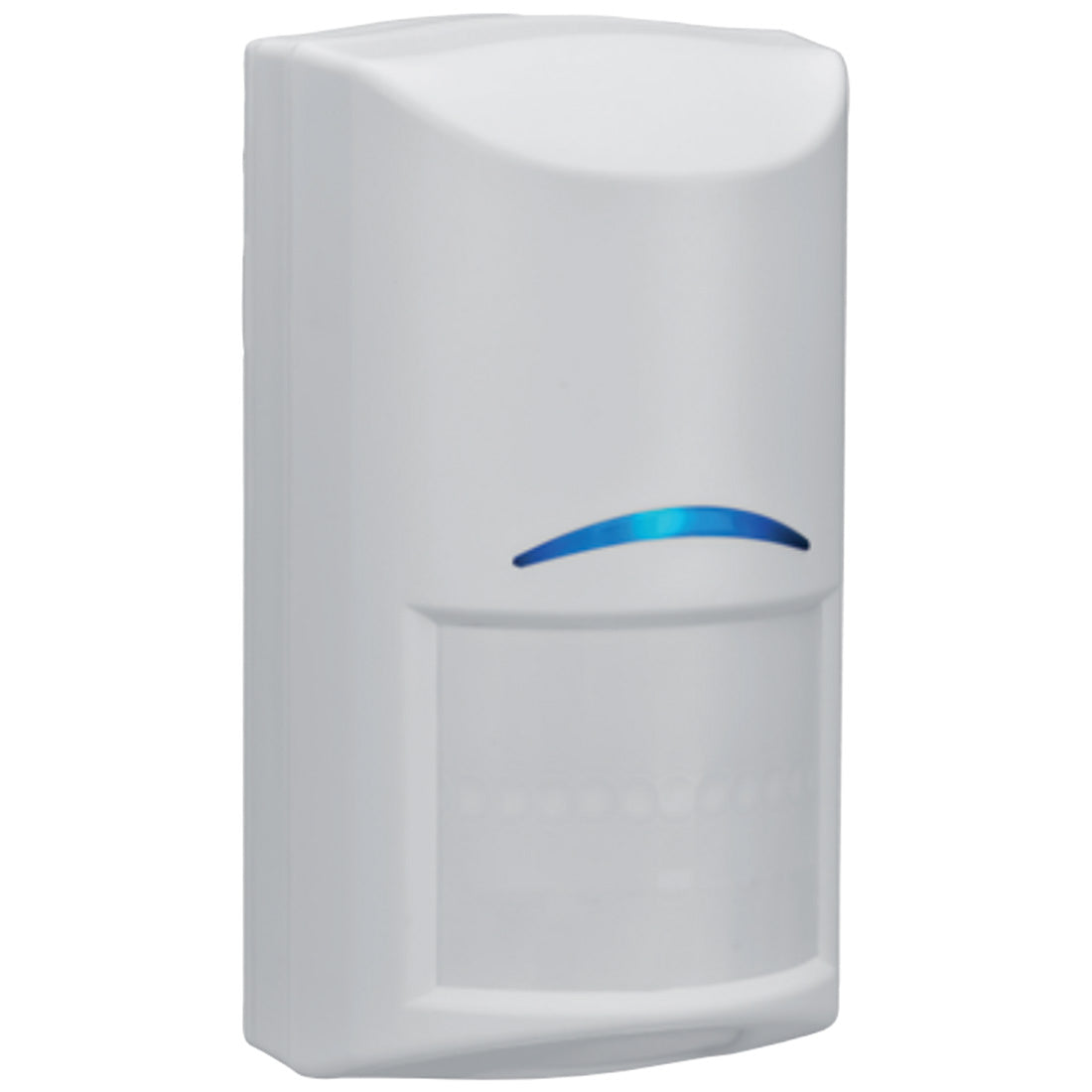

RADION TriTech Wireless motion detector, 11m (35ft)  |  F.01U.383.422

  • 11 m x 11 m (35 ft x 35 ft) coverage
  • Pet Immunity up to 45 kg (100 lb)
  • Includes battery life extension feature
  • Draft and insect immunity
  • Supervised for low-battery, cover-tamper, and removal from mounting surface tamper conditions
  • Operational up to 5 years using 4 user replaceable AA Alkaline Batteries
Dimensions:138 mm x 72 mm x 64 mm (5.5 in x 2.8 in x 2.5 in)
Internal Coverage Pointability:Vertical: -4゚ to -10゚
Alarm IndicatorBlue LED for TriTech alarms Green LED for microwave detection Red LED for PIR detection
Sensitivity Selection:Field selectable for standard or intermediate sensitivity.
Power/Voltage:Four AA Alkaline batteries, 1.5 VDC (1.5 VDC x 4 batteries = 6 VDC total)
Battery life:Up to 5 years
Temperature:Functional range: -10゚C to +49゚(+14゚F to +120゚F)
Relative Humidity:Up to 93% non-condensing
Cover and Wall Tamper Switch:Transmits a tamper switch signal when the unit is removed from its base, or the mounting surface.
Frequency:433.42 MHz
Use:Intended for indoor use.
